Datasheet MRF8P29300HR6, MRF8P29300HSR6 (NXP) - 7
| Fabricante | NXP |
| Descripción | RF Power Field Effect Transistors N-Channel Enhancement-Mode Lateral MOSFETs |
| Páginas / Página | 16 / 7 — TYPICAL CHARACTERISTICS. Figure 12. MTTF versus Junction Temperature. … |
| Formato / tamaño de archivo | PDF / 1.1 Mb |
| Idioma del documento | Inglés |
TYPICAL CHARACTERISTICS. Figure 12. MTTF versus Junction Temperature. MRF8P29300HR6 MRF8P29300HSR6
Línea de modelo para esta hoja de datos
MRF8P29300H
MRF8P29300HS
Versión de texto del documento

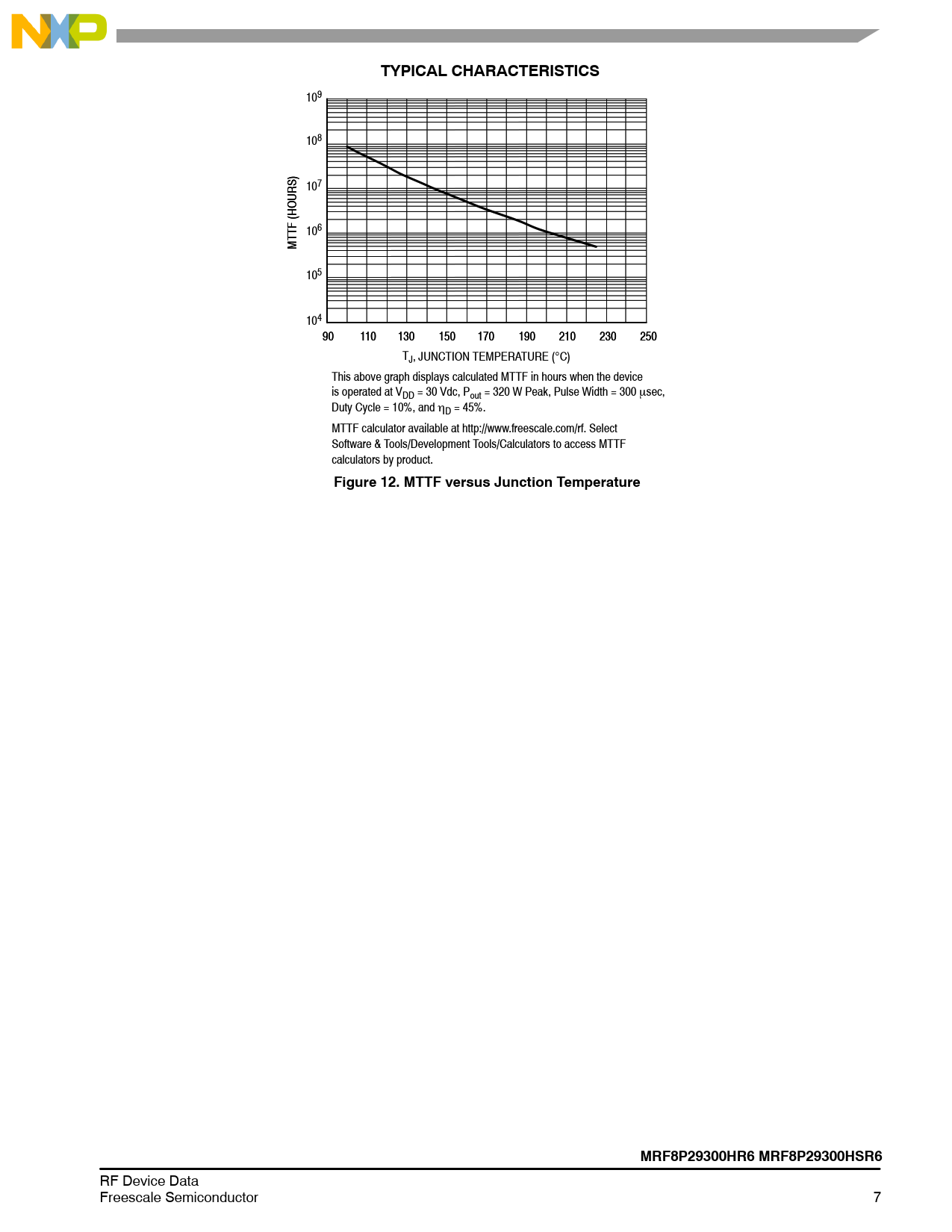

TYPICAL CHARACTERISTICS
109 108 RS) 107 (HOU 106 MTTF 105 104 90 11 1 0 1 130 150 170 190 210 230 250 TJ, JUNCTION TEMPERATURE (°C) This above graph displays calculated MTTF in hours when the device is operated at VDD = 30 Vdc, Pout = 320 W Peak, Pulse Width = 300 μsec, Duty Cycle = 10%, and ηD = 45%. MTTF calculator available at http://www.freescale.com/rf. Select Software & Tools/Development Tools/Calculators to access MTTF calculators by product.
Figure 12. MTTF versus Junction Temperature MRF8P29300HR6 MRF8P29300HSR6
