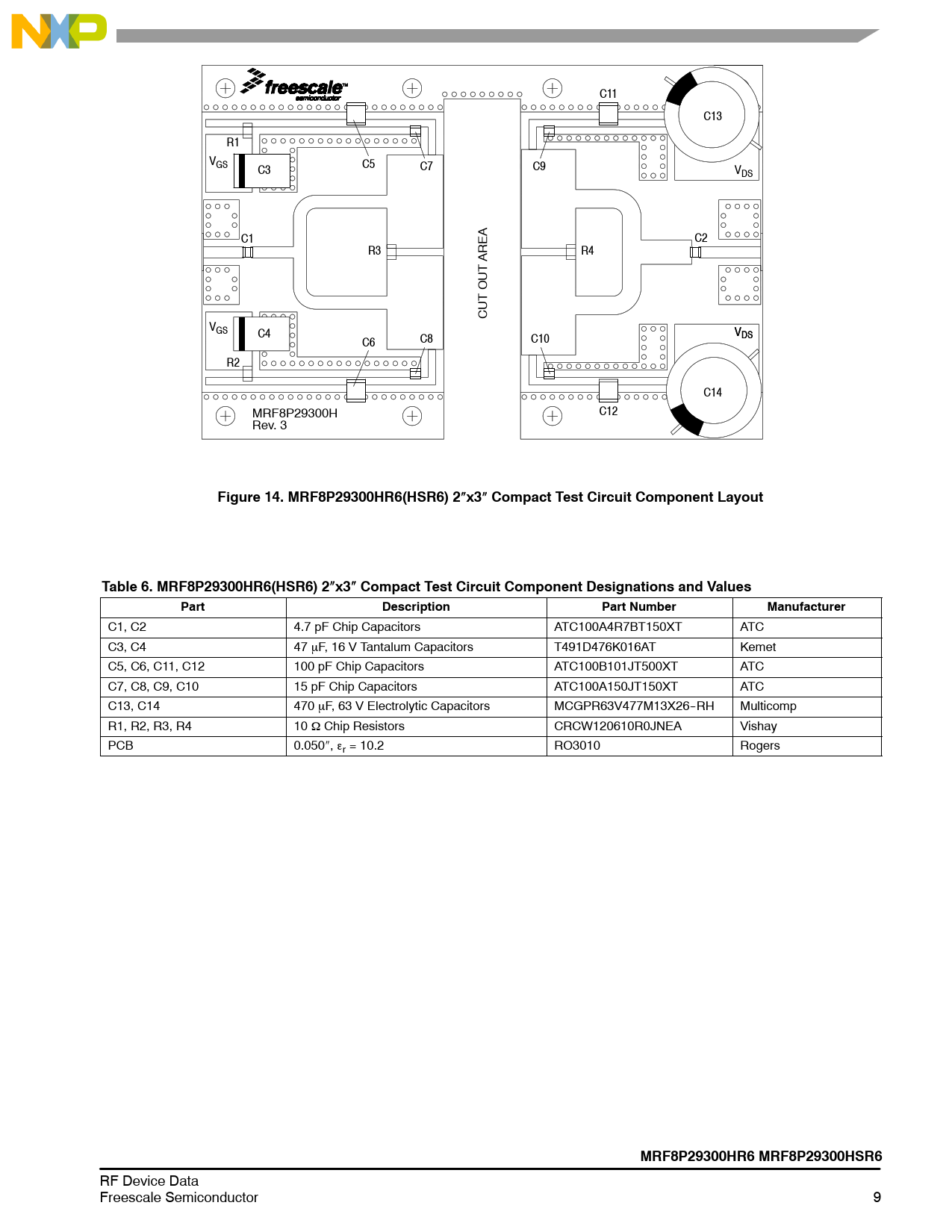

Figure 14. MRF8P29300HR6(HSR6) 2. Compact Test Circuit Component Layout. Table 6. MRF8P29300HR6(HSR6) 2
Línea de modelo para esta hoja de datos
MRF8P29300H
MRF8P29300HS
Versión de texto del documento
C11 C13 R1 VGS C5 C7 C3 C9 VDS C1 C2 R3 REA A R4 OUT CUT VGS C4 C8 V C6 DS C10 R2 C14 MRF8P29300H C12 Rev. 3
Figure 14. MRF8P29300HR6(HSR6) 2
″
x3
″
Compact Test Circuit Component Layout Table 6. MRF8P29300HR6(HSR6) 2
″
x3
″
Compact Test Circuit Component Designations and Values Part Description Part Number Manufacturer
C1, C2 4.7 pF Chip Capacitors ATC100A4R7BT150XT ATC C3, C4 47 μF, 16 V Tantalum Capacitors T491D476K016AT Kemet C5, C6, C11, C12 100 pF Chip Capacitors ATC100B101JT500XT ATC C7, C8, C9, C10 15 pF Chip Capacitors ATC100A150JT150XT ATC C13, C14 470 μF, 63 V Electrolytic Capacitors MCGPR63V477M13X26- RH Multicomp R1, R2, R3, R4 10 Ω Chip Resistors CRCW120610R0JNEA Vishay PCB 0.050″, εr = 10.2 RO3010 Rogers
MRF8P29300HR6 MRF8P29300HSR6
RF Device Data Freescale Semiconductor 9
Figure 14. MRF8P29300HR6(HSR6) 2
″
x3
″
Compact Test Circuit Component Layout Table 6. MRF8P29300HR6(HSR6) 2
″
x3
″
Compact Test Circuit Component Designations and Values Part Description Part Number Manufacturer
C1, C2 4.7 pF Chip Capacitors ATC100A4R7BT150XT ATC C3, C4 47 μF, 16 V Tantalum Capacitors T491D476K016AT Kemet C5, C6, C11, C12 100 pF Chip Capacitors ATC100B101JT500XT ATC C7, C8, C9, C10 15 pF Chip Capacitors ATC100A150JT150XT ATC C13, C14 470 μF, 63 V Electrolytic Capacitors MCGPR63V477M13X26- RH Multicomp R1, R2, R3, R4 10 Ω Chip Resistors CRCW120610R0JNEA Vishay PCB 0.050″, εr = 10.2 RO3010 Rogers
MRF8P29300HR6 MRF8P29300HSR6
RF Device Data Freescale Semiconductor 9
