Datasheet BCX42 (Infineon)
| Fabricante | Infineon |
| Descripción | NPN Silicon AF and Switching Transistor |
| Páginas / Página | 7 / 1 — BCX42. PNP Silicon AF and Switching Transistor. Type. Marking. Pin … |
| Formato / tamaño de archivo | PDF / 539 Kb |
| Idioma del documento | Inglés |
BCX42. PNP Silicon AF and Switching Transistor. Type. Marking. Pin Configuration. Package. Maximum Ratings Parameter. Symbol. Value. Unit
Línea de modelo para esta hoja de datos
Versión de texto del documento

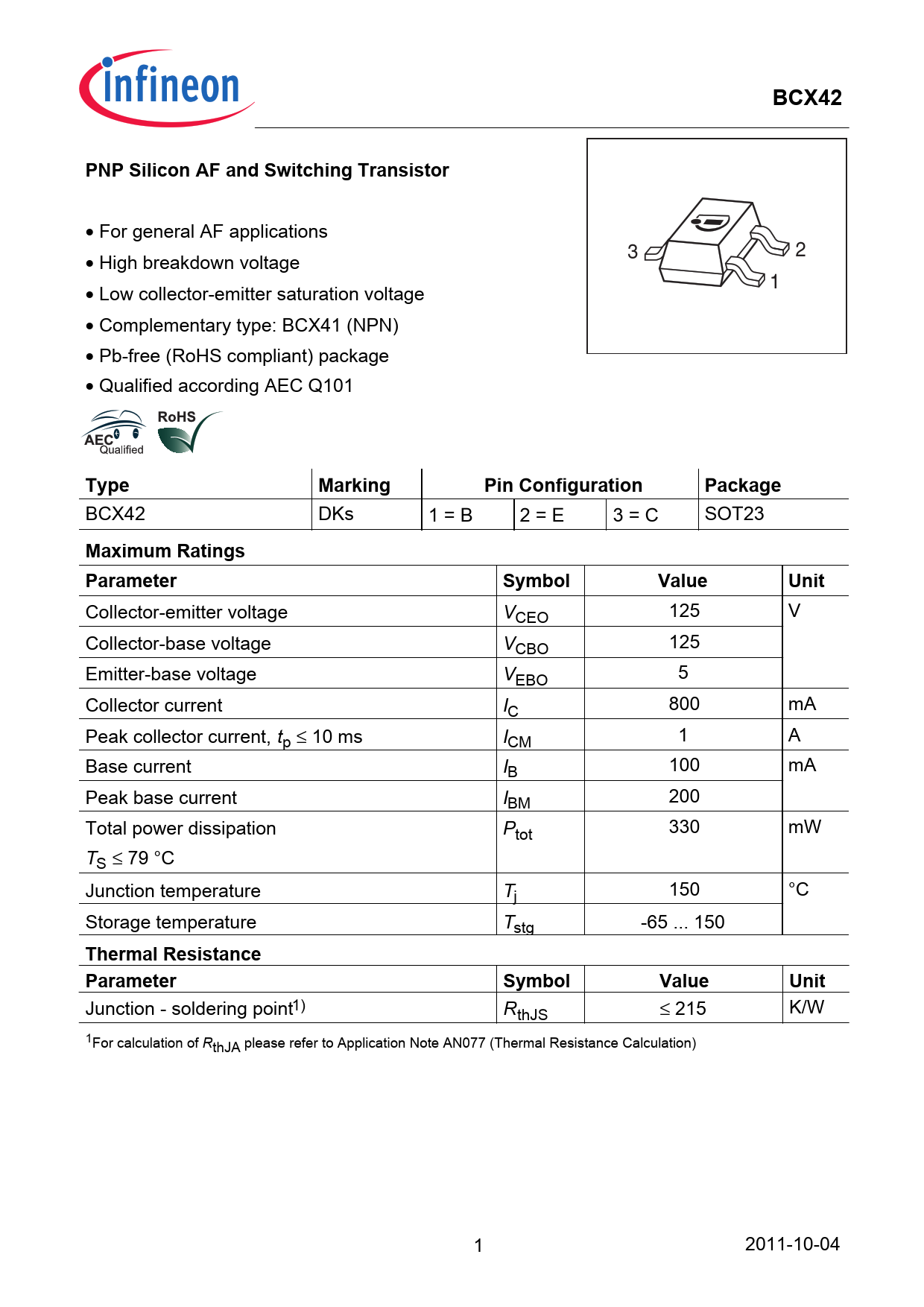

BCX42 PNP Silicon AF and Switching Transistor
• For general AF applications 3 2 • High breakdown voltage 1 • Low collector-emitter saturation voltage • Complementary type: BCX41 (NPN) • Pb-free (RoHS compliant) package • Qualified according AEC Q101
Type Marking Pin Configuration Package
BCX42 DKs 1 = B 2 = E 3 = C SOT23
Maximum Ratings Parameter Symbol Value Unit
Collector-emitter voltage VCEO 125 V Collector-base voltage VCBO 125 Emitter-base voltage VEBO 5 Collector current IC 800 mA Peak collector current, tp ≤ 10 ms ICM 1 A Base current IB 100 mA Peak base current IBM 200 Total power dissipation Ptot 330 mW TS ≤ 79 °C Junction temperature Tj 150 °C Storage temperature Tstg -65 ... 150
Thermal Resistance Parameter Symbol Value Unit
Junction - soldering point1) RthJS ≤ 215 K/W 1For calculation of RthJA please refer to Application Note AN077 (Thermal Resistance Calculation) 1 2011-10-04
• For general AF applications 3 2 • High breakdown voltage 1 • Low collector-emitter saturation voltage • Complementary type: BCX41 (NPN) • Pb-free (RoHS compliant) package • Qualified according AEC Q101
Type Marking Pin Configuration Package
BCX42 DKs 1 = B 2 = E 3 = C SOT23
Maximum Ratings Parameter Symbol Value Unit
Collector-emitter voltage VCEO 125 V Collector-base voltage VCBO 125 Emitter-base voltage VEBO 5 Collector current IC 800 mA Peak collector current, tp ≤ 10 ms ICM 1 A Base current IB 100 mA Peak base current IBM 200 Total power dissipation Ptot 330 mW TS ≤ 79 °C Junction temperature Tj 150 °C Storage temperature Tstg -65 ... 150
Thermal Resistance Parameter Symbol Value Unit
Junction - soldering point1) RthJS ≤ 215 K/W 1For calculation of RthJA please refer to Application Note AN077 (Thermal Resistance Calculation) 1 2011-10-04
