Datasheet AP4310A (Diodes) - 7
| Fabricante | Diodes |
| Descripción | Dual Op Amp and Voltage Reference |
| Páginas / Página | 8 / 7 — A Product Line of. Diodes Incorporated. AP4310A. Suggested Pad Layout. … |
| Formato / tamaño de archivo | PDF / 504 Kb |
| Idioma del documento | Inglés |
A Product Line of. Diodes Incorporated. AP4310A. Suggested Pad Layout. (1). Package Type: SO-8. www.diodes.com
Línea de modelo para esta hoja de datos
Versión de texto del documento

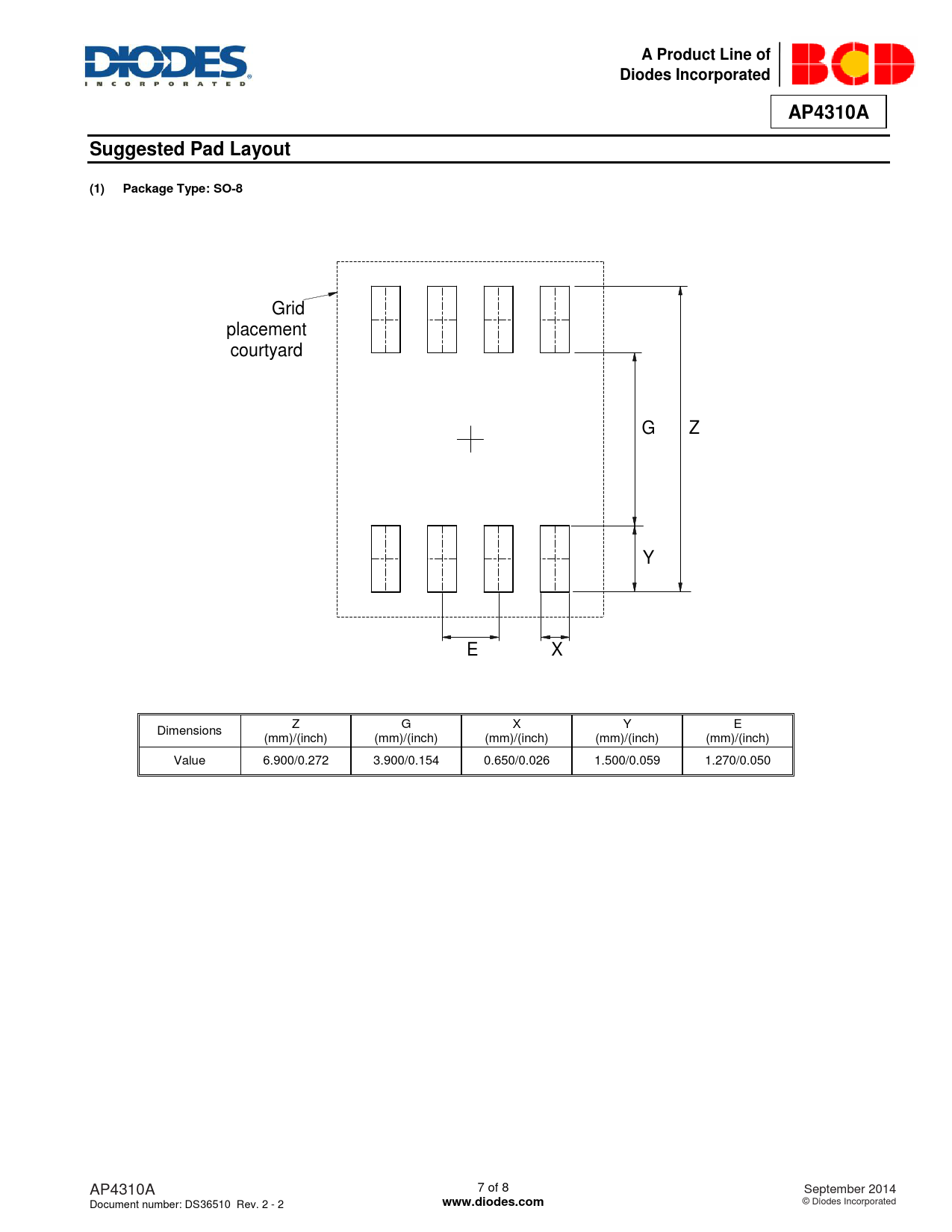

A Product Line of Diodes Incorporated AP4310A Suggested Pad Layout (1) Package Type: SO-8
Grid placement courtyard G Z Y E X Z G X Y E Dimensions (mm)/(inch) (mm)/(inch) (mm)/(inch) (mm)/(inch) (mm)/(inch) Value 6.900/0.272 3.900/0.154 0.650/0.026 1.500/0.059 1.270/0.050
AP4310A 7 of 8 September 2014 Document number: DS36510 Rev. 2 - 2
www.diodes.com
© Diodes Incorporated
Grid placement courtyard G Z Y E X Z G X Y E Dimensions (mm)/(inch) (mm)/(inch) (mm)/(inch) (mm)/(inch) (mm)/(inch) Value 6.900/0.272 3.900/0.154 0.650/0.026 1.500/0.059 1.270/0.050
AP4310A 7 of 8 September 2014 Document number: DS36510 Rev. 2 - 2
