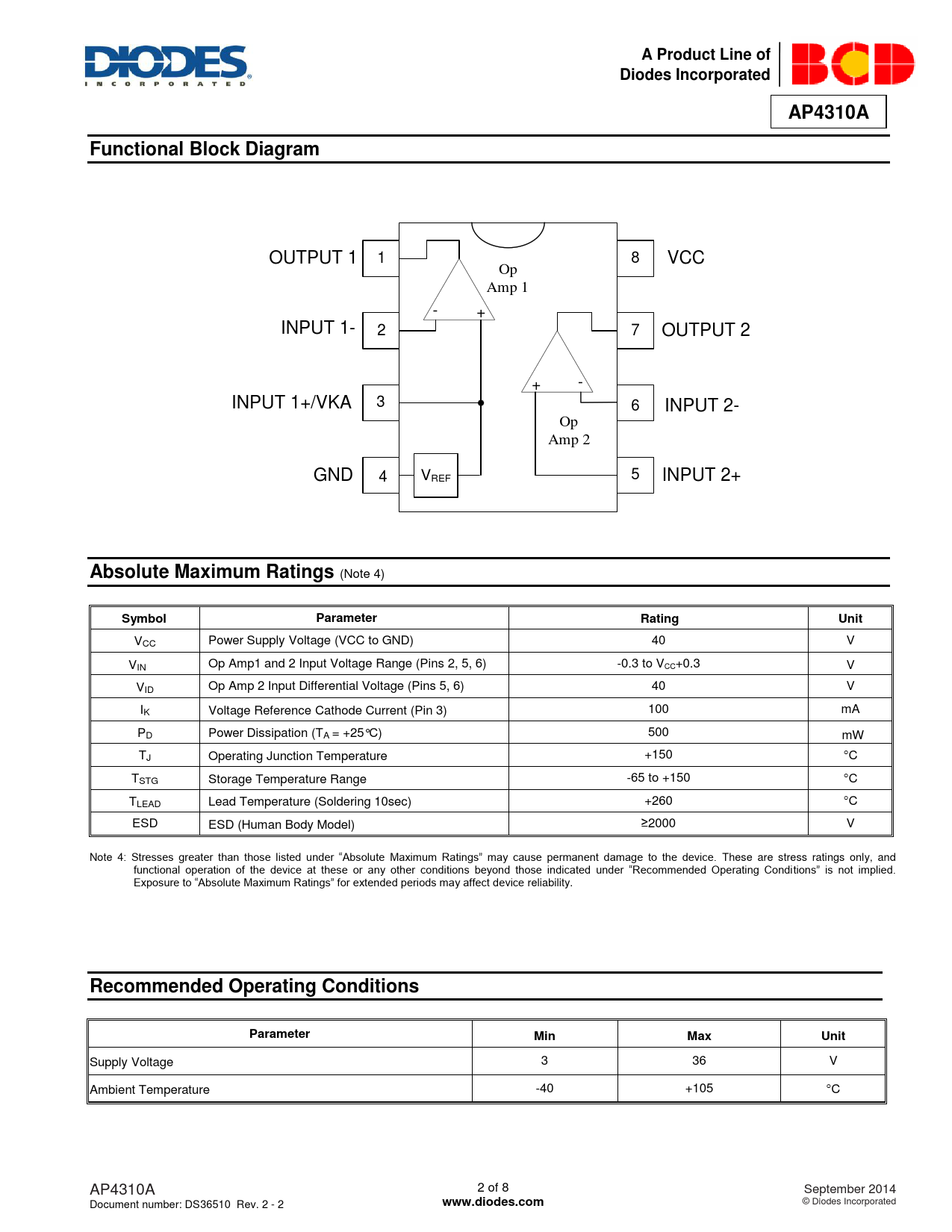

A Product Line of Diodes Incorporated AP4310A Functional Block Diagram
OUTPUT 1 1 8 VCC Op Amp 1 - + INPUT 1- 2 7 OUTPUT 2 - + INPUT 1+/VKA 3 6 INPUT 2- Op Amp 2 GND 4 VREF 5 INPUT 2+
Absolute Maximum Ratings
(Note 4)
Symbol Parameter Rating Unit
VCC Power Supply Voltage (VCC to GND) 40 V VIN

Op Amp1 and 2 Input Voltage Range (Pins 2, 5, 6)

-0.3 to VCC+0.3 V VID Op Amp 2 Input Differential Voltage (Pins 5, 6) 40 V IK Voltage Reference Cathode Current (Pin 3) 100 mA PD Power Dissipation (TA = +25°C) 500 mW TJ Operating Junction Temperature +150 C TSTG Storage Temperature Range -65 to +150 C TLEAD Lead Temperature (Soldering 10sec) +260 C ESD ESD (Human Body Model) ≥2000 V Note 4: Stresses greater than those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under “Recommended Operating Conditions” is not implied. Exposure to “Absolute Maximum Ratings” for extended periods may affect device reliability.
Recommended Operating Conditions Parameter Min Max Unit
Supply Voltage 3 36 V Ambient Temperature -40 +105 C AP4310A 2 of 8 September 2014 Document number: DS36510 Rev. 2 - 2
