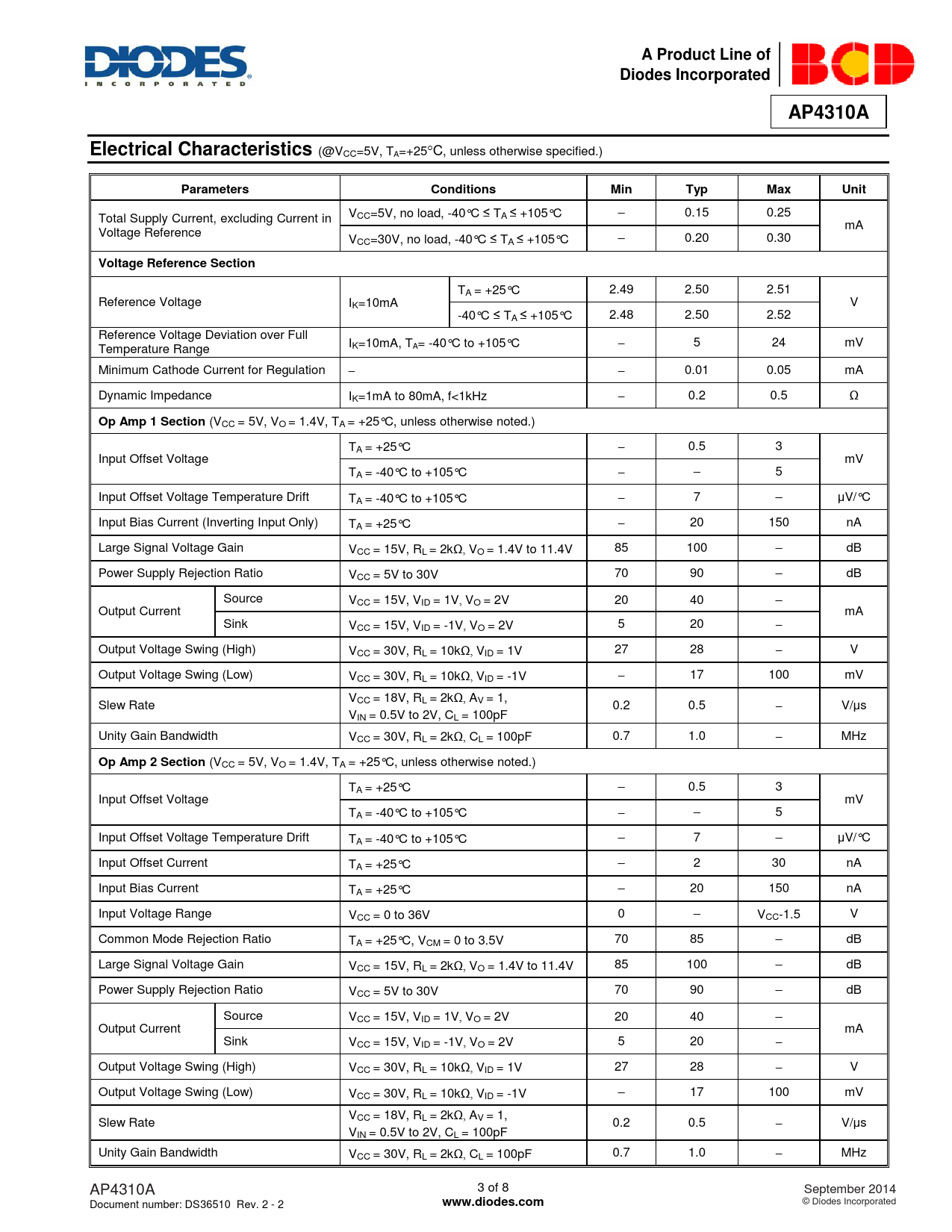

A Product Line of Diodes Incorporated AP4310A Electrical Characteristics
(@VCC=5V, TA=+25C, unless otherwise specified.)
Parameters Conditions Min Typ Max Unit
Total Supply Current, excluding Current in VCC=5V, no load, -40°C ≤ TA ≤ +105°C – 0.15 0.25 mA Voltage Reference VCC=30V, no load, -40°C ≤ TA ≤ +105°C – 0.20 0.30
Voltage Reference Section
TA = +25°C 2.49 2.50 2.51 Reference Voltage IK=10mA V -40°C ≤ TA ≤ +105°C 2.48 2.50 2.52 Reference Voltage Deviation over Full I Temperature Range K=10mA, TA= -40° C to +105°C

5 24 mV Minimum Cathode Current for Regulation

0.01 0.05 mA Dynamic Impedance IK=1mA to 80mA, f<1kHz

0.2 0.5 Ω
Op Amp 1 Section
(VCC = 5V, VO = 1.4V, TA = +25°C, unless otherwise noted.) TA = +25°C

0.5 3 Input Offset Voltage mV TA = -40°C to +105°C

– 5 Input Offset Voltage Temperature Drift T

A = -40
°
C to +105
°
C 7 – μV/°C Input Bias Current (Inverting Input Only) TA = +25°C

20 150 nA Large Signal Voltage Gain VCC = 15V, RL = 2kΩVO = 1.4V to 11.4V 85 100 – dB Power Supply Rejection Ratio VCC = 5V to 30V 70 90 – dB Source VCC = 15V, VID = 1VVO = 2V 20 40 – Output Current mA Sink VCC = 15V, VID = -1VVO = 2V 5 20

Output Voltage Swing (High) VCC = 30V, RL = 10kΩVID = 1V 27 28

V Output Voltage Swing (Low) VCC = 30V, RL = 10kΩVID = -1V

17 100 mV V Slew Rate CC = 18V, RL = 2kΩAV = 1, 0.2 0.5

V/μs VIN = 0.5V to 2V, CL = 100pF Unity Gain Bandwidth VCC = 30V, RL = 2kΩCL = 100pF 0.7 1.0

MHz
Op Amp 2 Section
(VCC = 5V, VO = 1.4V, TA = +25°C, unless otherwise noted.) TA = +25°C – 0.5 3 Input Offset Voltage mV TA = -40°C to +105°C

– 5 Input Offset Voltage Temperature Drift T – A = -40° C to +105°C 7 – μV/°C Input Offset Current TA = +25°C – 2 30 nA Input Bias Current TA = +25°C – 20 150 nA Input Voltage Range VCC = 0 to 36V 0 – VCC-1.5 V Common Mode Rejection Ratio TA = +25°C, VCM = 0 to 3.5V 70 85 – dB Large Signal Voltage Gain VCC = 15V, RL = 2kΩVO = 1.4V to 11.4V 85 100 – dB Power Supply Rejection Ratio VCC = 5V to 30V 70 90 – dB Source VCC = 15V, VID = 1VVO = 2V 20 40 – Output Current mA Sink VCC = 15V, VID = -1VVO = 2V 5 20

Output Voltage Swing (High) VCC = 30V, RL = 10kΩVID = 1V 27 28

V Output Voltage Swing (Low) VCC = 30V, RL = 10kΩVID = -1V – 17 100 mV V Slew Rate CC = 18V, RL = 2kΩAV = 1, 0.2 0.5

V/μs VIN = 0.5V to 2V, CL = 100pF Unity Gain Bandwidth VCC = 30V, RL = 2kΩCL = 100pF 0.7 1.0

MHz AP4310A 3 of 8 September 2014 Document number: DS36510 Rev. 2 - 2
