Datasheet VCNL36828P (Vishay)
| Fabricante | Vishay |
| Descripción | A Small Package Proximity Sensor With a VCSEL, Low Idle Current, I 2C Interface, and Smart Dual Slave Address |
| Páginas / Página | 20 / 1 — VCNL36828P. A Small Package Proximity Sensor With a VCSEL,. Low Idle … |
| Formato / tamaño de archivo | PDF / 287 Kb |
| Idioma del documento | Inglés |
VCNL36828P. A Small Package Proximity Sensor With a VCSEL,. Low Idle Current, I2C Interface, and Smart Dual Slave Address
Línea de modelo para esta hoja de datos
Versión de texto del documento

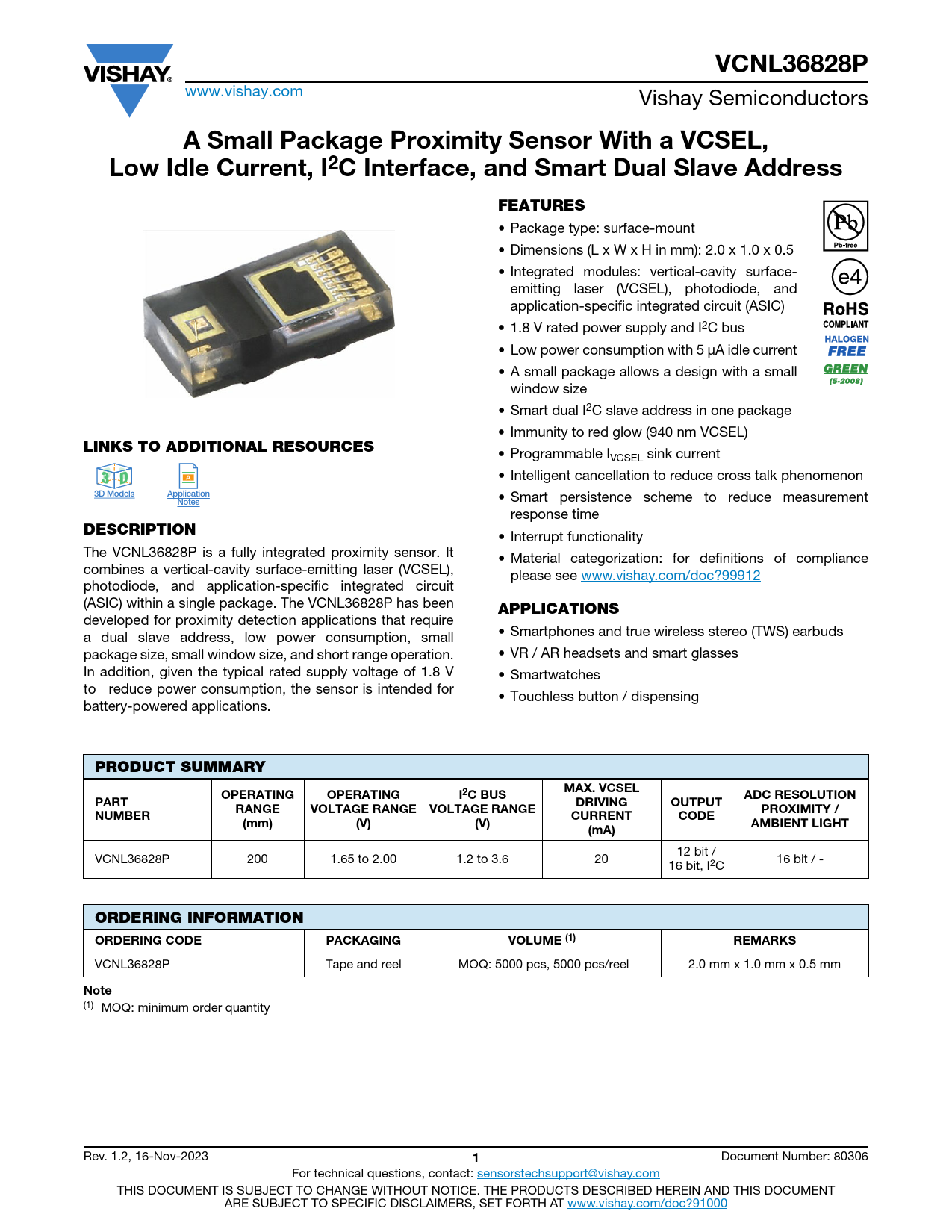

VCNL36828P
www.vishay.com Vishay Semiconductors
A Small Package Proximity Sensor With a VCSEL, Low Idle Current, I2C Interface, and Smart Dual Slave Address FEATURES
• Package type: surface-mount • Dimensions (L x W x H in mm): 2.0 x 1.0 x 0.5 • Integrated modules: vertical-cavity surface- emitting laser (VCSEL), photodiode, and application-specific integrated circuit (ASIC) • 1.8 V rated power supply and I2C bus • Low power consumption with 5 μA idle current • A small package allows a design with a small window size • Smart dual I2C slave address in one package • Immunity to red glow (940 nm VCSEL)
LINKS TO ADDITIONAL RESOURCES
• Programmable IVCSEL sink current
D 3
• Intelligent cancellation to reduce cross talk phenomenon
3 D 3D Models Application
• Smart persistence scheme to reduce measurement
Notes
response time
DESCRIPTION
• Interrupt functionality The VCNL36828P is a fully integrated proximity sensor. It • Material categorization: for definitions of compliance combines a vertical-cavity surface-emitting laser (VCSEL), please see www.vishay.com/doc?99912 photodiode, and application-specific integrated circuit (ASIC) within a single package. The VCNL36828P has been
APPLICATIONS
developed for proximity detection applications that require a dual slave address, low power consumption, small • Smartphones and true wireless stereo (TWS) earbuds package size, small window size, and short range operation. • VR / AR headsets and smart glasses In addition, given the typical rated supply voltage of 1.8 V • Smartwatches to reduce power consumption, the sensor is intended for • Touchless button / dispensing battery-powered applications.
PRODUCT SUMMARY MAX. VCSEL OPERATING OPERATING I2C BUS ADC RESOLUTION PART DRIVING OUTPUT RANGE VOLTAGE RANGE VOLTAGE RANGE PROXIMITY / NUMBER CURRENT CODE (mm) (V) (V) AMBIENT LIGHT (mA)
12 bit / VCNL36828P 200 1.65 to 2.00 1.2 to 3.6 20 16 bit / - 16 bit, I2C
ORDERING INFORMATION ORDERING CODE PACKAGING VOLUME (1) REMARKS
VCNL36828P Tape and reel MOQ: 5000 pcs, 5000 pcs/reel 2.0 mm x 1.0 mm x 0.5 mm
Note
(1) MOQ: minimum order quantity Rev. 1.2, 16-Nov-2023
1
Document Number: 80306 For technical questions, contact: sensorstechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
