Datasheet VCNL36828P (Vishay) - 4
| Fabricante | Vishay |
| Descripción | A Small Package Proximity Sensor With a VCSEL, Low Idle Current, I 2C Interface, and Smart Dual Slave Address |
| Páginas / Página | 20 / 4 — VCNL36828P. LASER CLASS. LASER. Note. BLOCK DIAGRAM |
| Formato / tamaño de archivo | PDF / 287 Kb |
| Idioma del documento | Inglés |
VCNL36828P. LASER CLASS. LASER. Note. BLOCK DIAGRAM
Línea de modelo para esta hoja de datos
Versión de texto del documento
VCNL36828P
www.vishay.com Vishay Semiconductors
LASER CLASS LASER 1 Note
• Product specification with IEC / EN 60825-1:2014 compliance and above label

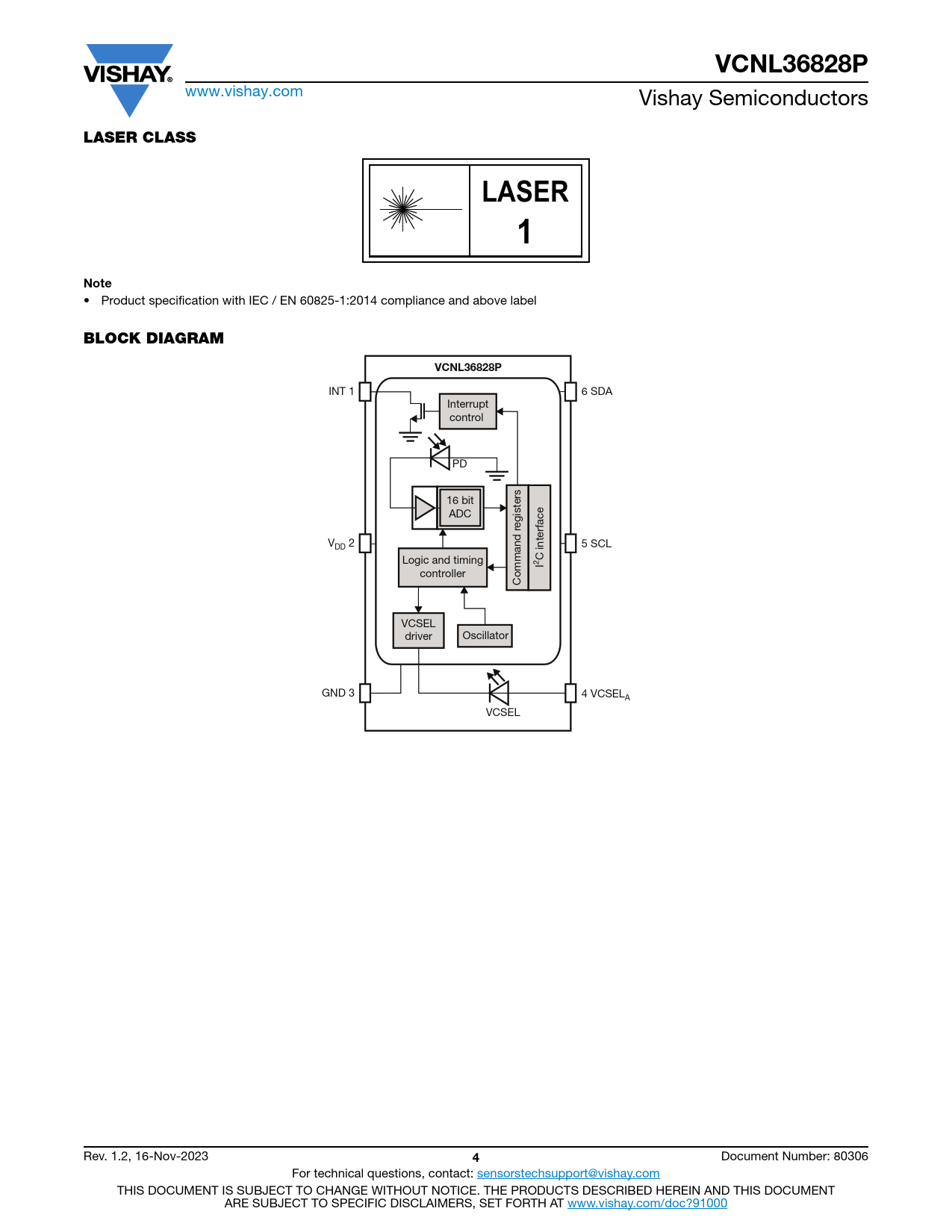

BLOCK DIAGRAM VCNL36828P
INT 1 6 SDA Interrupt control PD 16 bit ADC egisters V 2 5 SCL DD Logic and timing C interface2I controller Command r VCSEL driver Oscillator GND 3 4 VCSELA VCSEL Rev. 1.2, 16-Nov-2023
4
