VCNL36828P
www.vishay.com Vishay Semiconductors

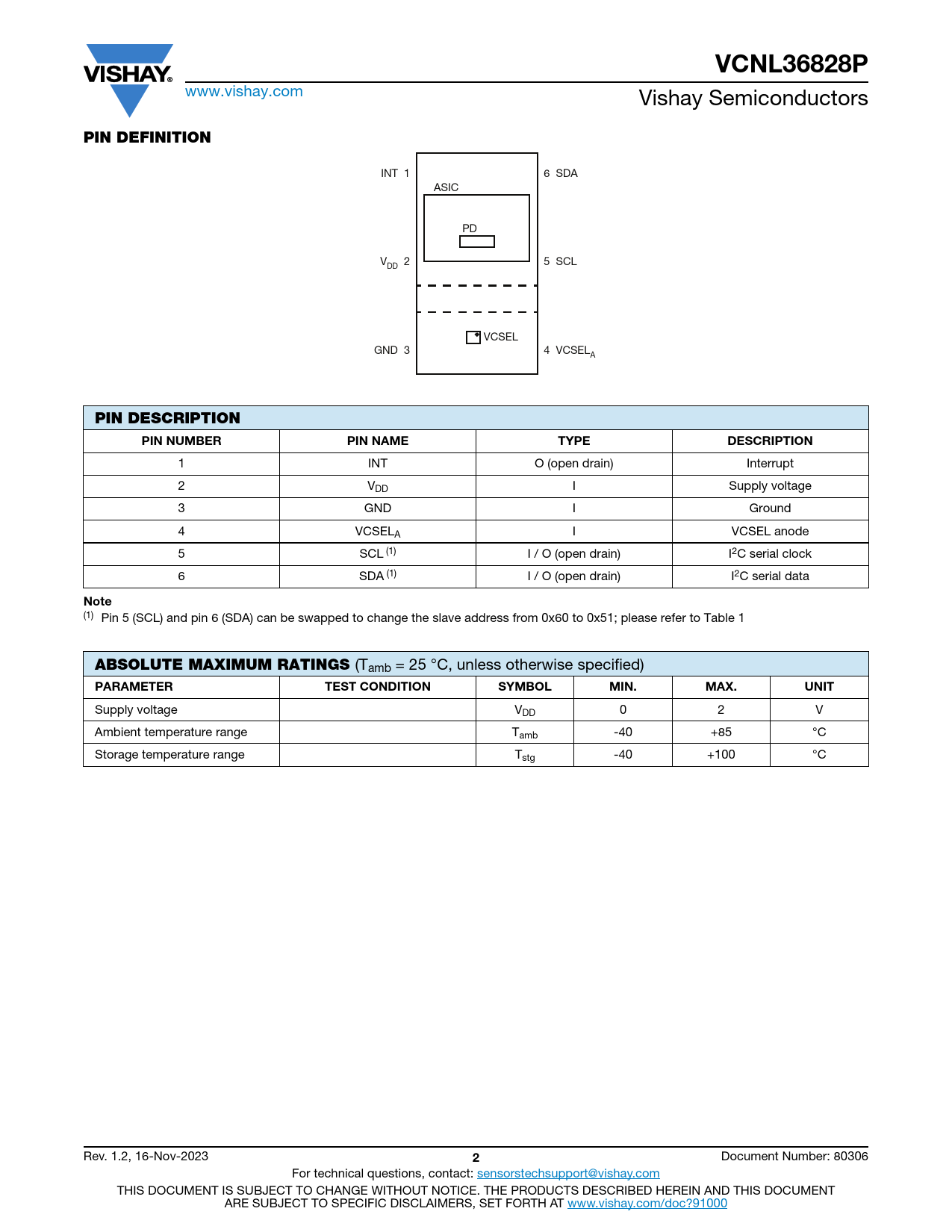

PIN DEFINITION
INT 1 6 SDA ASIC PD V 2 5 SCL DD VCSEL GND 3 4 VCSELA
PIN DESCRIPTION PIN NUMBER PIN NAME TYPE DESCRIPTION
1 INT O (open drain) Interrupt 2 VDD I Supply voltage 3 GND I Ground 4 VCSELA I VCSEL anode 5 SCL (1) I / O (open drain) I2C serial clock 6 SDA (1) I / O (open drain) I2C serial data
Note
(1) Pin 5 (SCL) and pin 6 (SDA) can be swapped to change the slave address from 0x60 to 0x51; please refer to Table 1
ABSOLUTE MAXIMUM RATINGS
(Tamb = 25 °C, unless otherwise specified)
PARAMETER TEST CONDITION SYMBOL MIN. MAX. UNIT
Supply voltage VDD 0 2 V Ambient temperature range Tamb -40 +85 °C Storage temperature range Tstg -40 +100 °C Rev. 1.2, 16-Nov-2023
2
Document Number: 80306 For technical questions, contact: sensorstechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
