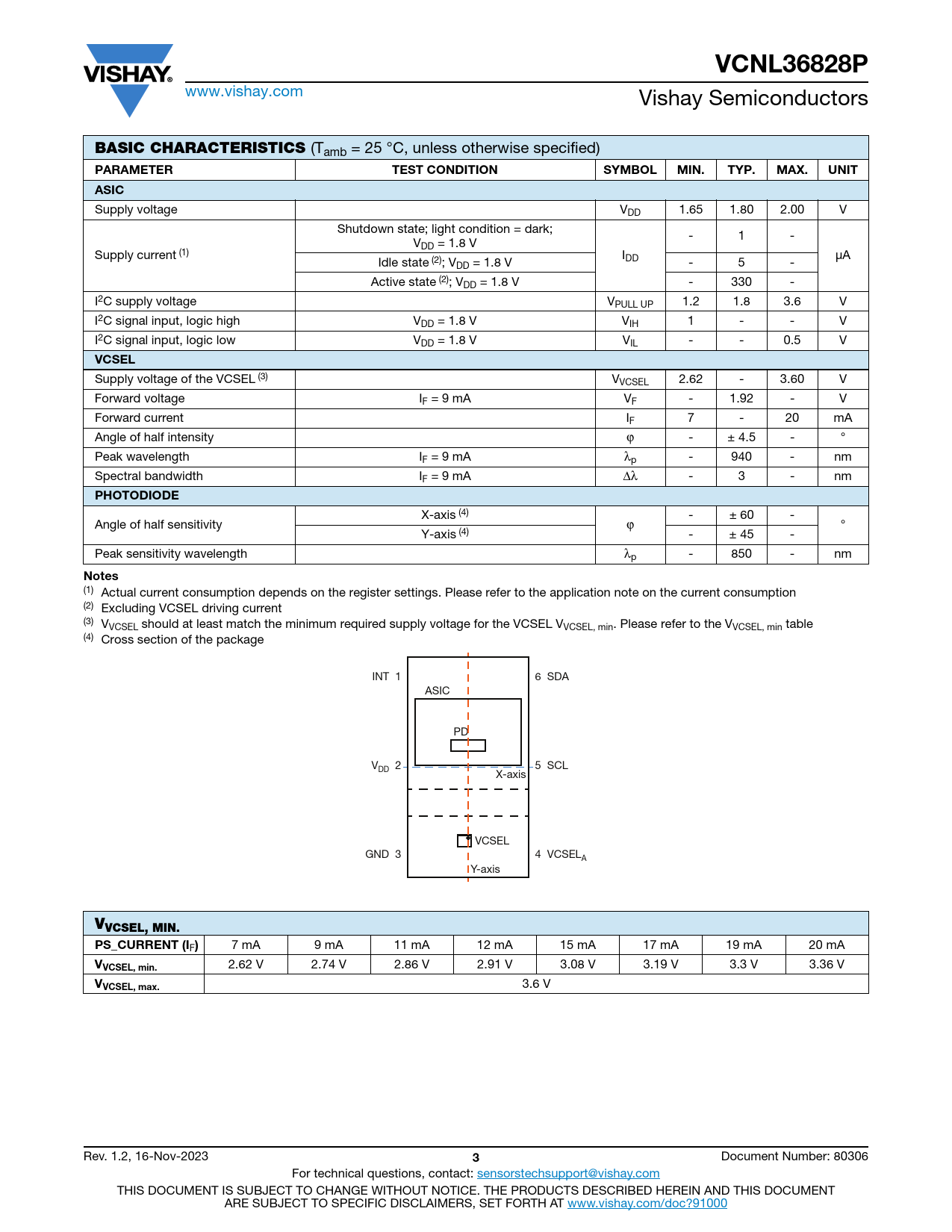

VCNL36828P
www.vishay.com Vishay Semiconductors
BASIC CHARACTERISTICS
(Tamb = 25 °C, unless otherwise specified)
PARAMETER TEST CONDITION SYMBOL MIN. TYP. MAX. UNIT ASIC
Supply voltage VDD 1.65 1.80 2.00 V Shutdown state; light condition = dark; - 1 - VDD = 1.8 V Supply current (1) IDD μA Idle state (2); VDD = 1.8 V - 5 - Active state (2); VDD = 1.8 V - 330 - I2C supply voltage VPULL UP 1.2 1.8 3.6 V I2C signal input, logic high VDD = 1.8 V VIH 1 - - V I2C signal input, logic low VDD = 1.8 V VIL - - 0.5 V
VCSEL
Supply voltage of the VCSEL (3) VVCSEL 2.62 - 3.60 V Forward voltage IF = 9 mA VF - 1.92 - V Forward current IF 7 - 20 mA Angle of half intensity ϕ - ± 4.5 - ° Peak wavelength IF = 9 mA λp - 940 - nm Spectral bandwidth IF = 9 mA Δλ - 3 - nm
PHOTODIODE
X-axis (4) - ± 60 - Angle of half sensitivity ϕ ° Y-axis (4) - ± 45 - Peak sensitivity wavelength λp - 850 - nm
Notes
(1) Actual current consumption depends on the register settings. Please refer to the application note on the current consumption (2) Excluding VCSEL driving current (3) VVCSEL should at least match the minimum required supply voltage for the VCSEL VVCSEL, min. Please refer to the VVCSEL, min table (4) Cross section of the package INT 1 6 SDA ASIC PD V 2 5 SCL DD X-axis VCSEL GND 3 4 VCSELA Y-axis
VVCSEL, MIN. PS_CURRENT (I
F
)
7 mA 9 mA 11 mA 12 mA 15 mA 17 mA 19 mA 20 mA
VVCSEL, min.
2.62 V 2.74 V 2.86 V 2.91 V 3.08 V 3.19 V 3.3 V 3.36 V
VVCSEL, max.
3.6 V Rev. 1.2, 16-Nov-2023
3
Document Number: 80306 For technical questions, contact: sensorstechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
