| Fabricante | Analog Devices |
| Descripción | 0.28 Ω, CMOS, 1.65 V to 3.6 V, Single SPST Switch |
| Páginas / Página | 9 / 5 — Known Good Die. ADG841-KGD. SPECIFICATIONS—1.65 V TO 1.95. Table 4. −40°C … |
| Revisión | B |
| Formato / tamaño de archivo | PDF / 285 Kb |
| Idioma del documento | Inglés |
Known Good Die. ADG841-KGD. SPECIFICATIONS—1.65 V TO 1.95. Table 4. −40°C to. Parameter +25°C. +85°C. +125°C Unit Test
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 8 link to page 8 link to page 8 link to page 8 link to page 8 link to page 8 link to page 8 link to page 8 link to page 8

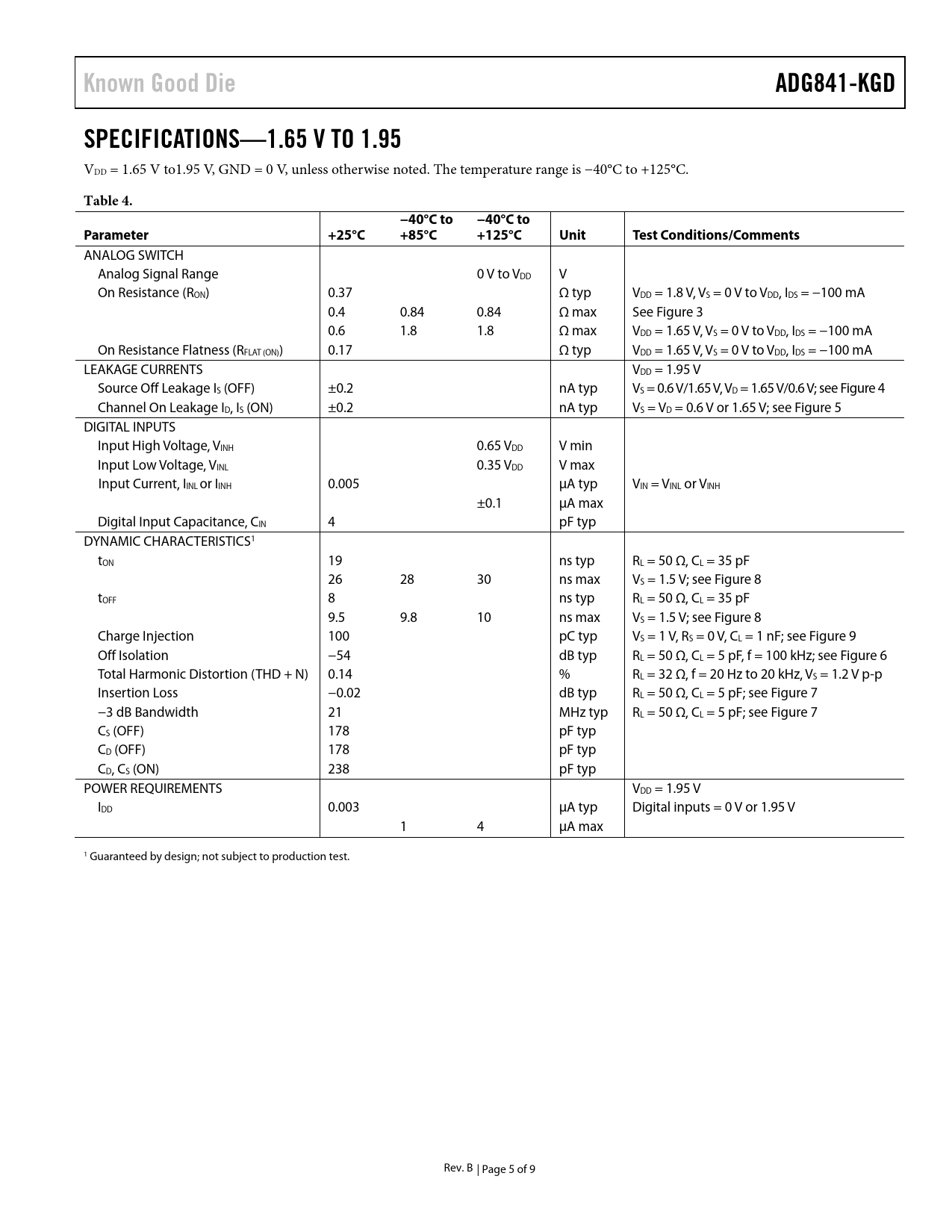

Known Good Die ADG841-KGD SPECIFICATIONS—1.65 V TO 1.95
VDD = 1.65 V to1.95 V, GND = 0 V, unless otherwise noted. The temperature range is −40°C to +125°C.
Table 4. −40°C to −40°C to Parameter +25°C +85°C +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 V to VDD V On Resistance (RON) 0.37 Ω typ VDD = 1.8 V, VS = 0 V to VDD, IDS = −100 mA 0.4 0.84 0.84 Ω max See Figure 3 0.6 1.8 1.8 Ω max VDD = 1.65 V, VS = 0 V to VDD, IDS = −100 mA On Resistance Flatness (RFLAT (ON)) 0.17 Ω typ VDD = 1.65 V, VS = 0 V to VDD, IDS = −100 mA LEAKAGE CURRENTS VDD = 1.95 V Source Off Leakage IS (OFF) ±0.2 nA typ VS = 0.6 V/1.65 V, VD = 1.65 V/0.6 V; see Figure 4 Channel On Leakage ID, IS (ON) ±0.2 nA typ VS = VD = 0.6 V or 1.65 V; see Figure 5 DIGITAL INPUTS Input High Voltage, VINH 0.65 VDD V min Input Low Voltage, VINL 0.35 VDD V max Input Current, IINL or IINH 0.005 μA typ VIN = VINL or VINH ±0.1 μA max Digital Input Capacitance, CIN 4 pF typ DYNAMIC CHARACTERISTICS1 tON 19 ns typ RL = 50 Ω, CL = 35 pF 26 28 30 ns max VS = 1.5 V; see Figure 8 tOFF 8 ns typ RL = 50 Ω, CL = 35 pF 9.5 9.8 10 ns max VS = 1.5 V; see Figure 8 Charge Injection 100 pC typ VS = 1 V, RS = 0 V, CL = 1 nF; see Figure 9 Off Isolation −54 dB typ RL = 50 Ω, CL = 5 pF, f = 100 kHz; see Figure 6 Total Harmonic Distortion (THD + N) 0.14 % RL = 32 Ω, f = 20 Hz to 20 kHz, VS = 1.2 V p-p Insertion Loss −0.02 dB typ RL = 50 Ω, CL = 5 pF; see Figure 7 −3 dB Bandwidth 21 MHz typ RL = 50 Ω, CL = 5 pF; see Figure 7 CS (OFF) 178 pF typ CD (OFF) 178 pF typ CD, CS (ON) 238 pF typ POWER REQUIREMENTS VDD = 1.95 V IDD 0.003 μA typ Digital inputs = 0 V or 1.95 V 1 4 μA max 1 Guaranteed by design; not subject to production test. Rev. B | Page 5 of 9 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS—2.7 V TO 3.6 V SPECIFICATIONS—2.5 V ± 0.2 V SPECIFICATIONS—1.65 V TO 1.95 ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TEST CIRCUITS OUTLINE DIMENSIONS DIE SPECIFICATIONS AND ASSEMBLY RECOMMENDATIONS ORDERING GUIDE
