Datasheet ADG841-KGD (Analog Devices) - 9
| Fabricante | Analog Devices |
| Descripción | 0.28 Ω, CMOS, 1.65 V to 3.6 V, Single SPST Switch |
| Páginas / Página | 9 / 9 — Known Good Die. ADG841-KGD. OUTLINE DIMENSIONS. 0.314 0.304 0.294. 0.820 … |
| Revisión | B |
| Formato / tamaño de archivo | PDF / 285 Kb |
| Idioma del documento | Inglés |
Known Good Die. ADG841-KGD. OUTLINE DIMENSIONS. 0.314 0.304 0.294. 0.820 MAX. 1.010 MAX. TOP VIEW. SIDE VIEW. (CIRCUIT SIDE). 0.07 × 0.07
Línea de modelo para esta hoja de datos
Versión de texto del documento
Known Good Die ADG841-KGD OUTLINE DIMENSIONS 0.314 0.304 0.294 0.820 MAX 1 6 5 1.010 MAX 2 3 4 TOP VIEW SIDE VIEW A (CIRCUIT SIDE) 1- 0.07 × 0.07 -201 -04 1 1

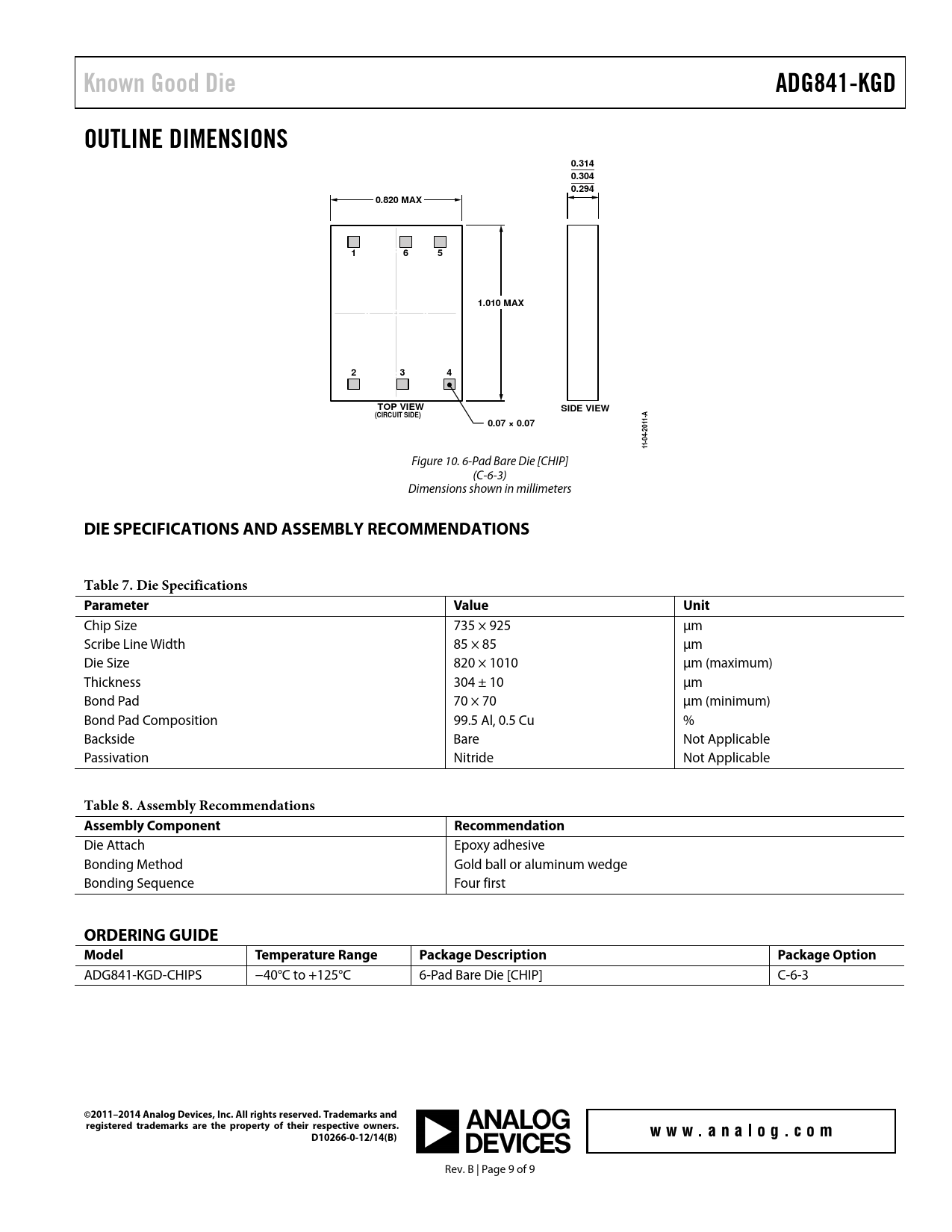

Figure 10. 6-Pad Bare Die [CHIP] (C-6-3) Dimensions shown in millimeters
DIE SPECIFICATIONS AND ASSEMBLY RECOMMENDATIONS Table 7. Die Specifications Parameter Value Unit
Chip Size 735 × 925 μm Scribe Line Width 85 × 85 μm Die Size 820 × 1010 μm (maximum) Thickness 304 ± 10 μm Bond Pad 70 × 70 μm (minimum) Bond Pad Composition 99.5 Al, 0.5 Cu % Backside Bare Not Applicable Passivation Nitride Not Applicable
Table 8. Assembly Recommendations Assembly Component Recommendation
Die Attach Epoxy adhesive Bonding Method Gold ball or aluminum wedge Bonding Sequence Four first
ORDERING GUIDE Model Temperature Range Package Description Package Option
ADG841-KGD-CHIPS −40°C to +125°C 6-Pad Bare Die [CHIP] C-6-3
