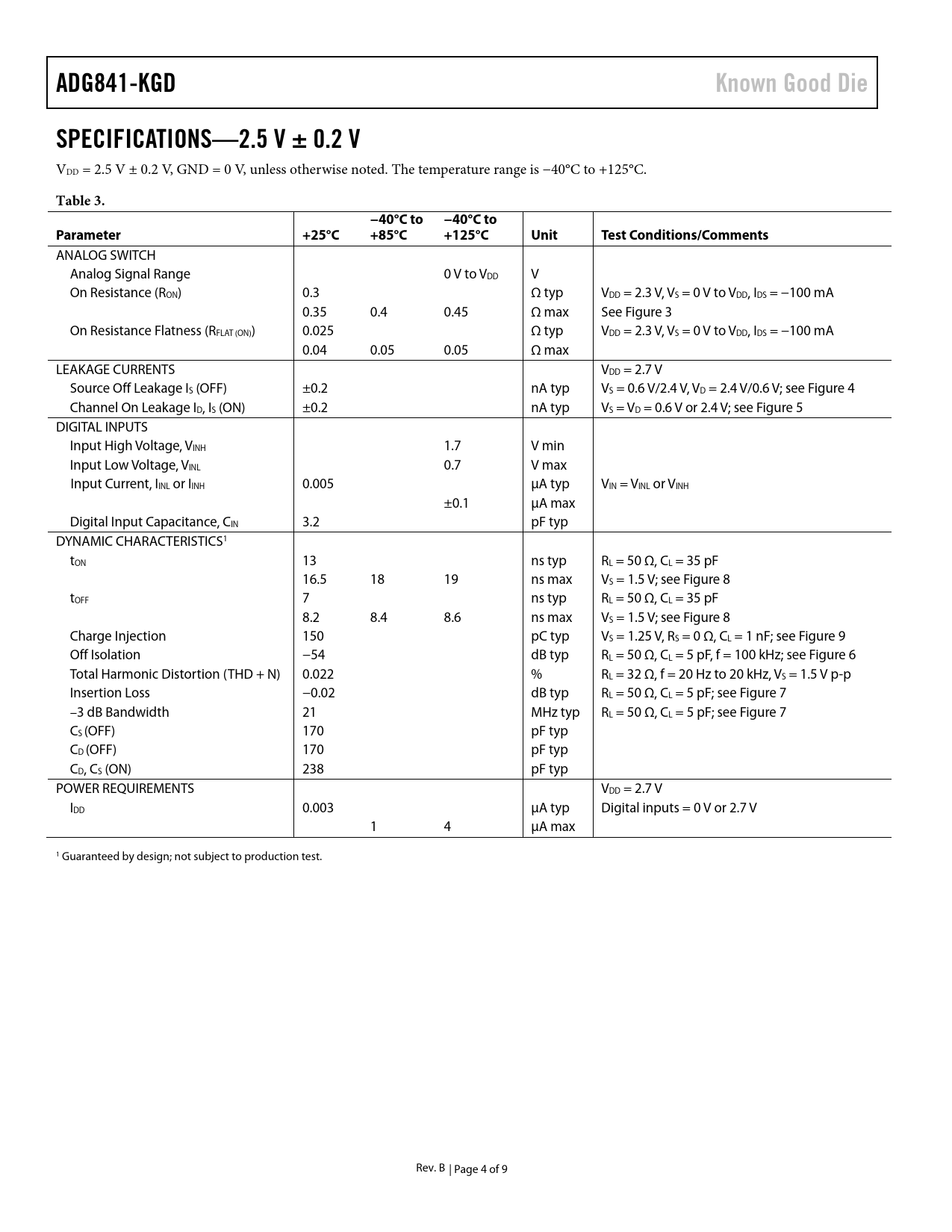

ADG841-KGD Known Good Die SPECIFICATIONS—2.5 V ± 0.2 V
VDD = 2.5 V ± 0.2 V, GND = 0 V, unless otherwise noted. The temperature range is −40°C to +125°C.
Table 3. −40°C to −40°C to Parameter +25°C +85°C +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 V to VDD V On Resistance (RON) 0.3 Ω typ VDD = 2.3 V, VS = 0 V to VDD, IDS = −100 mA 0.35 0.4 0.45 Ω max See Figure 3 On Resistance Flatness (RFLAT (ON)) 0.025 Ω typ VDD = 2.3 V, VS = 0 V to VDD, IDS = −100 mA 0.04 0.05 0.05 Ω max LEAKAGE CURRENTS VDD = 2.7 V Source Off Leakage IS (OFF) ±0.2 nA typ VS = 0.6 V/2.4 V, VD = 2.4 V/0.6 V; see Figure 4 Channel On Leakage ID, IS (ON) ±0.2 nA typ VS = VD = 0.6 V or 2.4 V; see Figure 5 DIGITAL INPUTS Input High Voltage, VINH 1.7 V min Input Low Voltage, VINL 0.7 V max Input Current, IINL or IINH 0.005 µA typ VIN = VINL or VINH ±0.1 µA max Digital Input Capacitance, CIN 3.2 pF typ DYNAMIC CHARACTERISTICS1 tON 13 ns typ RL = 50 Ω, CL = 35 pF 16.5 18 19 ns max VS = 1.5 V; see Figure 8 tOFF 7 ns typ RL = 50 Ω, CL = 35 pF 8.2 8.4 8.6 ns max VS = 1.5 V; see Figure 8 Charge Injection 150 pC typ VS = 1.25 V, RS = 0 Ω, CL = 1 nF; see Figure 9 Off Isolation −54 dB typ RL = 50 Ω, CL = 5 pF, f = 100 kHz; see Figure 6 Total Harmonic Distortion (THD + N) 0.022 % RL = 32 Ω, f = 20 Hz to 20 kHz, VS = 1.5 V p-p Insertion Loss −0.02 dB typ RL = 50 Ω, CL = 5 pF; see Figure 7 –3 dB Bandwidth 21 MHz typ RL = 50 Ω, CL = 5 pF; see Figure 7 CS (OFF) 170 pF typ CD (OFF) 170 pF typ CD, CS (ON) 238 pF typ POWER REQUIREMENTS VDD = 2.7 V IDD 0.003 µA typ Digital inputs = 0 V or 2.7 V 1 4 µA max 1 Guaranteed by design; not subject to production test. Rev. B | Page 4 of 9 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS—2.7 V TO 3.6 V SPECIFICATIONS—2.5 V ± 0.2 V SPECIFICATIONS—1.65 V TO 1.95 ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TEST CIRCUITS OUTLINE DIMENSIONS DIE SPECIFICATIONS AND ASSEMBLY RECOMMENDATIONS ORDERING GUIDE
