Datasheet ADG841-KGD (Analog Devices) - 6
| Fabricante | Analog Devices |
| Descripción | 0.28 Ω, CMOS, 1.65 V to 3.6 V, Single SPST Switch |
| Páginas / Página | 9 / 6 — ADG841-KGD. Known Good Die. ABSOLUTE MAXIMUM RATINGS. Table 5. Parameter … |
| Revisión | B |
| Formato / tamaño de archivo | PDF / 285 Kb |
| Idioma del documento | Inglés |
ADG841-KGD. Known Good Die. ABSOLUTE MAXIMUM RATINGS. Table 5. Parameter Rating. ESD CAUTION
Línea de modelo para esta hoja de datos
Versión de texto del documento

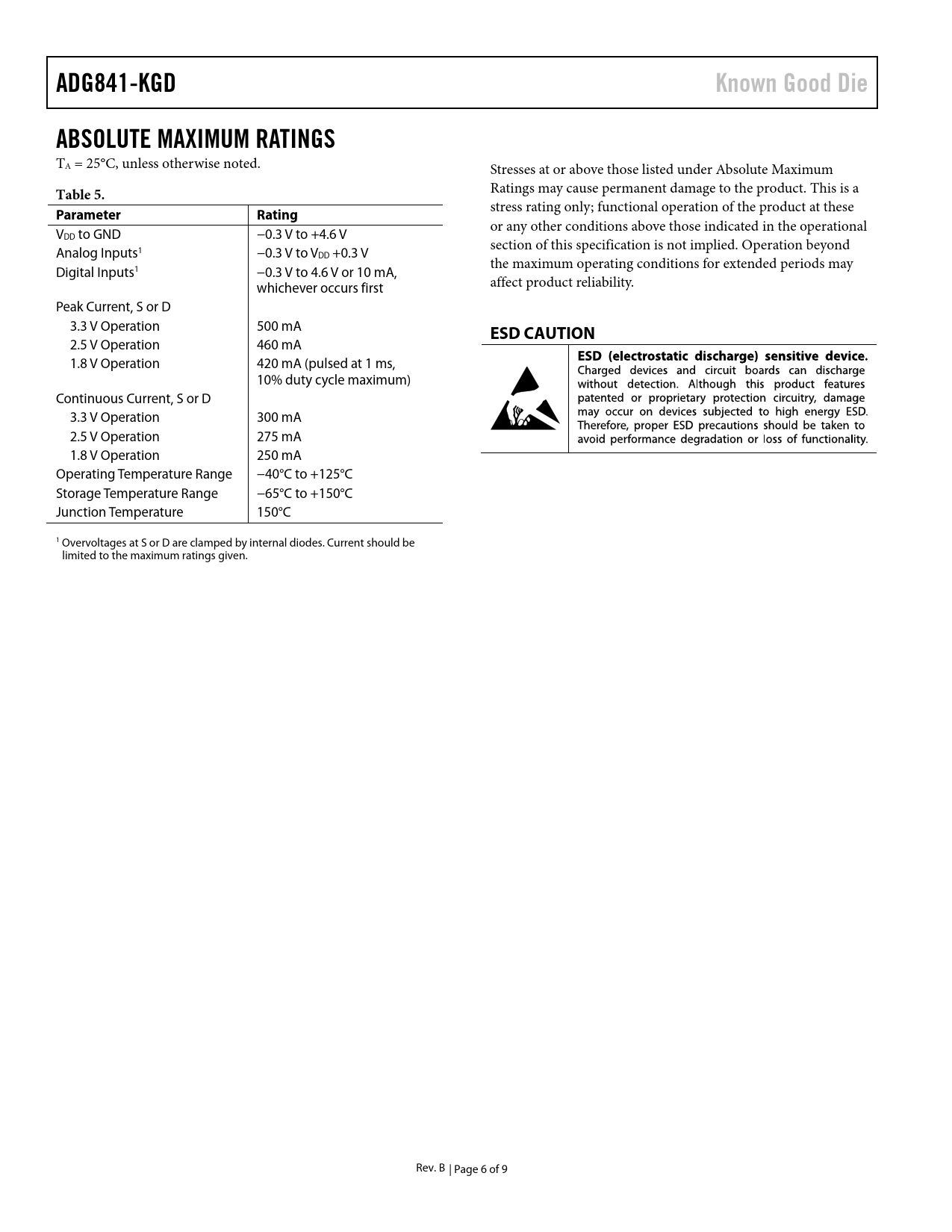

ADG841-KGD Known Good Die ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted. Stresses at or above those listed under Absolute Maximum
Table 5.
Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these
Parameter Rating
or any other conditions above those indicated in the operational VDD to GND −0.3 V to +4.6 V section of this specification is not implied. Operation beyond Analog Inputs1 −0.3 V to VDD +0.3 V the maximum operating conditions for extended periods may Digital Inputs1 −0.3 V to 4.6 V or 10 mA, whichever occurs first affect product reliability. Peak Current, S or D 3.3 V Operation 500 mA
ESD CAUTION
2.5 V Operation 460 mA 1.8 V Operation 420 mA (pulsed at 1 ms, 10% duty cycle maximum) Continuous Current, S or D 3.3 V Operation 300 mA 2.5 V Operation 275 mA 1.8 V Operation 250 mA Operating Temperature Range −40°C to +125°C Storage Temperature Range −65°C to +150°C Junction Temperature 150°C 1 Overvoltages at S or D are clamped by internal diodes. Current should be limited to the maximum ratings given. Rev. B | Page 6 of 9 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS—2.7 V TO 3.6 V SPECIFICATIONS—2.5 V ± 0.2 V SPECIFICATIONS—1.65 V TO 1.95 ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TEST CIRCUITS OUTLINE DIMENSIONS DIE SPECIFICATIONS AND ASSEMBLY RECOMMENDATIONS ORDERING GUIDE
