ADG406/ADG407/ADG426. Parameter. +25°C. −40°C to +85°C. Unit. Test Conditions/Comments
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 5

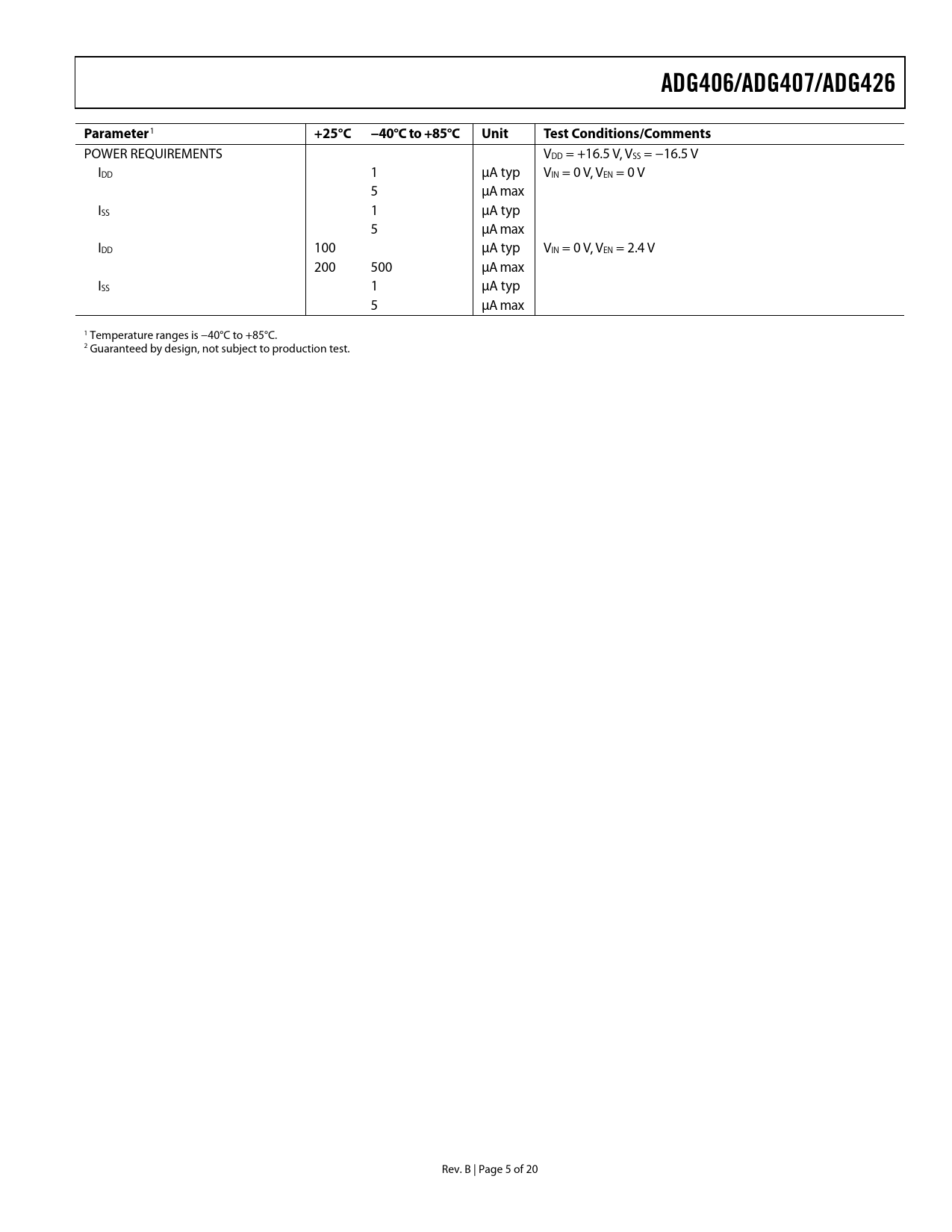

ADG406/ADG407/ADG426 Parameter
1
+25°C −40°C to +85°C Unit Test Conditions/Comments
POWER REQUIREMENTS VDD = +16.5 V, VSS = −16.5 V IDD 1 μA typ VIN = 0 V, VEN = 0 V 5 μA max ISS 1 μA typ 5 μA max IDD 100 μA typ VIN = 0 V, VEN = 2.4 V 200 500 μA max ISS 1 μA typ 5 μA max 1 Temperature ranges is −40°C to +85°C. 2 Guaranteed by design, not subject to production test. Rev. B | Page 5 of 20 Document Outline FEATURES APPLICATIONS PRODUCT HIGHLIGHTS FUNCTIONAL BLOCK DIAGRAMS TABLE OF CONTENTS REVISION HISTORY GENERAL DESCRIPTION SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ADG426 TIMING DIAGRAMS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
