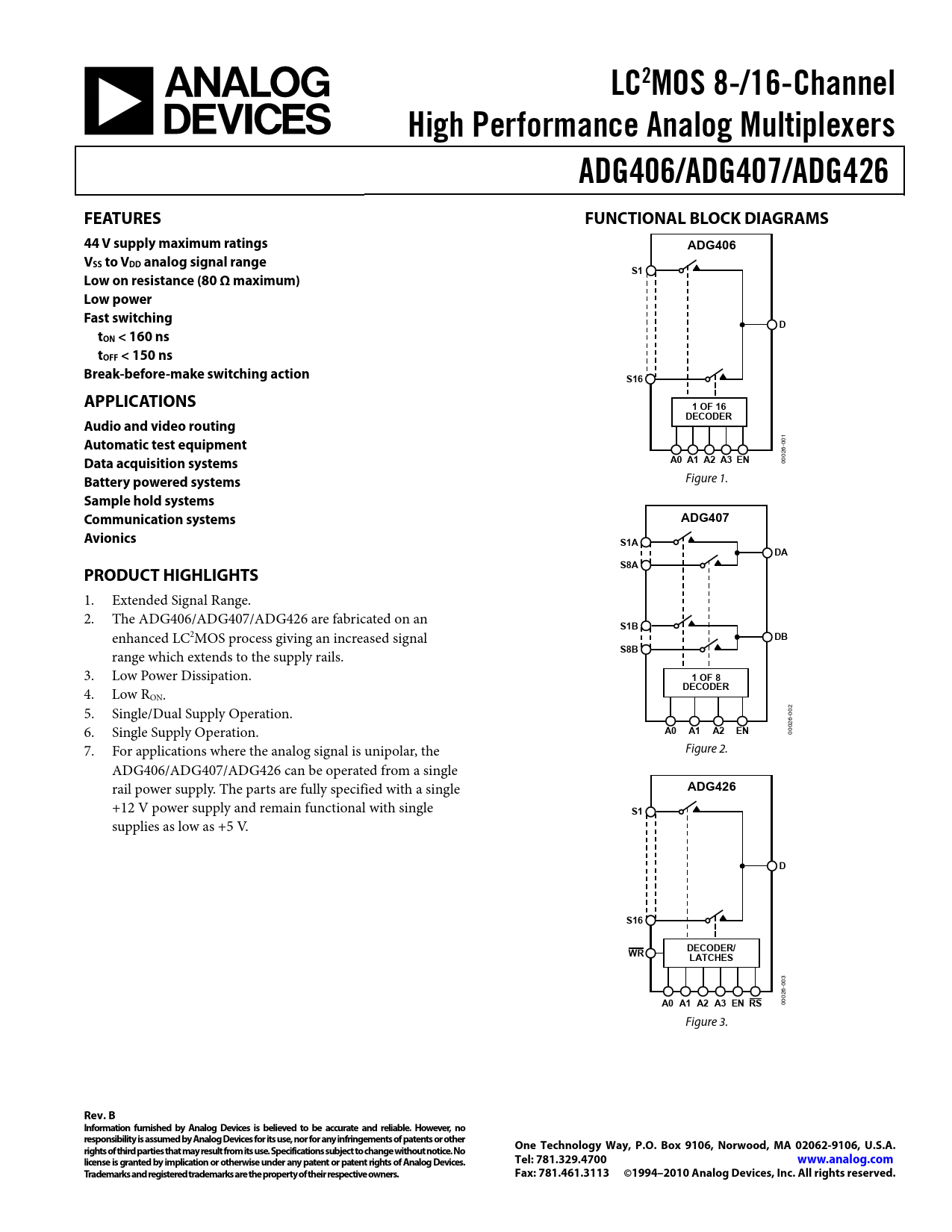

LC2MOS 8-/16-Channel. High Performance Analog Multiplexers. ADG406/ADG407/ADG426. FEATURES. FUNCTIONAL BLOCK DIAGRAMS
Línea de modelo para esta hoja de datos
Versión de texto del documento
LC2MOS 8-/16-Channel High Performance Analog Multiplexers ADG406/ADG407/ADG426 FEATURES FUNCTIONAL BLOCK DIAGRAMS 44 V supply maximum ratings ADG406 VSS to VDD analog signal range S1 Low on resistance (80 Ω maximum) Low power Fast switching D tON < 160 ns tOFF < 150 ns Break-before-make switching action S16 APPLICATIONS 1 OF 16 DECODER Audio and video routing
01
Automatic test equipment
0 6- 02
Data acquisition systems A0 A1 A2 A3 EN
00
Battery powered systems
Figure 1.
Sample hold systems Communication systems ADG407 Avionics S1A DA S8A PRODUCT HIGHLIGHTS
1. Extended Signal Range. 2. The ADG406/ADG407/ADG426 are fabricated on an
S1B
enhanced LC2MOS process giving an increased signal
DB S8B
range which extends to the supply rails. 3. Low Power Dissipation.
1 OF 8 DECODER
4. Low RON. 5. Single/Dual Supply Operation. 02 0 6- 02 6. Single Supply Operation.
A0 A1 A2 EN
00 7. For applications where the analog signal is unipolar, the Figure 2. ADG406/ADG407/ADG426 can be operated from a single rail power supply. The parts are fully specified with a single
ADG426
+12 V power supply and remain functional with single
S1
supplies as low as +5 V.
D S16 DECODER/ WR LATCHES
03 0 6- 02
A0 A1 A2 A3 EN RS
00 Figure 3.
Rev. B Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 www.analog.com Trademarks and registered trademarks are the property of their respective owners. Fax: 781.461.3113 ©1994–2010 Analog Devices, Inc. All rights reserved.
