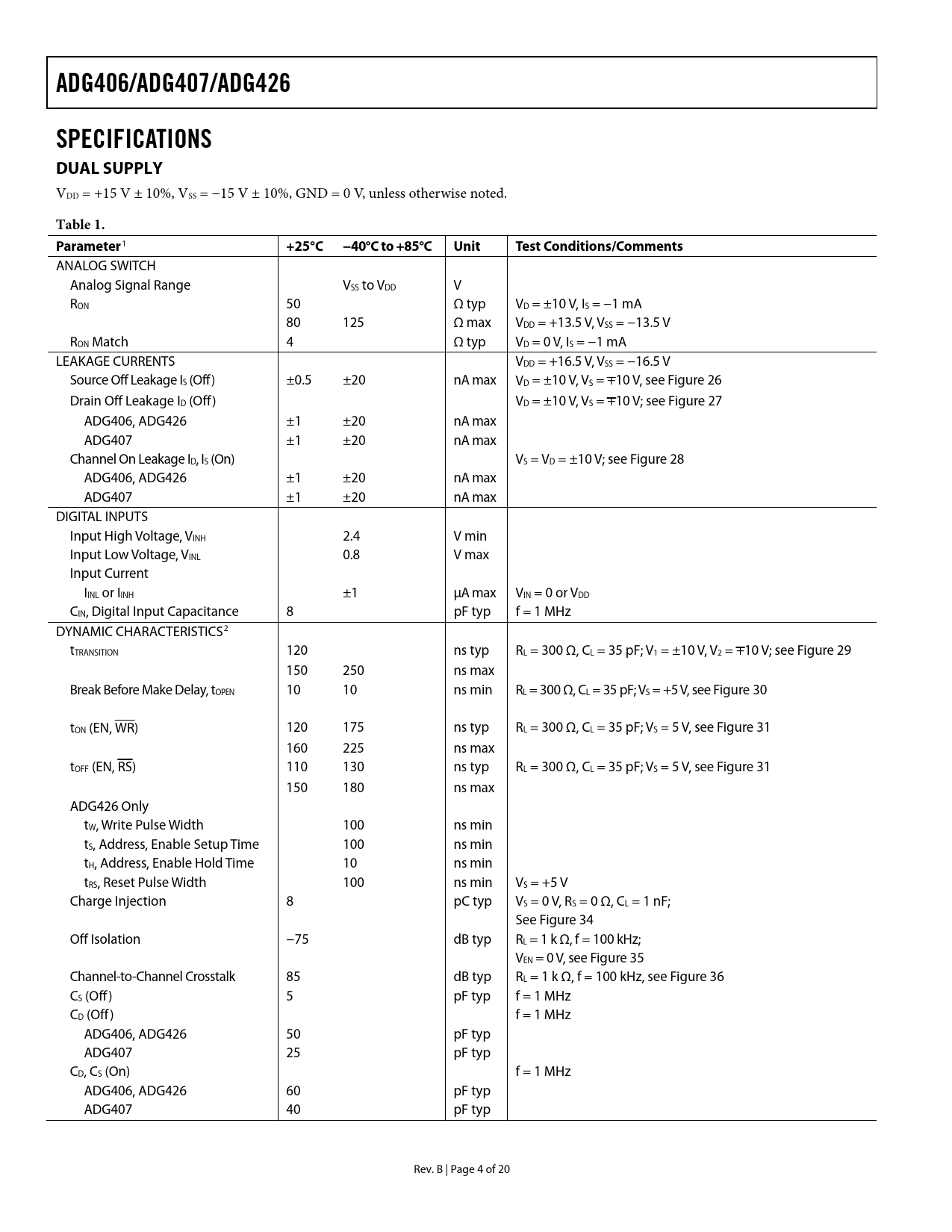

ADG406/ADG407/ADG426 SPECIFICATIONS DUAL SUPPLY
VDD = +15 V ± 10%, VSS = −15 V ± 10%, GND = 0 V, unless otherwise noted.
Table 1. Parameter
1
+25°C −40°C to +85°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range VSS to VDD V RON 50 Ω typ VD = ±10 V, IS = −1 mA 80 125 Ω max VDD = +13.5 V, VSS = −13.5 V RON Match 4 Ω typ VD = 0 V, IS = −1 mA LEAKAGE CURRENTS VDD = +16.5 V, VSS = −16.5 V Source Off Leakage IS (Off) ±0.5 ±20 nA max VD = ±10 V, VS = +10 V, see Figure 26 Drain Off Leakage ID (Off ) VD = ±10 V, VS = +10 V; see Figure 27 ADG406, ADG426 ±1 ±20 nA max ADG407 ±1 ±20 nA max Channel On Leakage ID, IS (On) VS = VD = ±10 V; see Figure 28 ADG406, ADG426 ±1 ±20 nA max ADG407 ±1 ±20 nA max DIGITAL INPUTS Input High Voltage, VINH 2.4 V min Input Low Voltage, VINL 0.8 V max Input Current IINL or IINH ±1 μA max VIN = 0 or VDD CIN, Digital Input Capacitance 8 pF typ f = 1 MHz DYNAMIC CHARACTERISTICS2 tTRANSITION 120 ns typ RL = 300 Ω, CL = 35 pF; V1 = ±10 V, V2 = +10 V; see Figure 29 150 250 ns max Break Before Make Delay, tOPEN 10 10 ns min RL = 300 Ω, CL = 35 pF; VS = +5 V, see Figure 30 tON (EN, WR) 120 175 ns typ RL = 300 Ω, CL = 35 pF; VS = 5 V, see Figure 31 160 225 ns max tOFF (EN, RS) 110 130 ns typ RL = 300 Ω, CL = 35 pF; VS = 5 V, see Figure 31 150 180 ns max ADG426 Only tW, Write Pulse Width 100 ns min tS, Address, Enable Setup Time 100 ns min tH, Address, Enable Hold Time 10 ns min tRS, Reset Pulse Width 100 ns min VS = +5 V Charge Injection 8 pC typ VS = 0 V, RS = 0 Ω, CL = 1 nF; See Figure 34 Off Isolation −75 dB typ RL = 1 k Ω, f = 100 kHz; VEN = 0 V, see Figure 35 Channel-to-Channel Crosstalk 85 dB typ RL = 1 k Ω, f = 100 kHz, see Figure 36 CS (Off ) 5 pF typ f = 1 MHz CD (Off ) f = 1 MHz ADG406, ADG426 50 pF typ ADG407 25 pF typ CD, CS (On) f = 1 MHz ADG406, ADG426 60 pF typ ADG407 40 pF typ Rev. B | Page 4 of 20 Document Outline FEATURES APPLICATIONS PRODUCT HIGHLIGHTS FUNCTIONAL BLOCK DIAGRAMS TABLE OF CONTENTS REVISION HISTORY GENERAL DESCRIPTION SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ADG426 TIMING DIAGRAMS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
