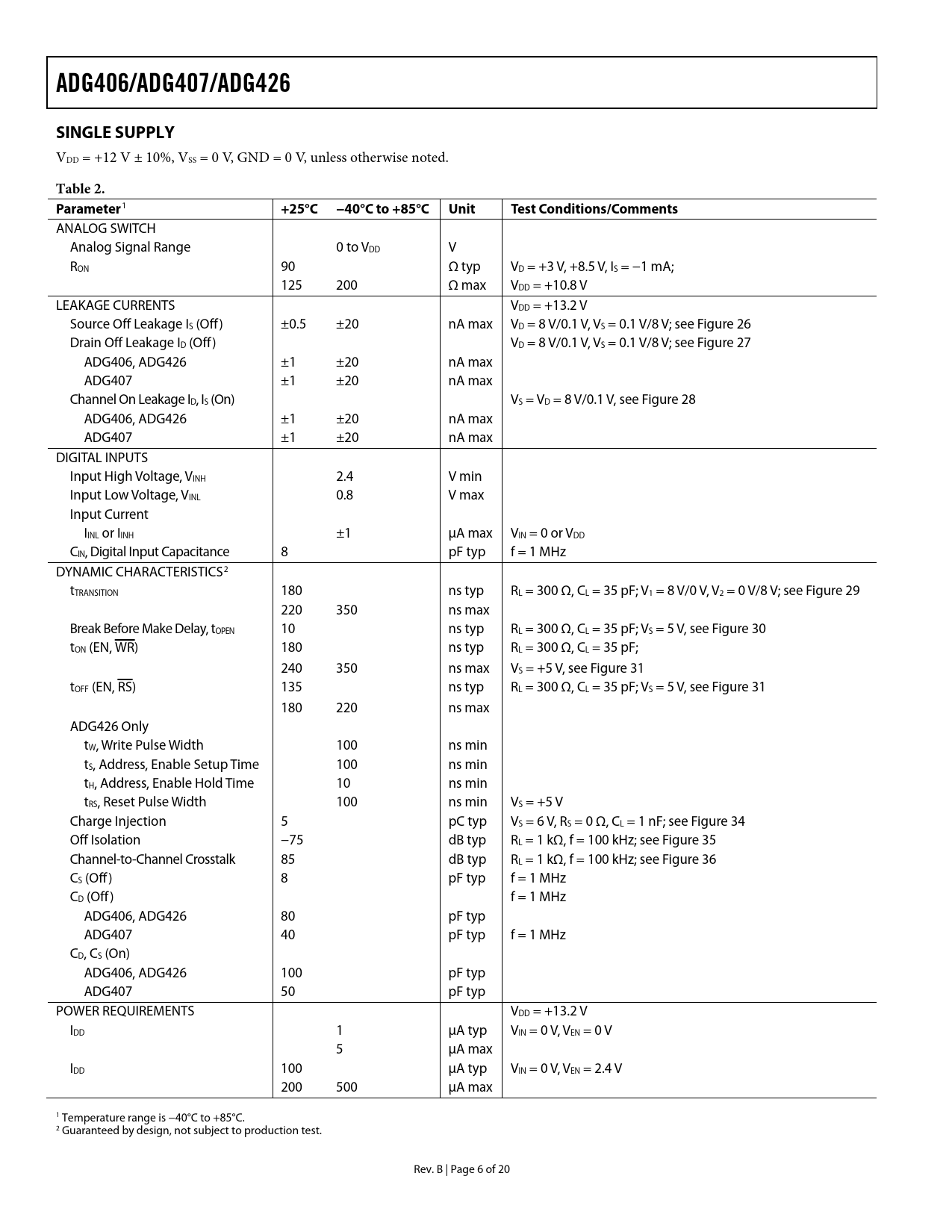

ADG406/ADG407/ADG426 SINGLE SUPPLY
VDD = +12 V ± 10%, VSS = 0 V, GND = 0 V, unless otherwise noted.
Table 2. Parameter
1
+25°C −40°C to +85°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 to VDD V RON 90 Ω typ VD = +3 V, +8.5 V, IS = −1 mA; 125 200 Ω max VDD = +10.8 V LEAKAGE CURRENTS VDD = +13.2 V Source Off Leakage IS (Off ) ±0.5 ±20 nA max VD = 8 V/0.1 V, VS = 0.1 V/8 V; see Figure 26 Drain Off Leakage ID (Off ) VD = 8 V/0.1 V, VS = 0.1 V/8 V; see Figure 27 ADG406, ADG426 ±1 ±20 nA max ADG407 ±1 ±20 nA max Channel On Leakage ID, IS (On) VS = VD = 8 V/0.1 V, see Figure 28 ADG406, ADG426 ±1 ±20 nA max ADG407 ±1 ±20 nA max DIGITAL INPUTS Input High Voltage, VINH 2.4 V min Input Low Voltage, VINL 0.8 V max Input Current IINL or IINH ±1 μA max VIN = 0 or VDD CIN, Digital Input Capacitance 8 pF typ f = 1 MHz DYNAMIC CHARACTERISTICS2 tTRANSITION 180 ns typ RL = 300 Ω, CL = 35 pF; V1 = 8 V/0 V, V2 = 0 V/8 V; see Figure 29 220 350 ns max Break Before Make Delay, tOPEN 10 ns typ RL = 300 Ω, CL = 35 pF; VS = 5 V, see Figure 30 tON (EN, WR) 180 ns typ RL = 300 Ω, CL = 35 pF; 240 350 ns max VS = +5 V, see Figure 31 tOFF (EN, RS) 135 ns typ RL = 300 Ω, CL = 35 pF; VS = 5 V, see Figure 31 180 220 ns max ADG426 Only tW, Write Pulse Width 100 ns min tS, Address, Enable Setup Time 100 ns min tH, Address, Enable Hold Time 10 ns min tRS, Reset Pulse Width 100 ns min VS = +5 V Charge Injection 5 pC typ VS = 6 V, RS = 0 Ω, CL = 1 nF; see Figure 34 Off Isolation −75 dB typ RL = 1 kΩ, f = 100 kHz; see Figure 35 Channel-to-Channel Crosstalk 85 dB typ RL = 1 kΩ, f = 100 kHz; see Figure 36 CS (Off ) 8 pF typ f = 1 MHz CD (Off ) f = 1 MHz ADG406, ADG426 80 pF typ ADG407 40 pF typ f = 1 MHz CD, CS (On) ADG406, ADG426 100 pF typ ADG407 50 pF typ POWER REQUIREMENTS VDD = +13.2 V IDD 1 μA typ VIN = 0 V, VEN = 0 V 5 μA max IDD 100 μA typ VIN = 0 V, VEN = 2.4 V 200 500 μA max 1 Temperature range is −40°C to +85°C. 2 Guaranteed by design, not subject to production test. Rev. B | Page 6 of 20 Document Outline FEATURES APPLICATIONS PRODUCT HIGHLIGHTS FUNCTIONAL BLOCK DIAGRAMS TABLE OF CONTENTS REVISION HISTORY GENERAL DESCRIPTION SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ADG426 TIMING DIAGRAMS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
