Datasheet T1610, T1635, T1650, BTA16, BTB16 (STMicroelectronics)
| Fabricante | STMicroelectronics |
| Descripción | Snubberless, logic level and standard 16 A Triacs |
| Páginas / Página | 18 / 1 — T1610, T1635, T1650. BTA16, BTB16. Features. Applications. Description. … |
| Formato / tamaño de archivo | PDF / 232 Kb |
| Idioma del documento | Inglés |
T1610, T1635, T1650. BTA16, BTB16. Features. Applications. Description. Product status link. Product summary. IT(RMS). VDRM/VRRM
Línea de modelo para esta hoja de datos
- BTA16-600B BTA16-600BRG BTA16-600BWRG BTA16-600CRG BTA16-600CWRG BTA16-600SWRG BTA16-800BRG BTA16-800BWRG BTA16-800CWRG BTA16-800SWRG
Versión de texto del documento
T1610, T1635, T1650 BTA16, BTB16

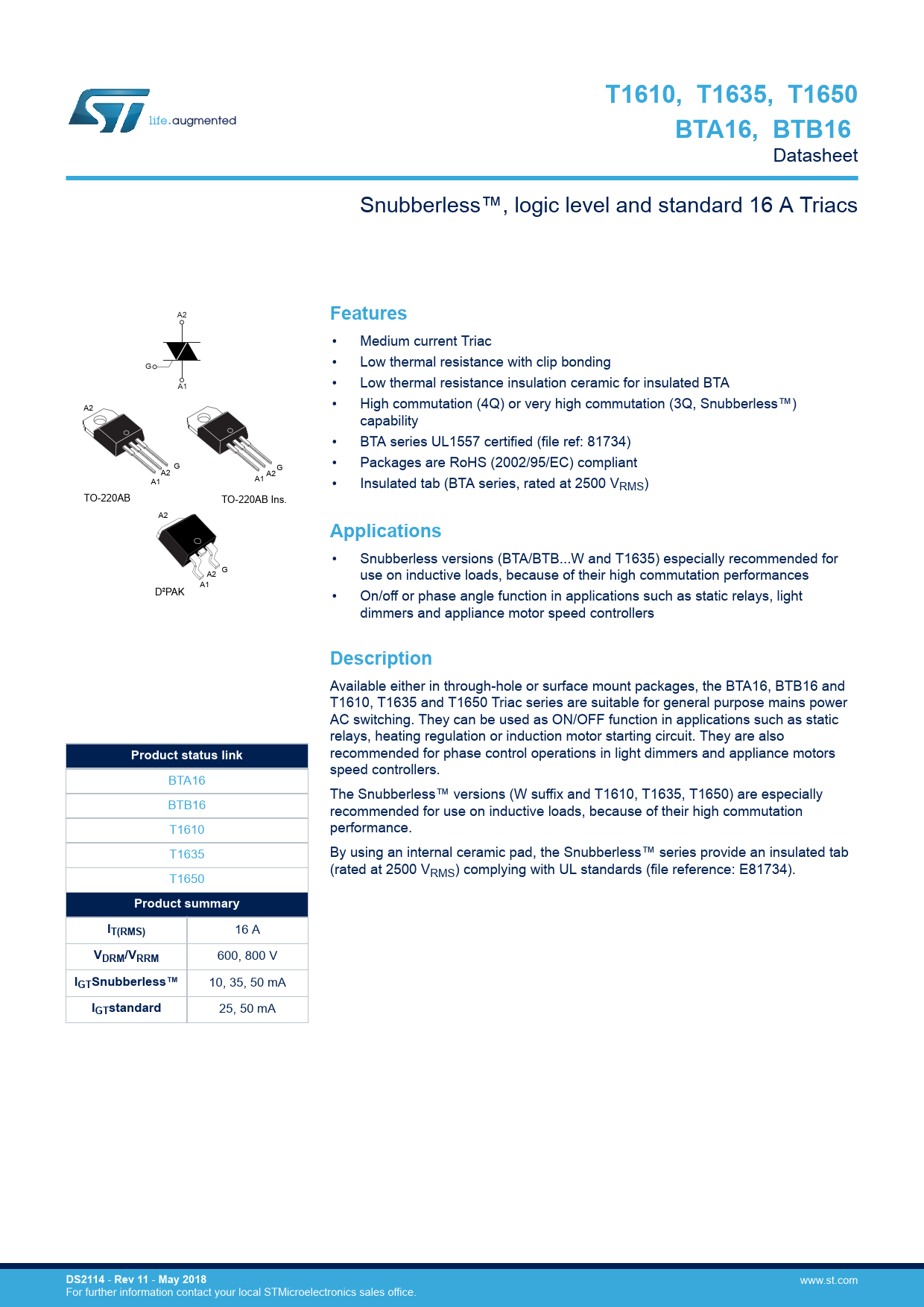

Datasheet Snubberless™, logic level and standard 16 A Triacs A2
Features
• Medium current Triac • Low thermal resistance with clip bonding G A1 • Low thermal resistance insulation ceramic for insulated BTA A2 • High commutation (4Q) or very high commutation (3Q, Snubberless™) capability • BTA series UL1557 certified (file ref: 81734) G • Packages are RoHS (2002/95/EC) compliant G A2 A2 A1 A1 • Insulated tab (BTA series, rated at 2500 VRMS) TO-220AB TO-220AB Ins. A2
Applications
• Snubberless versions (BTA/BTB...W and T1635) especially recommended for G A2 use on inductive loads, because of their high commutation performances A1 D²PAK • On/off or phase angle function in applications such as static relays, light dimmers and appliance motor speed controllers
Description
Available either in through-hole or surface mount packages, the BTA16, BTB16 and T1610, T1635 and T1650 Triac series are suitable for general purpose mains power AC switching. They can be used as ON/OFF function in applications such as static relays, heating regulation or induction motor starting circuit. They are also
Product status link
recommended for phase control operations in light dimmers and appliance motors speed controllers. BTA16 The Snubberless™ versions (W suffix and T1610, T1635, T1650) are especially BTB16 recommended for use on inductive loads, because of their high commutation T1610 performance. T1635 By using an internal ceramic pad, the Snubberless™ series provide an insulated tab (rated at 2500 VRMS) complying with UL standards (file reference: E81734). T1650
Product summary IT(RMS)
16 A
VDRM/VRRM
600, 800 V
IGTSnubberless™
10, 35, 50 mA
IGTstandard
25, 50 mA
DS2114
-
Rev 11
-
May 2018
www.st.com For further information contact your local STMicroelectronics sales office. Document Outline 1 Characteristics 1.1 Characteristics (curves) 2 Package information 2.1 TO-220AB Insulated and non Insulated package information 2.1.1 TO-220AB Insulated and non Insulated package information 2.2 D²PAK package information 2.2.1 D²PAK package information 3 Ordering information 3.1 Product selector 3.2 Ordering information Revision history
