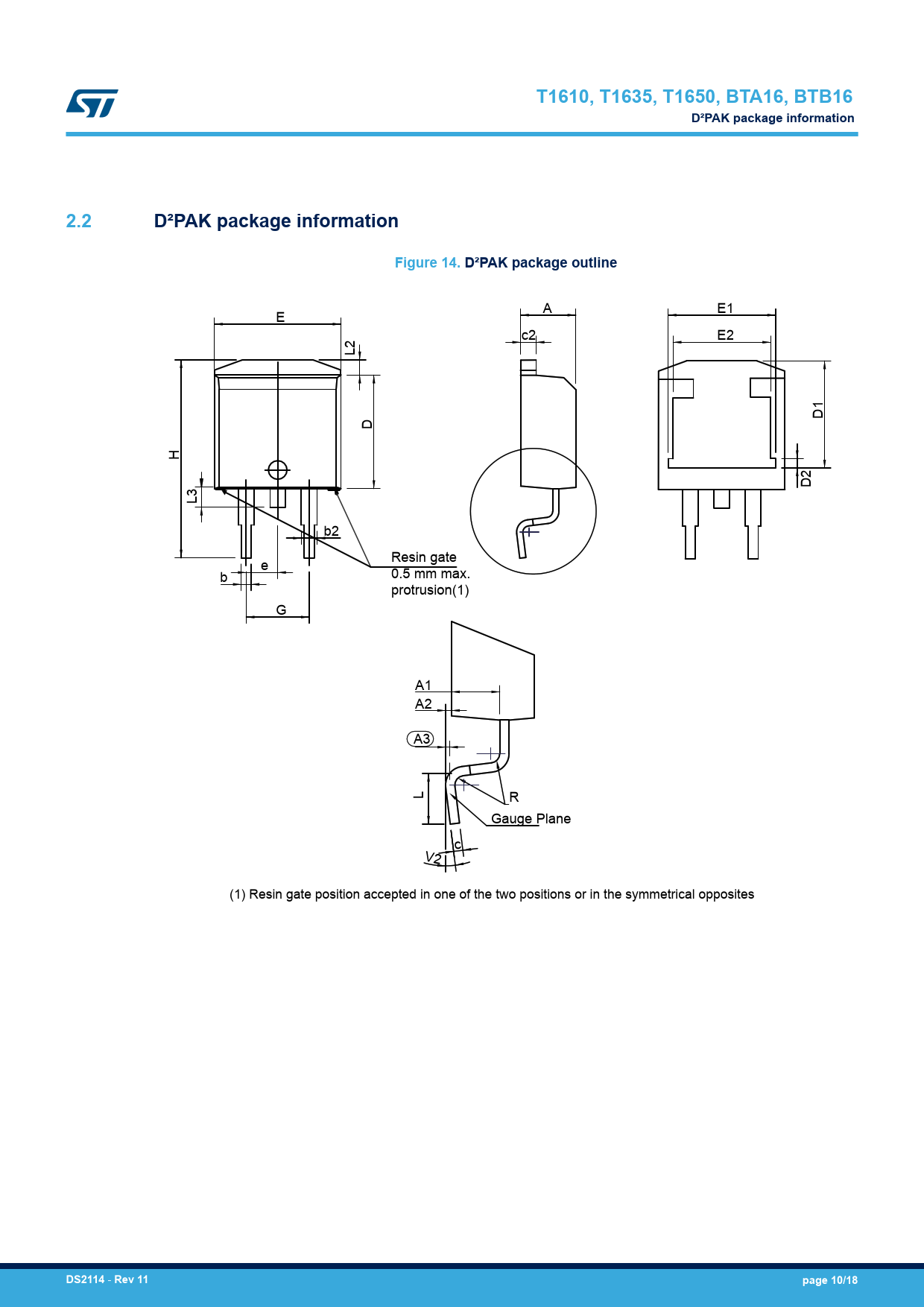

T1610, T1635, T1650, BTA16, BTB16. D²PAK package information. 2.2. Figure 14. D²PAK package outline. DS2114. Rev 11. page 10/18
Línea de modelo para esta hoja de datos
- BTA16-600B BTA16-600BRG BTA16-600BWRG BTA16-600CRG BTA16-600CWRG BTA16-600SWRG BTA16-800BRG BTA16-800BWRG BTA16-800CWRG BTA16-800SWRG
Versión de texto del documento
T1610, T1635, T1650, BTA16, BTB16 D²PAK package information 2.2 D²PAK package information Figure 14. D²PAK package outline
A E1 E c2 E2 L2 D1 D H D2 L3 b2 Resin gate e b 0.5 mm max. protrusion(1) G A1 A2 A3 L R Gauge Plane c V2 (1) Resin gate position accepted in one of the two positions or in the symmetrical opposites
DS2114
-
Rev 11 page 10/18
