Datasheet ADN4624 (Analog Devices) - 7
| Fabricante | Analog Devices |
| Descripción | 5.7 kV RMS, Quad-Channel LVDS 2.5 Gigabit Isolator |
| Páginas / Página | 20 / 7 — ADN4624. SPECIFICATIONS. Table 7. Description. Test Conditions/Comments1. … |
| Formato / tamaño de archivo | PDF / 3.5 Mb |
| Idioma del documento | Inglés |
ADN4624. SPECIFICATIONS. Table 7. Description. Test Conditions/Comments1. Symbol. Characteristic. Unit
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 7 link to page 7 Data Sheet
ADN4624 SPECIFICATIONS Table 7. Description Test Conditions/Comments1 Symbol Characteristic Unit
Reinforced VPEAK = 16 kV, 1.2 µs rise time, 50 µs, 50% fall time VIOSM 10000 VPEAK Safety Limiting Values Maximum value allowed in the event of a failure (see Figure 2) Maximum Junction Temperature TS 150 °C Total Power Dissipation at 25°C PS 2.74 W Insulation Resistance at TS VIO = 500 V RS >109 Ω 1 For information about tM, tINI, and VIO, see DIN V VDE V 0884-11.

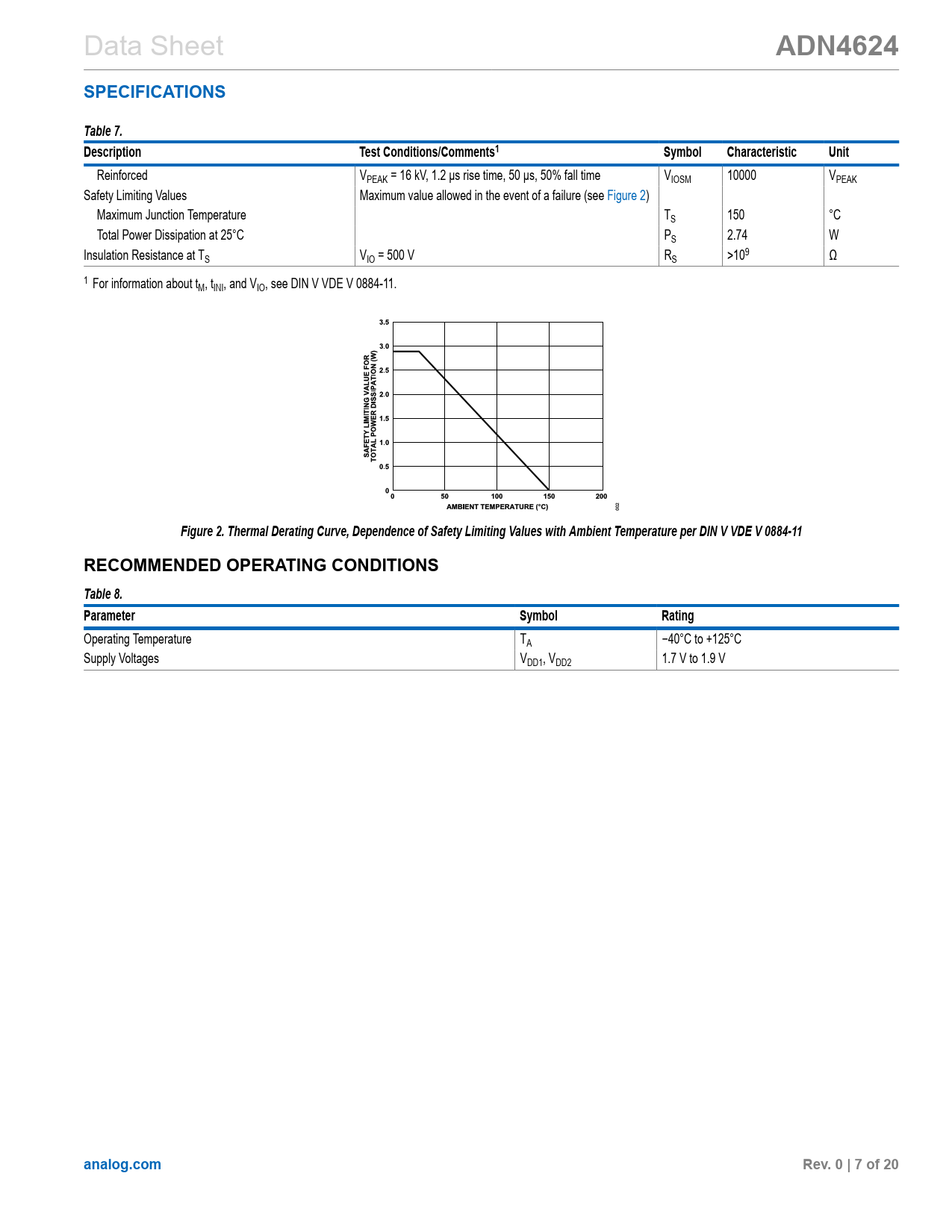

Figure 2. Thermal Derating Curve, Dependence of Safety Limiting Values with Ambient Temperature per DIN V VDE V 0884-11 RECOMMENDED OPERATING CONDITIONS Table 8. Parameter Symbol Rating
Operating Temperature TA −40°C to +125°C Supply Voltages VDD1, VDD2 1.7 V to 1.9 V
analog.com Rev. 0 | 7 of 20
