ADN4624. TYPICAL PERFORMANCE CHARACTERISTICS. Figure 4. Supply Current vs. Input Clock Frequency
Línea de modelo para esta hoja de datos
Versión de texto del documento
Data Sheet
ADN4624 TYPICAL PERFORMANCE CHARACTERISTICS
VDD1 = VDD2 = 1.8 V, TA = 25°C, REFRESH1 = GND1, REFRESH2 = GND2, RL = 100 Ω, 1.25 GHz clock input with |VID| = 200 mV, VIC = 1.2 V, and tR and tF < 0.05 ns, unless otherwise noted.

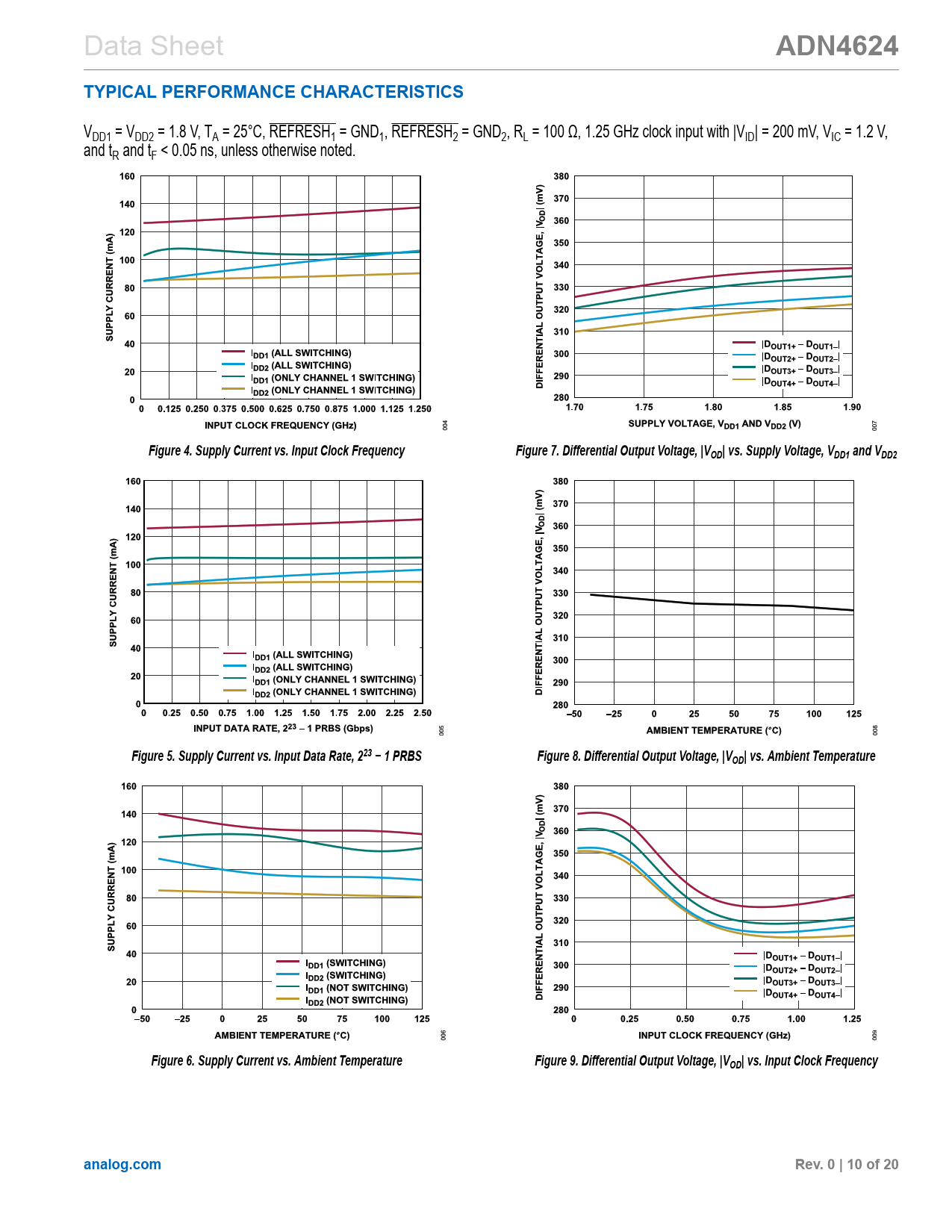

Figure 4. Supply Current vs. Input Clock Frequency Figure 7. Differential Output Voltage, |VOD| vs. Supply Voltage, VDD1 and VDD2 Figure 5. Supply Current vs. Input Data Rate, 223 − 1 PRBS Figure 8. Differential Output Voltage, |VOD| vs. Ambient Temperature Figure 6. Supply Current vs. Ambient Temperature Figure 9. Differential Output Voltage, |VOD| vs. Input Clock Frequency analog.com Rev. 0 | 10 of 20
