Datasheet C2M0045170D (Wolfspeed) - 8
| Fabricante | Wolfspeed |
| Descripción | Silicon Carbide Power MOSFET 1700 V 72 A 45 mΩ |
| Páginas / Página | 10 / 8 — Test Circuit Schematic. ESD Ratings. ESD Test. Total Devices Sampled. … |
| Formato / tamaño de archivo | PDF / 965 Kb |
| Idioma del documento | Inglés |
Test Circuit Schematic. ESD Ratings. ESD Test. Total Devices Sampled. Resulting Classification
Línea de modelo para esta hoja de datos
Versión de texto del documento

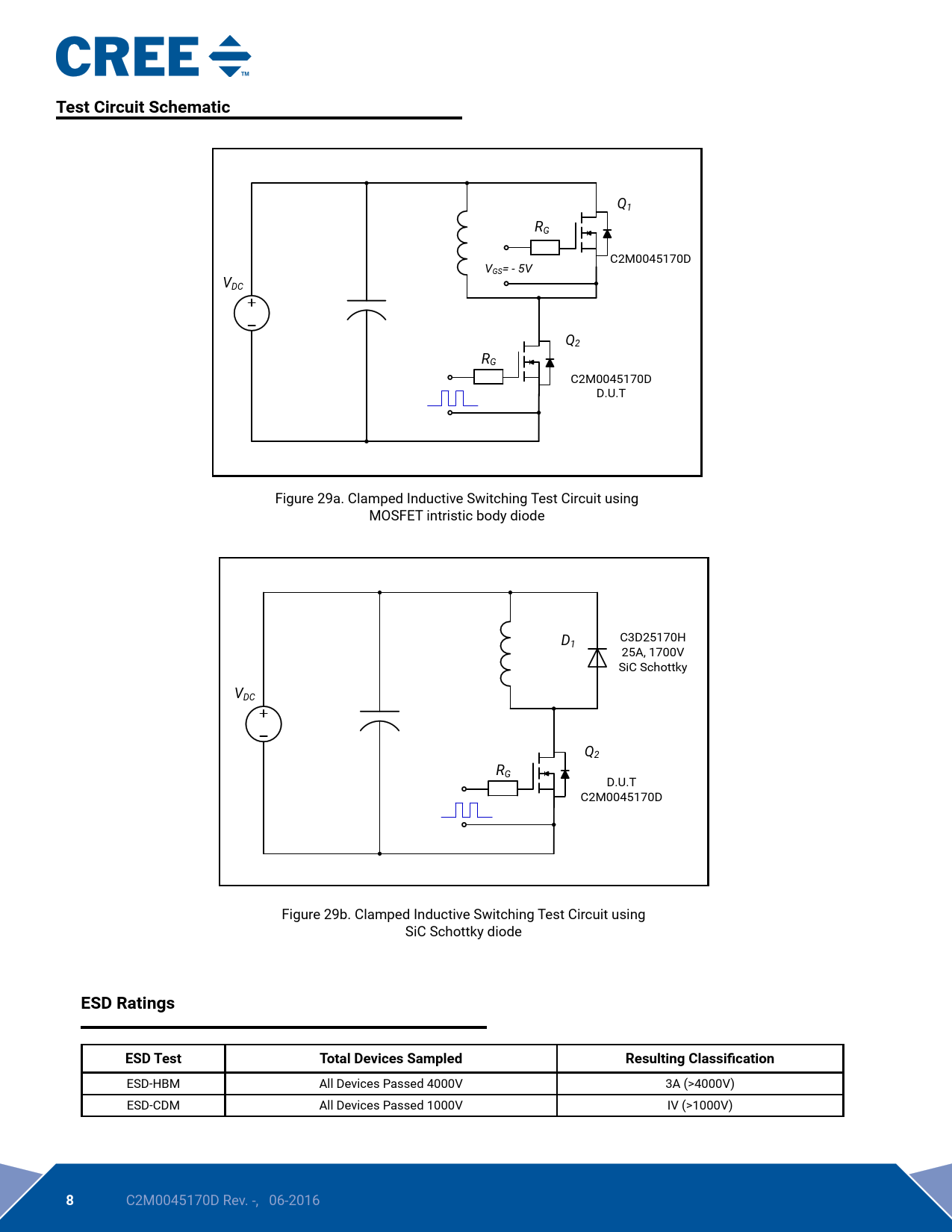

Test Circuit Schematic
Q1 RG C2M0045170D VGS= - 5V VDC Q2 RG C2M0045170D D.U.T Figure 29a. Clamped Inductive Switching Test Circuit using MOSFET intristic body diode D C3D25170H 1 25A, 1700V SiC Schottky VDC Q2 RG D.U.T C2M0045170D Figure 29b. Clamped Inductive Switching Test Circuit using SiC Schottky diode
ESD Ratings ESD Test Total Devices Sampled Resulting Classification
ESD-HBM All Devices Passed 4000V 3A (>4000V) ESD-CDM All Devices Passed 1000V IV (>1000V)
8
C2M0045170D Rev. -, 06-2016
Q1 RG C2M0045170D VGS= - 5V VDC Q2 RG C2M0045170D D.U.T Figure 29a. Clamped Inductive Switching Test Circuit using MOSFET intristic body diode D C3D25170H 1 25A, 1700V SiC Schottky VDC Q2 RG D.U.T C2M0045170D Figure 29b. Clamped Inductive Switching Test Circuit using SiC Schottky diode
ESD Ratings ESD Test Total Devices Sampled Resulting Classification
ESD-HBM All Devices Passed 4000V 3A (>4000V) ESD-CDM All Devices Passed 1000V IV (>1000V)
8
C2M0045170D Rev. -, 06-2016
