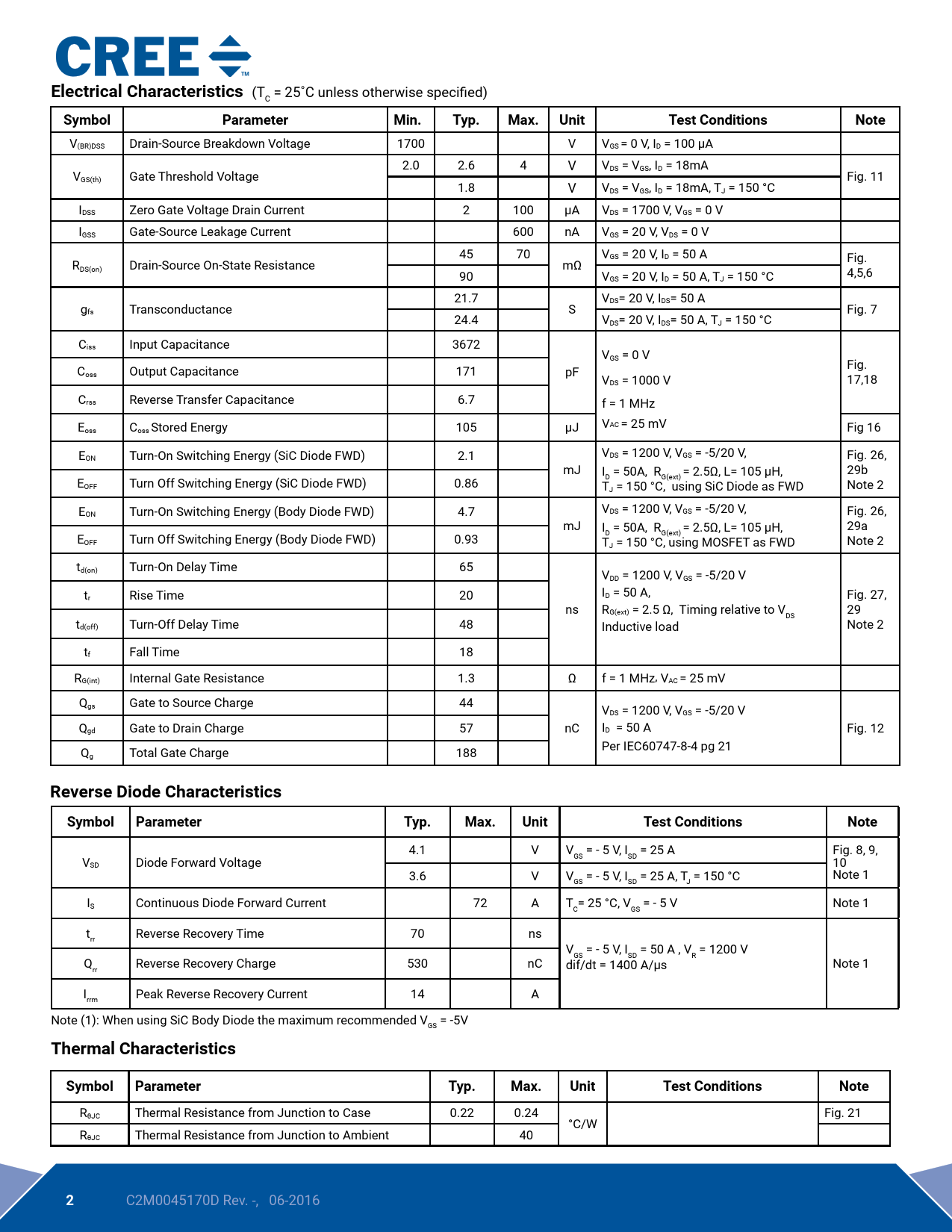

Electrical Characteristics
(T = 25˚C unless otherwise specified) C
Symbol Parameter Min. Typ. Max. Unit Test Conditions Note
V(BR)DSS Drain-Source Breakdown Voltage 1700 V VGS = 0 V, ID = 100 μA 2.0 2.6 4 V V V DS = VGS, ID = 18mA GS(th) Gate Threshold Voltage Fig. 11 1.8 V VDS = VGS, ID = 18mA, TJ = 150 °C IDSS Zero Gate Voltage Drain Current 2 100 μA VDS = 1700 V, VGS = 0 V IGSS Gate-Source Leakage Current 600 nA VGS = 20 V, VDS = 0 V 45 70 V R GS = 20 V, ID = 50 A Fig. DS(on) Drain-Source On-State Resistance mΩ 4,5,6 90 VGS = 20 V, ID = 50 A, TJ = 150 °C 21.7 V g DS= 20 V, IDS= 50 A fs Transconductance S Fig. 7 24.4 VDS= 20 V, IDS= 50 A, TJ = 150 °C Ciss Input Capacitance 3672 VGS = 0 V Coss Output Capacitance 171 pF Fig. VDS = 1000 V 17,18 Crss Reverse Transfer Capacitance 6.7 f = 1 MHz VAC = 25 mV Eoss Coss Stored Energy 105 μJ Fig 16 E V ON Turn-On Switching Energy (SiC Diode FWD) 2.1 DS = 1200 V, VGS = -5/20 V, Fig. 26, mJ I = 50A, R = 2.5Ω, L= 105 μH, 29b D G(ext) EOFF Turn Off Switching Energy (SiC Diode FWD) 0.86 T Note 2 J = 150 °C, using SiC Diode as FWD E V ON Turn-On Switching Energy (Body Diode FWD) 4.7 DS = 1200 V, VGS = -5/20 V, Fig. 26, mJ I = 50A, R = 2.5Ω, L= 105 μH, 29a D G(ext) EOFF Turn Off Switching Energy (Body Diode FWD) 0.93 T Note 2 J = 150 °C, using MOSFET as FWD td(on) Turn-On Delay Time 65 VDD = 1200 V, VGS = -5/20 V t ID = 50 A, r Rise Time 20 Fig. 27, ns RG(ext) = 2.5 Ω, Timing relative to V 29 DS td(off) Turn-Off Delay Time 48 Inductive load Note 2 tf Fall Time 18 RG(int) Internal Gate Resistance 1.3 Ω f = 1 MHz, VAC = 25 mV Qgs Gate to Source Charge 44 VDS = 1200 V, VGS = -5/20 V Qgd Gate to Drain Charge 57 nC ID = 50 A Fig. 12 Per IEC60747-8-4 pg 21 Qg Total Gate Charge 188
Reverse Diode Characteristics Symbol Parameter Typ. Max. Unit Test Conditions Note
4.1 V V = - 5 V, I = 25 A Fig. 8, 9, V GS SD SD Diode Forward Voltage 10 3.6 V V = - 5 V, I = 25 A, T = 150 °C Note 1 GS SD J IS Continuous Diode Forward Current 72 A T = 25 °C, V = - 5 V Note 1 C GS t Reverse Recovery Time 70 ns rr V = - 5 V, I = 50 A , V = 1200 V GS SD R Q Reverse Recovery Charge 530 nC rr dif/dt = 1400 A/µs Note 1 I Peak Reverse Recovery Current 14 A rrm Note (1): When using SiC Body Diode the maximum recommended V = -5V GS
Thermal Characteristics Symbol Parameter Typ. Max. Unit Test Conditions Note
RθJC Thermal Resistance from Junction to Case 0.22 0.24 Fig. 21 °C/W RθJC Thermal Resistance from Junction to Ambient 40
2
C2M0045170D Rev. -, 06-2016
