Datasheet PI4ULS5V202Q (Diodes) - 4
| Fabricante | Diodes |
| Descripción | Automotive Qualified 2-BIT Bi-Directional Level Shifter With Automatic Sensing & Ultra Tiny Package |
| Páginas / Página | 10 / 4 — PI4ULS5V202Q. Symbol. Parameter. Test Conditions. Min. Typ. Max. Unit. = … |
| Formato / tamaño de archivo | PDF / 1.1 Mb |
| Idioma del documento | Inglés |

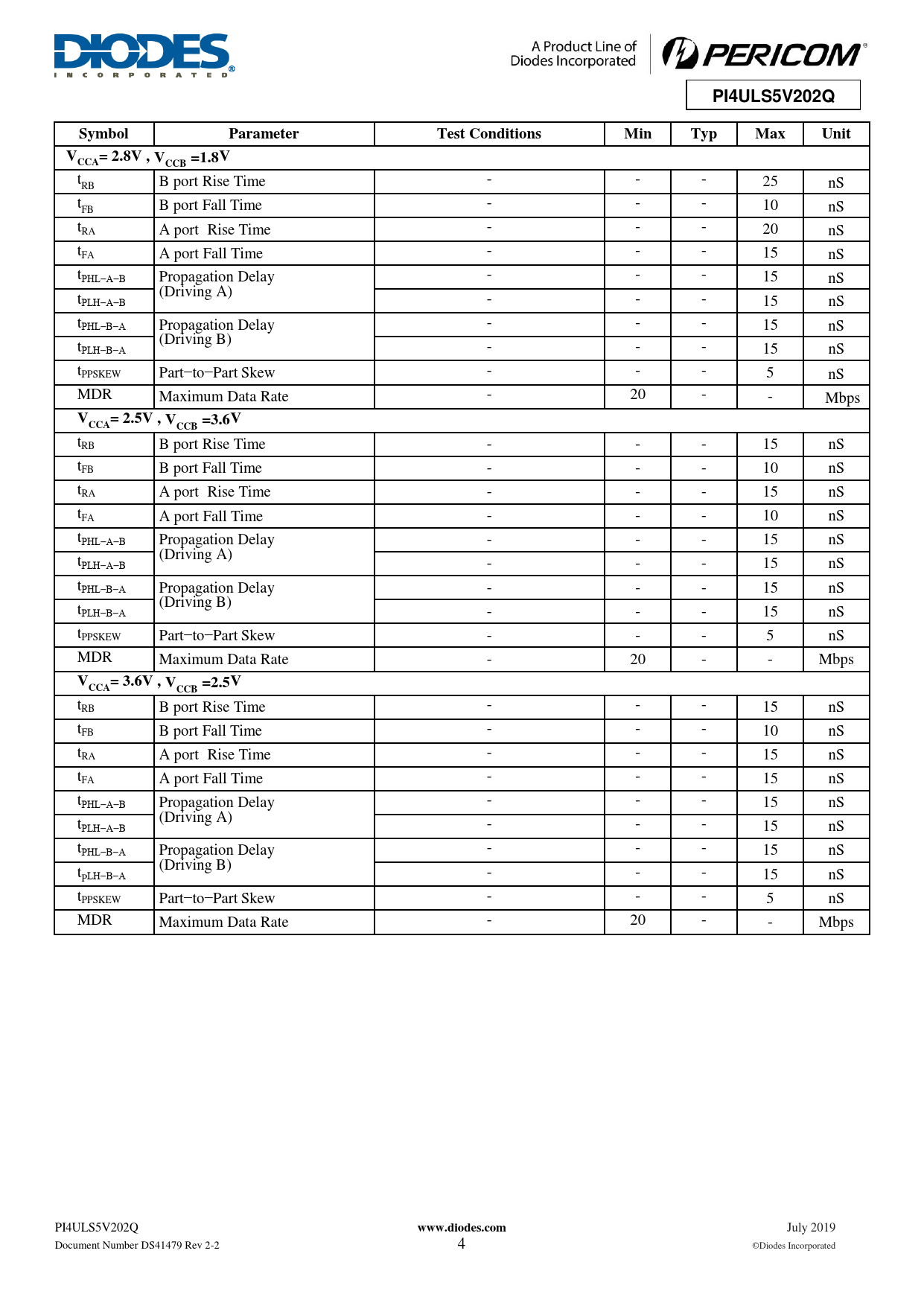

PI4ULS5V202Q. Symbol. Parameter. Test Conditions. Min. Typ. Max. Unit. = 2.8V ,. CCA. VCCB =1.8V. = 2.5V ,. VCCB =3.6V. = 3.6V ,. VCCB =2.5V
Línea de modelo para esta hoja de datos
Versión de texto del documento
PI4ULS5V202Q Symbol Parameter Test Conditions Min Typ Max Unit V = 2.8V , CCA VCCB =1.8V
tRB B port Rise Time - - - 25 nS tFB B port Fall Time - - - 10 nS tRA A port Rise Time - - - 20 nS tFA A port Fall Time - - - 15 nS tPHL−A−B Propagation Delay - - - 15 nS (Driving A) tPLH−A−B - - - 15 nS tPHL−B−A Propagation Delay - - - 15 nS (Driving B) tPLH−B−A - - - 15 nS tPPSKEW Part−to−Part Skew - - - 5 nS MDR Maximum Data Rate - 20 - - Mbps
V = 2.5V , CCA VCCB =3.6V
tRB B port Rise Time - - - 15 nS tFB B port Fall Time - - - 10 nS tRA A port Rise Time - - - 15 nS tFA A port Fall Time - - - 10 nS tPHL−A−B Propagation Delay - - - 15 nS (Driving A) tPLH−A−B - - - 15 nS tPHL−B−A Propagation Delay - - - 15 nS (Driving B) tPLH−B−A - - - 15 nS tPPSKEW Part−to−Part Skew - - - 5 nS MDR Maximum Data Rate - 20 - - Mbps
V = 3.6V , CCA VCCB =2.5V
tRB B port Rise Time - - - 15 nS tFB B port Fall Time - - - 10 nS tRA A port Rise Time - - - 15 nS tFA A port Fall Time - - - 15 nS tPHL−A−B Propagation Delay - - - 15 nS (Driving A) tPLH−A−B - - - 15 nS tPHL−B−A Propagation Delay - - - 15 nS (Driving B) tPLH−B−A - - - 15 nS tPPSKEW Part−to−Part Skew - - - 5 nS MDR Maximum Data Rate - 20 - - Mbps PI4ULS5V202Q
www.diodes.com
July 2019 Document Number DS41479 Rev 2-2 4 © Diodes Incorporated
tRB B port Rise Time - - - 25 nS tFB B port Fall Time - - - 10 nS tRA A port Rise Time - - - 20 nS tFA A port Fall Time - - - 15 nS tPHL−A−B Propagation Delay - - - 15 nS (Driving A) tPLH−A−B - - - 15 nS tPHL−B−A Propagation Delay - - - 15 nS (Driving B) tPLH−B−A - - - 15 nS tPPSKEW Part−to−Part Skew - - - 5 nS MDR Maximum Data Rate - 20 - - Mbps
V = 2.5V , CCA VCCB =3.6V
tRB B port Rise Time - - - 15 nS tFB B port Fall Time - - - 10 nS tRA A port Rise Time - - - 15 nS tFA A port Fall Time - - - 10 nS tPHL−A−B Propagation Delay - - - 15 nS (Driving A) tPLH−A−B - - - 15 nS tPHL−B−A Propagation Delay - - - 15 nS (Driving B) tPLH−B−A - - - 15 nS tPPSKEW Part−to−Part Skew - - - 5 nS MDR Maximum Data Rate - 20 - - Mbps
V = 3.6V , CCA VCCB =2.5V
tRB B port Rise Time - - - 15 nS tFB B port Fall Time - - - 10 nS tRA A port Rise Time - - - 15 nS tFA A port Fall Time - - - 15 nS tPHL−A−B Propagation Delay - - - 15 nS (Driving A) tPLH−A−B - - - 15 nS tPHL−B−A Propagation Delay - - - 15 nS (Driving B) tPLH−B−A - - - 15 nS tPPSKEW Part−to−Part Skew - - - 5 nS MDR Maximum Data Rate - 20 - - Mbps PI4ULS5V202Q
www.diodes.com
July 2019 Document Number DS41479 Rev 2-2 4 © Diodes Incorporated
