Datasheet PI4ULS5V202Q (Diodes) - 3
| Fabricante | Diodes |
| Descripción | Automotive Qualified 2-BIT Bi-Directional Level Shifter With Automatic Sensing & Ultra Tiny Package |
| Páginas / Página | 10 / 3 — PI4ULS5V202Q. DC Electrical Characteristics. Symbol. Parameter. Test … |
| Formato / tamaño de archivo | PDF / 1.1 Mb |
| Idioma del documento | Inglés |
PI4ULS5V202Q. DC Electrical Characteristics. Symbol. Parameter. Test Conditions. Min. Typ. Max. Unit. Note
Línea de modelo para esta hoja de datos
Versión de texto del documento

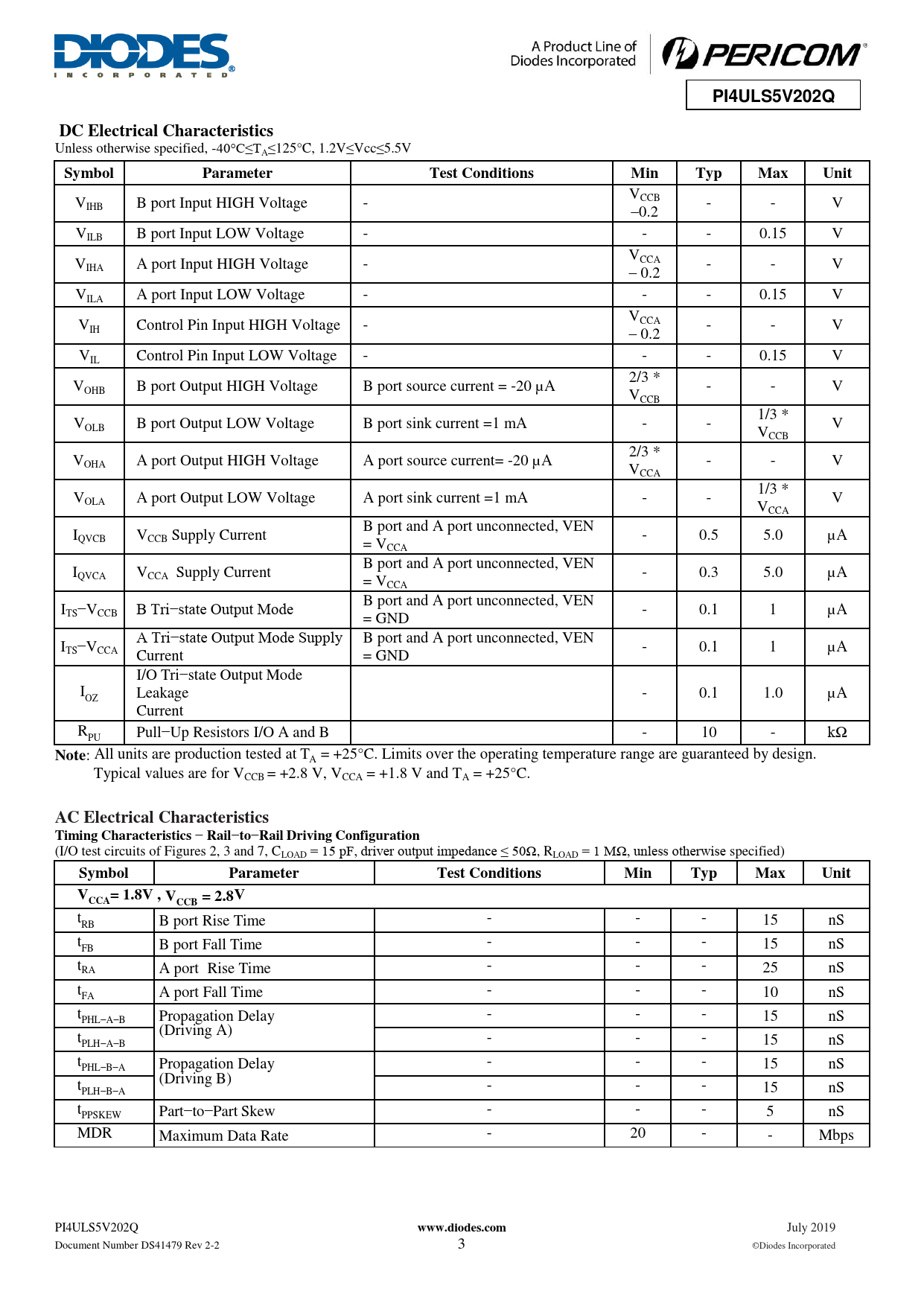

PI4ULS5V202Q DC Electrical Characteristics
Unless otherwise specified, -40°C≤T ≤ A 125°C, 1.2V≤Vcc≤5.5V
Symbol Parameter Test Conditions Min Typ Max Unit
V V CCB IHB B port Input HIGH Voltage - – - - V 0.2 VILB B port Input LOW Voltage - - - 0.15 V V V CCA IHA A port Input HIGH Voltage - – - - V 0.2 VILA A port Input LOW Voltage - - - 0.15 V V V CCA IH Control Pin Input HIGH Voltage - – - - V 0.2 VIL Control Pin Input LOW Voltage - - - 0.15 V 2/3 * VOHB B port Output HIGH Voltage B port source current = -20 µA - - V VCCB 1/3 * VOLB B port Output LOW Voltage B port sink current =1 mA - - V VCCB 2/3 * VOHA A port Output HIGH Voltage A port source current= -20 µA - - V VCCA 1/3 * VOLA A port Output LOW Voltage A port sink current =1 mA - - V VCCA B port and A port unconnected, VEN IQVCB VCCB Supply Current - 0.5 5.0 µA = VCCA B port and A port unconnected, VEN IQVCA VCCA Supply Current - 0.3 5.0 µA = VCCA B port and A port unconnected, VEN I − TS VCCB B Tri−state Output Mode - 0.1 1 µA = GND A Tri−state Output Mode Supply B port and A port unconnected, VEN I − TS VCCA - 0.1 1 µA Current = GND I/O Tri−state Output Mode I Leakage - 0.1 1.0 µA OZ Current RPU Pull−Up Resistors I/O A and B - 10 - kΩ
Note
: All units are production tested at TA = +25°C. Limits over the operating temperature range are guaranteed by design. Typical values are for VCCB = +2.8 V, VCCA = +1.8 V and TA = +25°C.
AC Electrical Characteristics Timing Characteristics − Rail−to−Rail Driving Configuration
(I/O test circuits of Figures 2, 3 and 7, CLOAD = 15 pF, driver output impedance ≤ 50Ω, RLOAD = 1 MΩ, unless otherwise specified)
Symbol Parameter Test Conditions Min Typ Max Unit V = 1.8V , CCA VCCB = 2.8V
tRB B port Rise Time - - - 15 nS tFB B port Fall Time - - - 15 nS tRA A port Rise Time - - - 25 nS tFA A port Fall Time - - - 10 nS t - - - PHL−A−B Propagation Delay 15 nS (Driving A) tPLH−A−B - - - 15 nS t - - - PHL−B−A Propagation Delay 15 nS (Driving B) tPLH−B−A - - - 15 nS tPPSKEW Part−to−Part Skew - - - 5 nS MDR Maximum Data Rate - 20 - - Mbps PI4ULS5V202Q
www.diodes.com
July 2019 Document Number DS41479 Rev 2-2 3 © Diodes Incorporated
