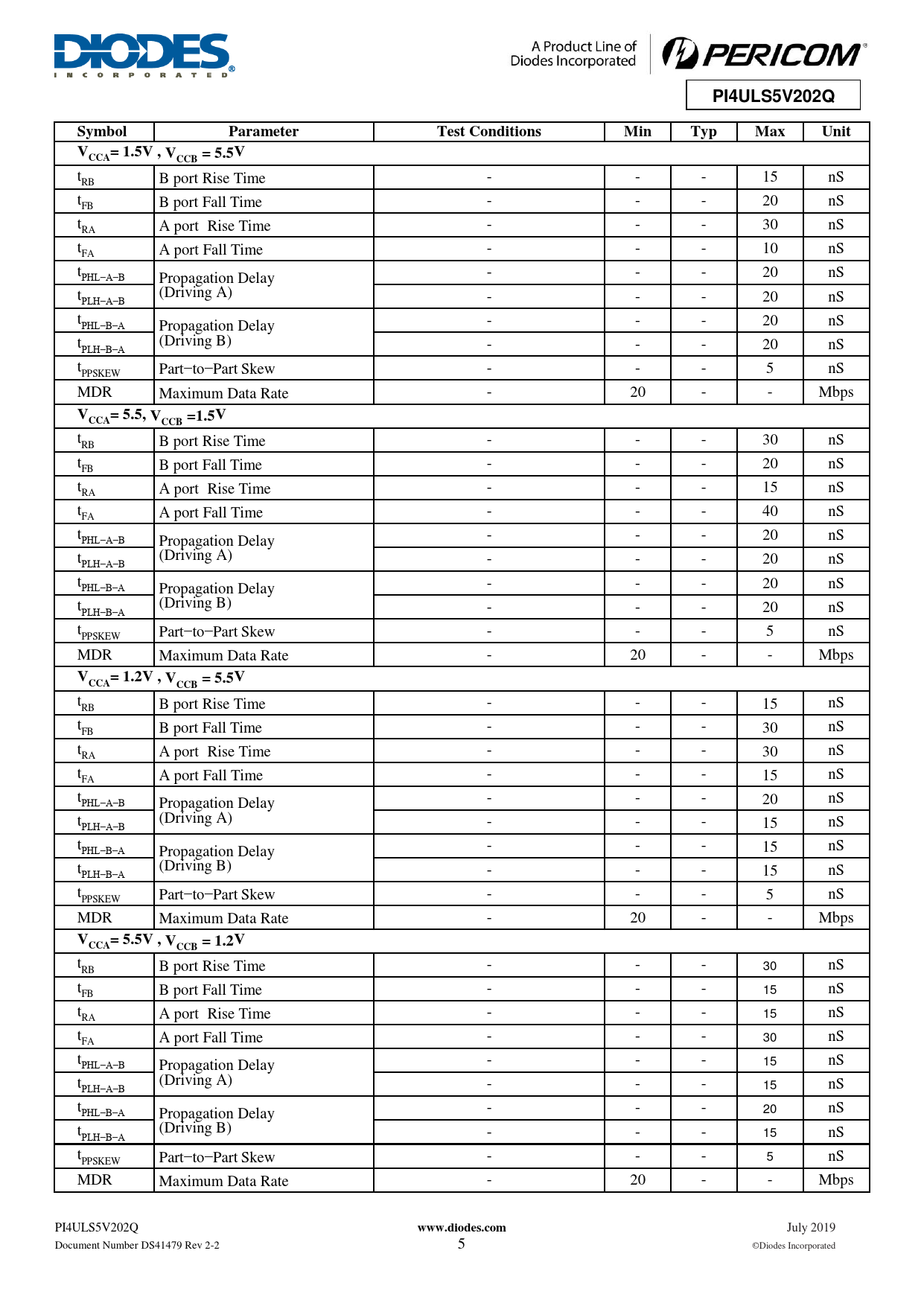

PI4ULS5V202Q. Symbol. Parameter. Test Conditions. Min. Typ. Max. Unit. = 1.5V ,. CCA. VCCB = 5.5V. = 5.5,. VCCB =1.5V. = 1.2V ,. = 5.5V ,
Línea de modelo para esta hoja de datos
Versión de texto del documento
PI4ULS5V202Q Symbol Parameter Test Conditions Min Typ Max Unit V = 1.5V , CCA VCCB = 5.5V
tRB B port Rise Time - - - 15 nS tFB B port Fall Time - - - 20 nS tRA A port Rise Time - - - 30 nS tFA A port Fall Time - - - 10 nS tPHL−A−B Propagation Delay - - - 20 nS t (Driving A) PLH−A−B - - - 20 nS tPHL−B−A Propagation Delay - - - 20 nS t (Driving B) PLH−B−A - - - 20 nS tPPSKEW Part−to−Part Skew - - - 5 nS MDR Maximum Data Rate - 20 - - Mbps
V = 5.5, CCA VCCB =1.5V
tRB B port Rise Time - - - 30 nS tFB B port Fall Time - - - 20 nS tRA A port Rise Time - - - 15 nS tFA A port Fall Time - - - 40 nS tPHL−A−B Propagation Delay - - - 20 nS t (Driving A) PLH−A−B - - - 20 nS tPHL−B−A Propagation Delay - - - 20 nS (Driving B) t PLH−B−A - - - 20 nS tPPSKEW Part−to−Part Skew - - - 5 nS MDR Maximum Data Rate - 20 - - Mbps
V = 1.2V , CCA VCCB = 5.5V
tRB B port Rise Time - - - 15 nS tFB B port Fall Time - - - 30 nS tRA A port Rise Time - - - 30 nS tFA A port Fall Time - - - 15 nS tPHL−A−B Propagation Delay - - - 20 nS (Driving A) t PLH−A−B - - - 15 nS tPHL−B−A Propagation Delay - - - 15 nS t (Driving B) PLH−B−A - - - 15 nS tPPSKEW Part−to−Part Skew - - - 5 nS MDR Maximum Data Rate - 20 - - Mbps
V = 5.5V , CCA VCCB = 1.2V
tRB B port Rise Time - - - 30 nS tFB B port Fall Time - - - 15 nS tRA A port Rise Time - - - 15 nS tFA A port Fall Time - - - 30 nS tPHL−A−B Propagation Delay - - - 15 nS (Driving A) t PLH−A−B - - - 15 nS tPHL−B−A Propagation Delay - - - 20 nS (Driving B) t PLH−B−A - - - 15 nS tPPSKEW Part−to−Part Skew - - - 5 nS MDR Maximum Data Rate - 20 - - Mbps PI4ULS5V202Q
www.diodes.com
July 2019 Document Number DS41479 Rev 2-2 5 © Diodes Incorporated
tRB B port Rise Time - - - 15 nS tFB B port Fall Time - - - 20 nS tRA A port Rise Time - - - 30 nS tFA A port Fall Time - - - 10 nS tPHL−A−B Propagation Delay - - - 20 nS t (Driving A) PLH−A−B - - - 20 nS tPHL−B−A Propagation Delay - - - 20 nS t (Driving B) PLH−B−A - - - 20 nS tPPSKEW Part−to−Part Skew - - - 5 nS MDR Maximum Data Rate - 20 - - Mbps
V = 5.5, CCA VCCB =1.5V
tRB B port Rise Time - - - 30 nS tFB B port Fall Time - - - 20 nS tRA A port Rise Time - - - 15 nS tFA A port Fall Time - - - 40 nS tPHL−A−B Propagation Delay - - - 20 nS t (Driving A) PLH−A−B - - - 20 nS tPHL−B−A Propagation Delay - - - 20 nS (Driving B) t PLH−B−A - - - 20 nS tPPSKEW Part−to−Part Skew - - - 5 nS MDR Maximum Data Rate - 20 - - Mbps
V = 1.2V , CCA VCCB = 5.5V
tRB B port Rise Time - - - 15 nS tFB B port Fall Time - - - 30 nS tRA A port Rise Time - - - 30 nS tFA A port Fall Time - - - 15 nS tPHL−A−B Propagation Delay - - - 20 nS (Driving A) t PLH−A−B - - - 15 nS tPHL−B−A Propagation Delay - - - 15 nS t (Driving B) PLH−B−A - - - 15 nS tPPSKEW Part−to−Part Skew - - - 5 nS MDR Maximum Data Rate - 20 - - Mbps
V = 5.5V , CCA VCCB = 1.2V
tRB B port Rise Time - - - 30 nS tFB B port Fall Time - - - 15 nS tRA A port Rise Time - - - 15 nS tFA A port Fall Time - - - 30 nS tPHL−A−B Propagation Delay - - - 15 nS (Driving A) t PLH−A−B - - - 15 nS tPHL−B−A Propagation Delay - - - 20 nS (Driving B) t PLH−B−A - - - 15 nS tPPSKEW Part−to−Part Skew - - - 5 nS MDR Maximum Data Rate - 20 - - Mbps PI4ULS5V202Q
www.diodes.com
July 2019 Document Number DS41479 Rev 2-2 5 © Diodes Incorporated
