Datasheet PI4ULS5V202Q (Diodes)

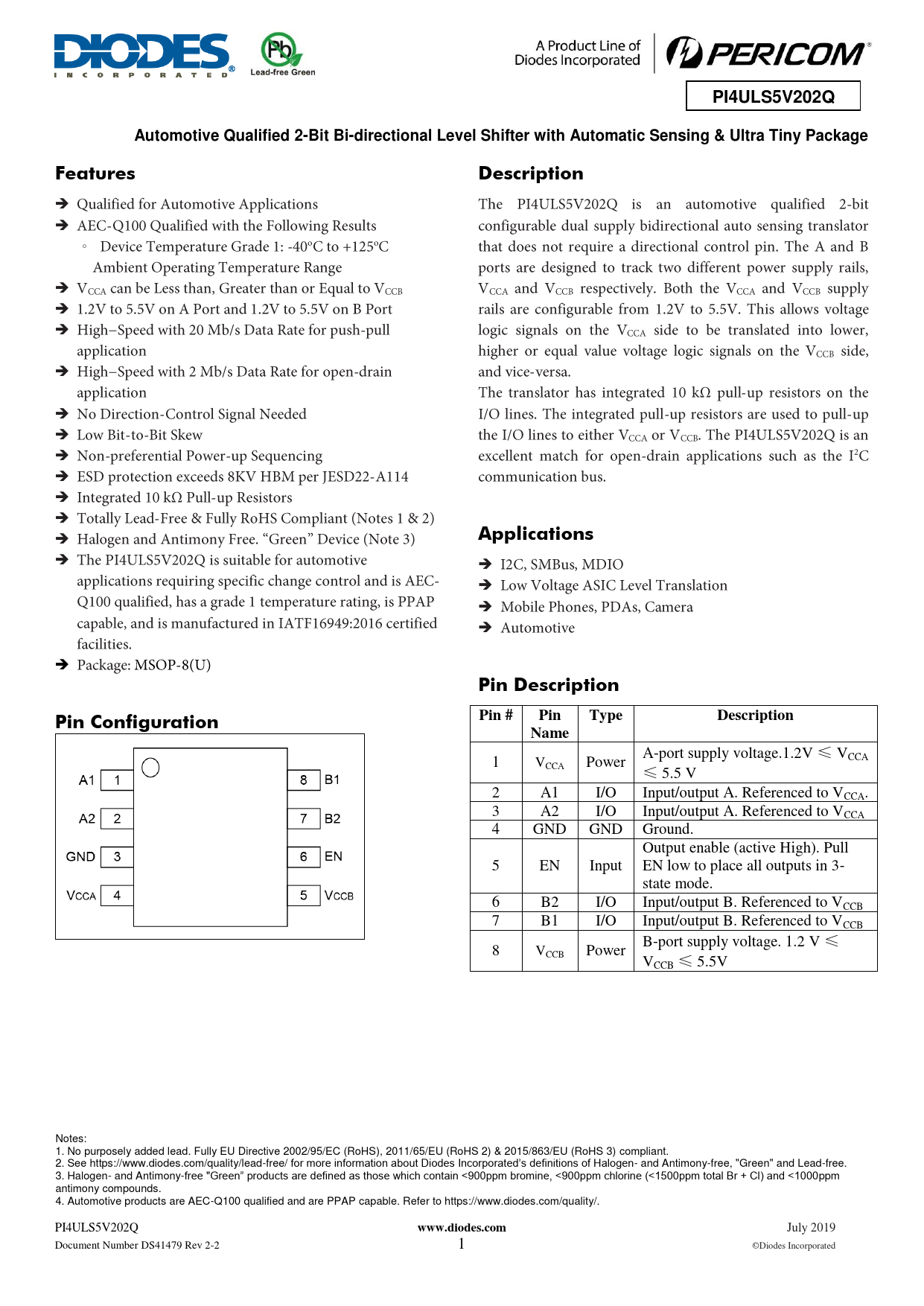

PI4ULS5V202Q Automotive Qualified 2-Bit Bi-directional Level Shifter with Automatic Sensing & Ultra Tiny Package Features Description
  。           
Applications
     
Pin Description Pin Configuration Pin # Pin Type Description Name
A-port supply voltage.1.2V ≤ V 1 V CCA CCA Power ≤ 5.5 V 2 A1 I/O Input/output A. Referenced to VCCA. 3 A2 I/O Input/output A. Referenced to VCCA 4 GND GND Ground. Output enable (active High). Pull 5 EN Input EN low to place all outputs in 3- state mode. 6 B2 I/O Input/output B. Referenced to VCCB 7 B1 I/O Input/output B. Referenced to VCCB B-port supply voltage. 1.2 V ≤ 8 VCCB Power V CCB ≤ 5.5V Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes In corporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. 4. Automotive products are AEC-Q100 qualified and are PPAP capable. Refer to https://www.diodes.com/quality/. PI4ULS5V202Q
www.diodes.com
July 2019 Document Number DS41479 Rev 2-2 1 © Diodes Incorporated
