link to page 8 Si8931/32 Data Sheet Electrical Specifications

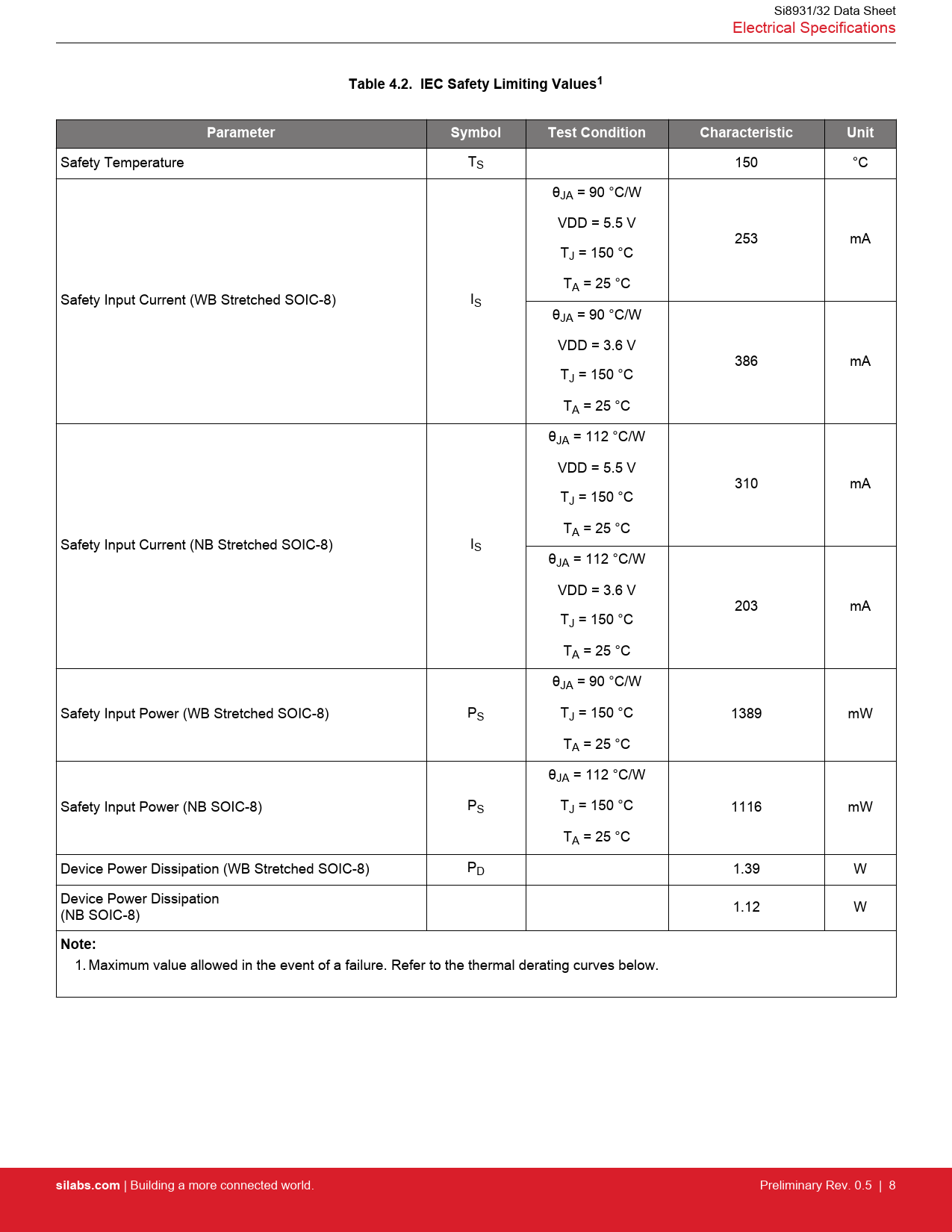

Table 4.2. IEC Safety Limiting Values1 Parameter Symbol Test Condition Characteristic Unit
Safety Temperature TS 150 °C θJA = 90 °C/W VDD = 5.5 V 253 mA TJ = 150 °C TA = 25 °C Safety Input Current (WB Stretched SOIC-8) IS θJA = 90 °C/W VDD = 3.6 V 386 mA TJ = 150 °C TA = 25 °C θJA = 112 °C/W VDD = 5.5 V 310 mA TJ = 150 °C TA = 25 °C Safety Input Current (NB Stretched SOIC-8) IS θJA = 112 °C/W VDD = 3.6 V 203 mA TJ = 150 °C TA = 25 °C θJA = 90 °C/W Safety Input Power (WB Stretched SOIC-8) PS TJ = 150 °C 1389 mW TA = 25 °C θJA = 112 °C/W Safety Input Power (NB SOIC-8) PS TJ = 150 °C 1116 mW TA = 25 °C Device Power Dissipation (WB Stretched SOIC-8) PD 1.39 W Device Power Dissipation 1.12 W (NB SOIC-8)
Note:
1. Maximum value allowed in the event of a failure. Refer to the thermal derating curves below.
silabs.com
| Building a more connected world. Preliminary Rev. 0.5 | 8 Document Outline 1. Ordering Guide 2. System Overview 3. Voltage Sense Application 4. Electrical Specifications 4.1 Regulatory Information 4.2 Typical Operating Characteristics 5. Pin Descriptions 5.1 Si8931 Pin Descriptions 5.2 Si8932 Pin Descriptions 6. Packaging 6.1 Package Outline: 8-Pin Wide Body Stretched SOIC 6.2 Package Outline: 8-Pin Narrow Body SOIC 6.3 Land Pattern: 8-Pin Wide Body Stretched SOIC 6.4 Land Pattern: 8-Pin Narrow Body SOIC 6.5 Top Marking: 8-Pin Wide Body Stretched SOIC 6.6 Top Marking: 8-Pin Narrow Body SOIC 7. Document Revision History
Table 4.2. IEC Safety Limiting Values1 Parameter Symbol Test Condition Characteristic Unit
Safety Temperature TS 150 °C θJA = 90 °C/W VDD = 5.5 V 253 mA TJ = 150 °C TA = 25 °C Safety Input Current (WB Stretched SOIC-8) IS θJA = 90 °C/W VDD = 3.6 V 386 mA TJ = 150 °C TA = 25 °C θJA = 112 °C/W VDD = 5.5 V 310 mA TJ = 150 °C TA = 25 °C Safety Input Current (NB Stretched SOIC-8) IS θJA = 112 °C/W VDD = 3.6 V 203 mA TJ = 150 °C TA = 25 °C θJA = 90 °C/W Safety Input Power (WB Stretched SOIC-8) PS TJ = 150 °C 1389 mW TA = 25 °C θJA = 112 °C/W Safety Input Power (NB SOIC-8) PS TJ = 150 °C 1116 mW TA = 25 °C Device Power Dissipation (WB Stretched SOIC-8) PD 1.39 W Device Power Dissipation 1.12 W (NB SOIC-8)
Note:
1. Maximum value allowed in the event of a failure. Refer to the thermal derating curves below.
