Datasheet Si8931/32 (Silicon Labs) - 2
| Fabricante | Silicon Labs |
| Descripción | Isolated Amplifier for Voltage Measurement |
| Páginas / Página | 31 / 2 — 1. Ordering Guide. New Ordering Part. Ordering Options. Number (OPN). … |
| Revisión | 0.5 |
| Formato / tamaño de archivo | PDF / 579 Kb |
| Idioma del documento | Inglés |
1. Ordering Guide. New Ordering Part. Ordering Options. Number (OPN). Input Range. Isolation Rating. Output. Package Type. Note:
Línea de modelo para esta hoja de datos
Versión de texto del documento

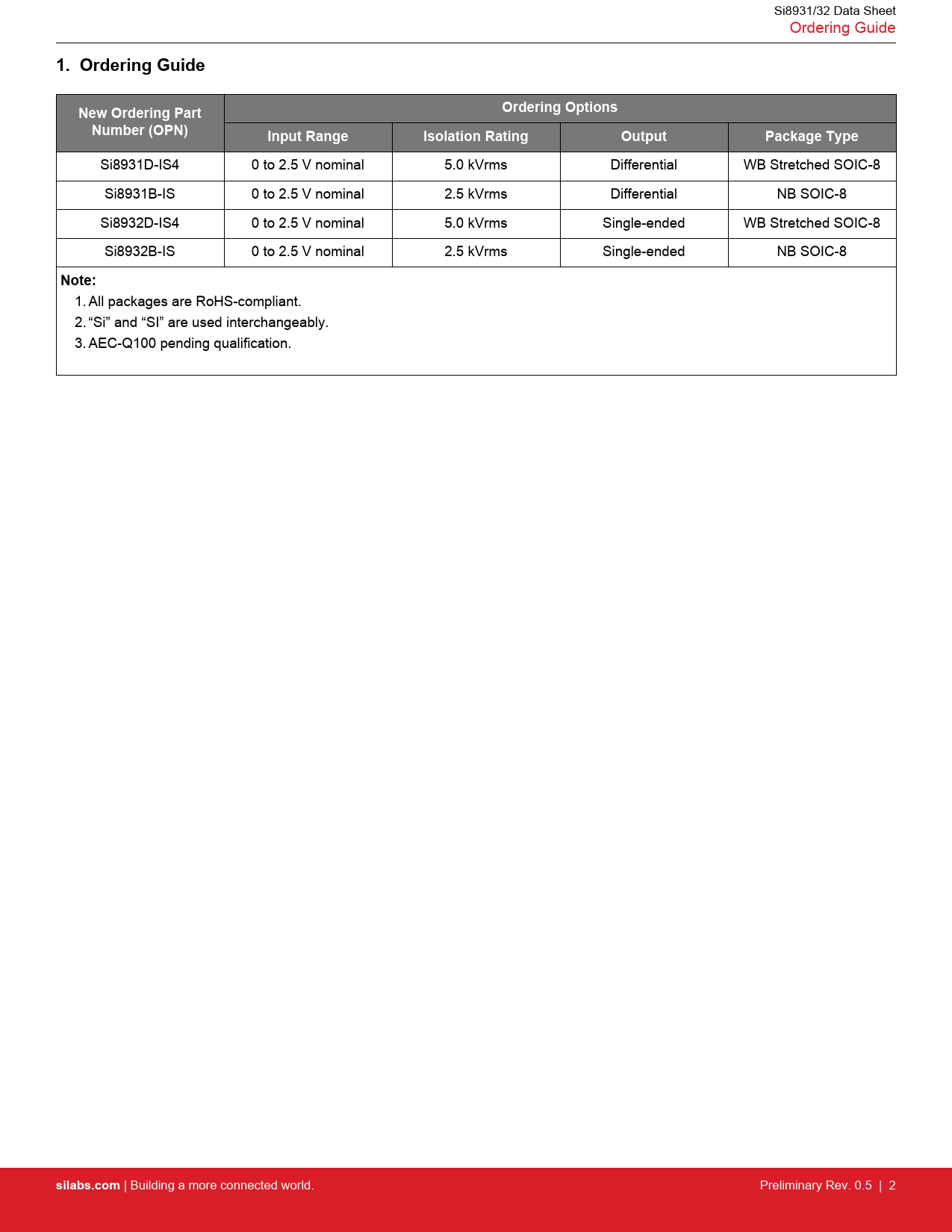

Si8931/32 Data Sheet Ordering Guide
1. Ordering Guide New Ordering Part Ordering Options Number (OPN) Input Range Isolation Rating Output Package Type
Si8931D-IS4 0 to 2.5 V nominal 5.0 kVrms Differential WB Stretched SOIC-8 Si8931B-IS 0 to 2.5 V nominal 2.5 kVrms Differential NB SOIC-8 Si8932D-IS4 0 to 2.5 V nominal 5.0 kVrms Single-ended WB Stretched SOIC-8 Si8932B-IS 0 to 2.5 V nominal 2.5 kVrms Single-ended NB SOIC-8
Note:
1. All packages are RoHS-compliant. 2. “Si” and “SI” are used interchangeably. 3. AEC-Q100 pending qualification.
