Datasheet Si8931/32 (Silicon Labs) - 9
| Fabricante | Silicon Labs |
| Descripción | Isolated Amplifier for Voltage Measurement |
| Páginas / Página | 31 / 9 — Table 4.3. Thermal Characteristics. WB Stretched. Parameter. Symbol. NB … |
| Revisión | 0.5 |
| Formato / tamaño de archivo | PDF / 579 Kb |
| Idioma del documento | Inglés |
Table 4.3. Thermal Characteristics. WB Stretched. Parameter. Symbol. NB SOIC-8. Unit. SOIC-8
Línea de modelo para esta hoja de datos
Versión de texto del documento

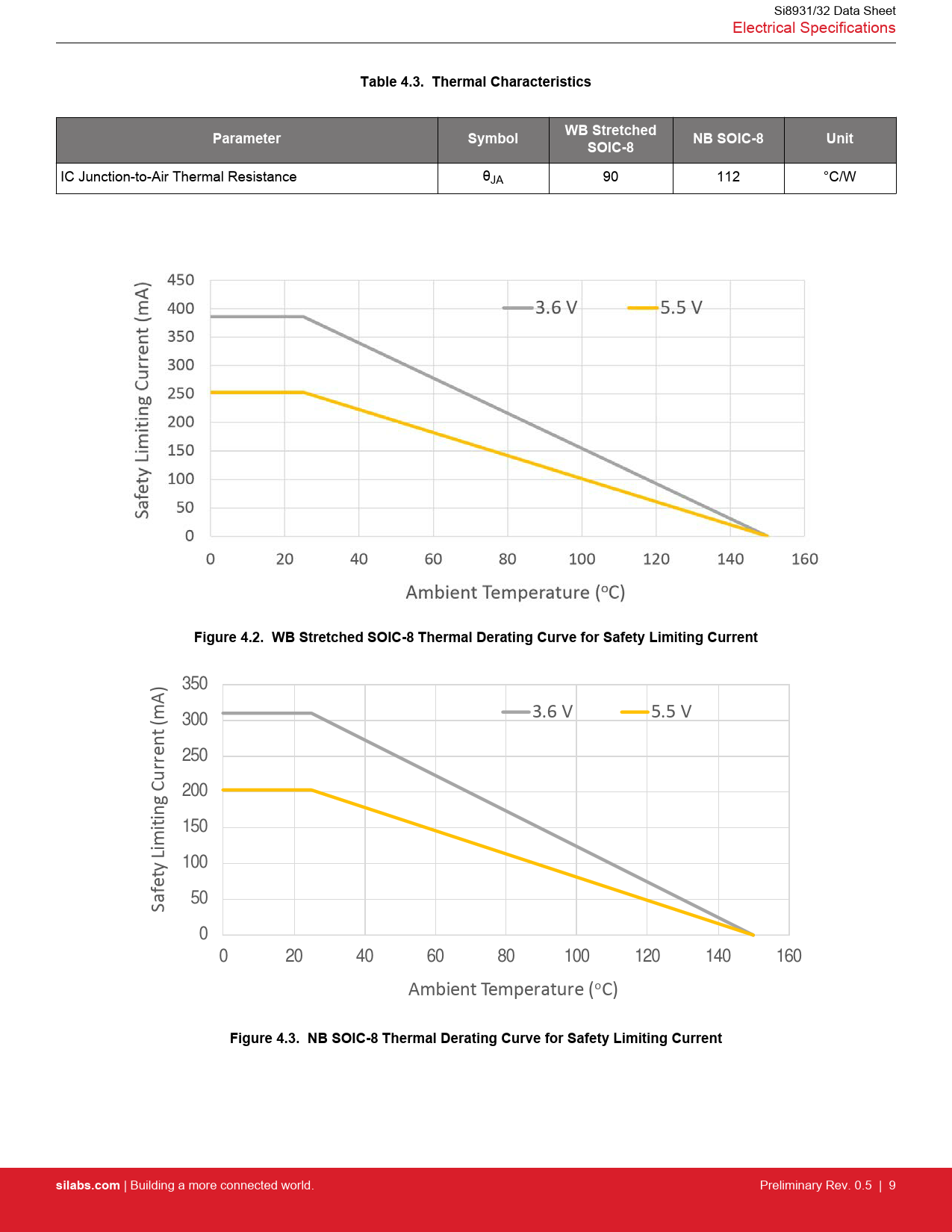

Si8931/32 Data Sheet Electrical Specifications
Table 4.3. Thermal Characteristics WB Stretched Parameter Symbol NB SOIC-8 Unit SOIC-8
IC Junction-to-Air Thermal Resistance θJA 90 112 °C/W
Figure 4.2. WB Stretched SOIC-8 Thermal Derating Curve for Safety Limiting Current
350 A) 3.6 V 5.5 V 300 250 200 iting Current (m 150 100 50 Safety Lim 0 0 20 40 60 80 100 120 140 160 Ambient Temperature (oC)
Figure 4.3. NB SOIC-8 Thermal Derating Curve for Safety Limiting Current silabs.com
| Building a more connected world. Preliminary Rev. 0.5 | 9 Document Outline 1. Ordering Guide 2. System Overview 3. Voltage Sense Application 4. Electrical Specifications 4.1 Regulatory Information 4.2 Typical Operating Characteristics 5. Pin Descriptions 5.1 Si8931 Pin Descriptions 5.2 Si8932 Pin Descriptions 6. Packaging 6.1 Package Outline: 8-Pin Wide Body Stretched SOIC 6.2 Package Outline: 8-Pin Narrow Body SOIC 6.3 Land Pattern: 8-Pin Wide Body Stretched SOIC 6.4 Land Pattern: 8-Pin Narrow Body SOIC 6.5 Top Marking: 8-Pin Wide Body Stretched SOIC 6.6 Top Marking: 8-Pin Narrow Body SOIC 7. Document Revision History
