LTC6430-20

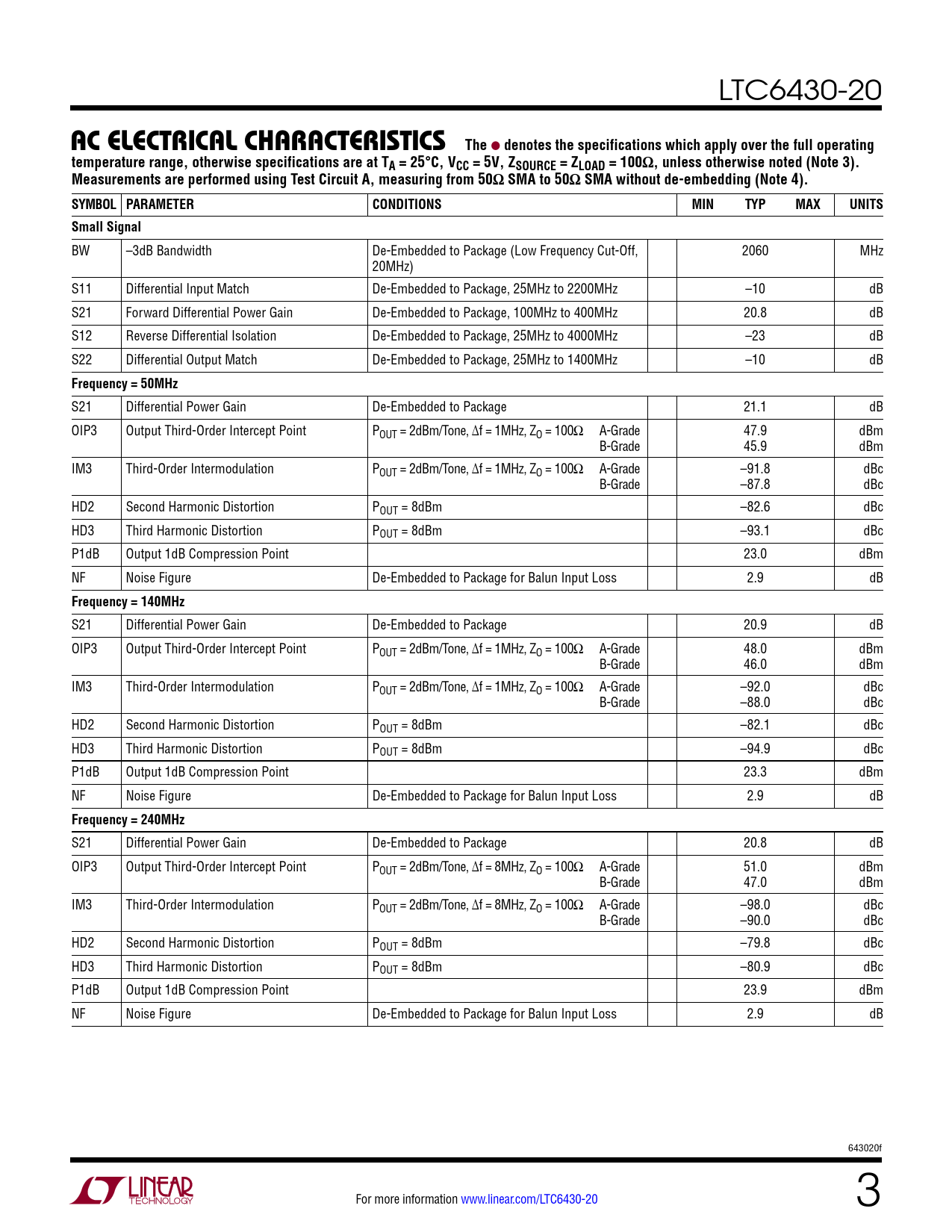

AC ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C, VCC = 5V, ZSOURCE = ZLOAD = 100Ω, unless otherwise noted (Note 3). Measurements are performed using Test Circuit A, measuring from 50Ω SMA to 50Ω SMA without de-embedding (Note 4). SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS Small Signal
BW –3dB Bandwidth De-Embedded to Package (Low Frequency Cut-Off, 2060 MHz 20MHz) S11 Differential Input Match De-Embedded to Package, 25MHz to 2200MHz –10 dB S21 Forward Differential Power Gain De-Embedded to Package, 100MHz to 400MHz 20.8 dB S12 Reverse Differential Isolation De-Embedded to Package, 25MHz to 4000MHz –23 dB S22 Differential Output Match De-Embedded to Package, 25MHz to 1400MHz –10 dB
Frequency = 50MHz
S21 Differential Power Gain De-Embedded to Package 21.1 dB OIP3 Output Third-Order Intercept Point POUT = 2dBm/Tone, Δf = 1MHz, ZO = 100Ω A-Grade 47.9 dBm B-Grade 45.9 dBm IM3 Third-Order Intermodulation POUT = 2dBm/Tone, Δf = 1MHz, ZO = 100Ω A-Grade –91.8 dBc B-Grade –87.8 dBc HD2 Second Harmonic Distortion POUT = 8dBm –82.6 dBc HD3 Third Harmonic Distortion POUT = 8dBm –93.1 dBc P1dB Output 1dB Compression Point 23.0 dBm NF Noise Figure De-Embedded to Package for Balun Input Loss 2.9 dB
Frequency = 140MHz
S21 Differential Power Gain De-Embedded to Package 20.9 dB OIP3 Output Third-Order Intercept Point POUT = 2dBm/Tone, Δf = 1MHz, ZO = 100Ω A-Grade 48.0 dBm B-Grade 46.0 dBm IM3 Third-Order Intermodulation POUT = 2dBm/Tone, Δf = 1MHz, ZO = 100Ω A-Grade –92.0 dBc B-Grade –88.0 dBc HD2 Second Harmonic Distortion POUT = 8dBm –82.1 dBc HD3 Third Harmonic Distortion POUT = 8dBm –94.9 dBc P1dB Output 1dB Compression Point 23.3 dBm NF Noise Figure De-Embedded to Package for Balun Input Loss 2.9 dB
Frequency = 240MHz
S21 Differential Power Gain De-Embedded to Package 20.8 dB OIP3 Output Third-Order Intercept Point POUT = 2dBm/Tone, Δf = 8MHz, ZO = 100Ω A-Grade 51.0 dBm B-Grade 47.0 dBm IM3 Third-Order Intermodulation POUT = 2dBm/Tone, Δf = 8MHz, ZO = 100Ω A-Grade –98.0 dBc B-Grade –90.0 dBc HD2 Second Harmonic Distortion POUT = 8dBm –79.8 dBc HD3 Third Harmonic Distortion POUT = 8dBm –80.9 dBc P1dB Output 1dB Compression Point 23.9 dBm NF Noise Figure De-Embedded to Package for Balun Input Loss 2.9 dB 643020f For more information www.linear.com/LTC6430-20 3 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information DC Electrical Characteristics AC Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Test Circuit A Operation Applications Information Differential S Parameters Typical Applications Package Description Typical Application Related Parts
