LTC6430-20

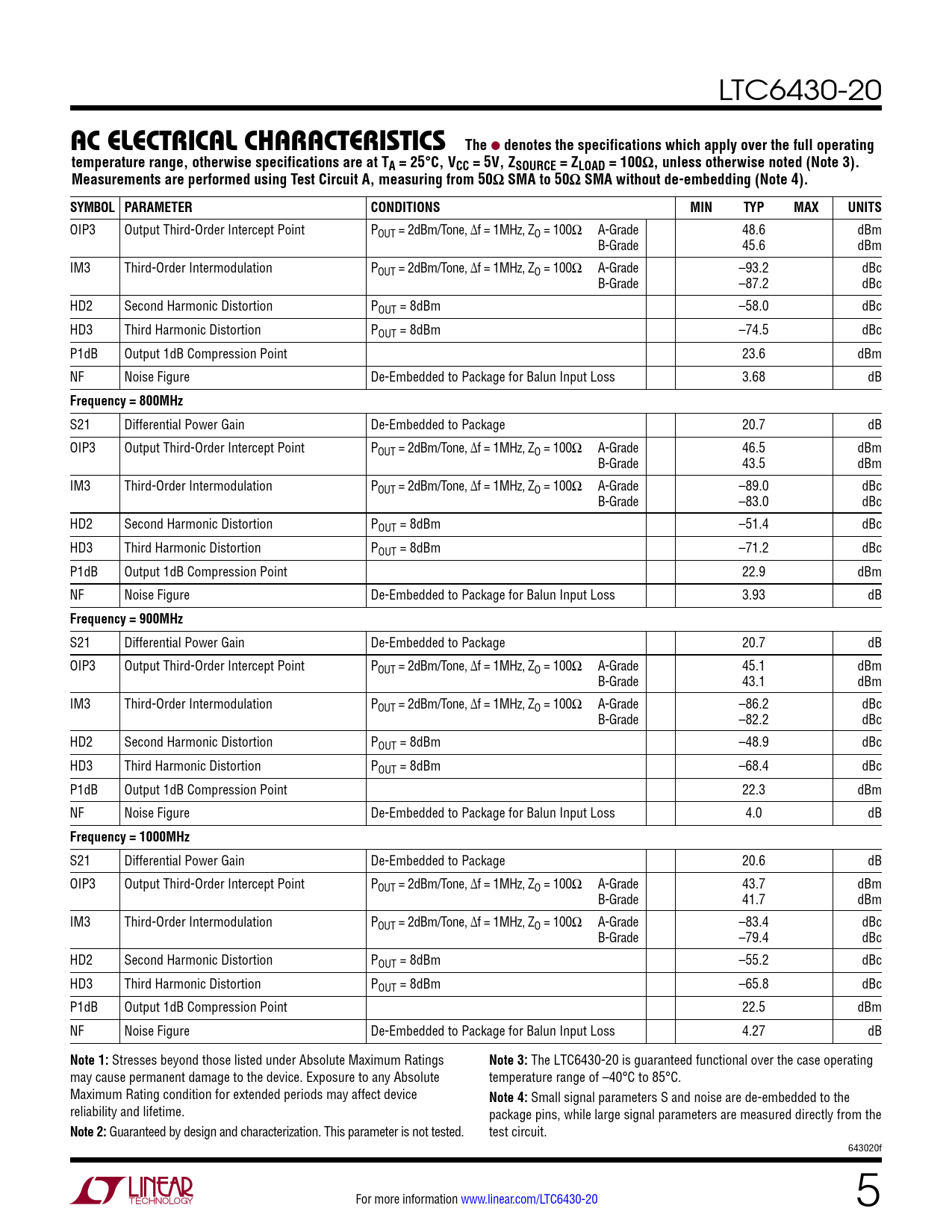

AC ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C, VCC = 5V, ZSOURCE = ZLOAD = 100Ω, unless otherwise noted (Note 3). Measurements are performed using Test Circuit A, measuring from 50Ω SMA to 50Ω SMA without de-embedding (Note 4). SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
OIP3 Output Third-Order Intercept Point POUT = 2dBm/Tone, Δf = 1MHz, ZO = 100Ω A-Grade 48.6 dBm B-Grade 45.6 dBm IM3 Third-Order Intermodulation POUT = 2dBm/Tone, Δf = 1MHz, ZO = 100Ω A-Grade –93.2 dBc B-Grade –87.2 dBc HD2 Second Harmonic Distortion POUT = 8dBm –58.0 dBc HD3 Third Harmonic Distortion POUT = 8dBm –74.5 dBc P1dB Output 1dB Compression Point 23.6 dBm NF Noise Figure De-Embedded to Package for Balun Input Loss 3.68 dB
Frequency = 800MHz
S21 Differential Power Gain De-Embedded to Package 20.7 dB OIP3 Output Third-Order Intercept Point POUT = 2dBm/Tone, Δf = 1MHz, ZO = 100Ω A-Grade 46.5 dBm B-Grade 43.5 dBm IM3 Third-Order Intermodulation POUT = 2dBm/Tone, Δf = 1MHz, ZO = 100Ω A-Grade –89.0 dBc B-Grade –83.0 dBc HD2 Second Harmonic Distortion POUT = 8dBm –51.4 dBc HD3 Third Harmonic Distortion POUT = 8dBm –71.2 dBc P1dB Output 1dB Compression Point 22.9 dBm NF Noise Figure De-Embedded to Package for Balun Input Loss 3.93 dB
Frequency = 900MHz
S21 Differential Power Gain De-Embedded to Package 20.7 dB OIP3 Output Third-Order Intercept Point POUT = 2dBm/Tone, Δf = 1MHz, ZO = 100Ω A-Grade 45.1 dBm B-Grade 43.1 dBm IM3 Third-Order Intermodulation POUT = 2dBm/Tone, Δf = 1MHz, ZO = 100Ω A-Grade –86.2 dBc B-Grade –82.2 dBc HD2 Second Harmonic Distortion POUT = 8dBm –48.9 dBc HD3 Third Harmonic Distortion POUT = 8dBm –68.4 dBc P1dB Output 1dB Compression Point 22.3 dBm NF Noise Figure De-Embedded to Package for Balun Input Loss 4.0 dB
Frequency = 1000MHz
S21 Differential Power Gain De-Embedded to Package 20.6 dB OIP3 Output Third-Order Intercept Point POUT = 2dBm/Tone, Δf = 1MHz, ZO = 100Ω A-Grade 43.7 dBm B-Grade 41.7 dBm IM3 Third-Order Intermodulation POUT = 2dBm/Tone, Δf = 1MHz, ZO = 100Ω A-Grade –83.4 dBc B-Grade –79.4 dBc HD2 Second Harmonic Distortion POUT = 8dBm –55.2 dBc HD3 Third Harmonic Distortion POUT = 8dBm –65.8 dBc P1dB Output 1dB Compression Point 22.5 dBm NF Noise Figure De-Embedded to Package for Balun Input Loss 4.27 dB
Note 1:
Stresses beyond those listed under Absolute Maximum Ratings
Note 3:
The LTC6430-20 is guaranteed functional over the case operating may cause permanent damage to the device. Exposure to any Absolute temperature range of –40°C to 85°C. Maximum Rating condition for extended periods may affect device
Note 4:
Small signal parameters S and noise are de-embedded to the reliability and lifetime. package pins, while large signal parameters are measured directly from the
Note 2:
Guaranteed by design and characterization. This parameter is not tested. test circuit. 643020f For more information www.linear.com/LTC6430-20 5 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information DC Electrical Characteristics AC Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Test Circuit A Operation Applications Information Differential S Parameters Typical Applications Package Description Typical Application Related Parts
