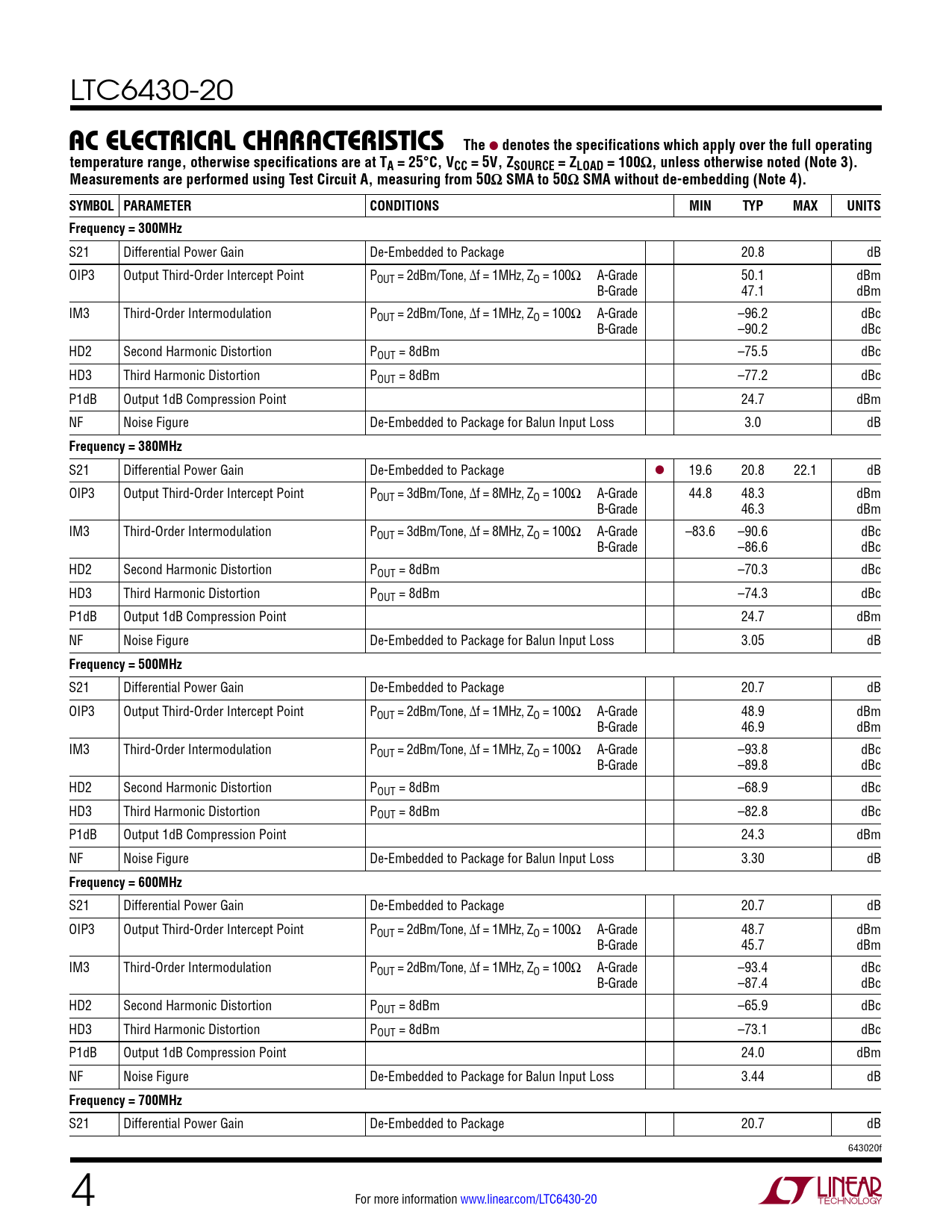

AC ELECTRICAL CHARACTERISTICS The. denotes the specifications which apply over the full operating
Línea de modelo para esta hoja de datos
Versión de texto del documento
LTC6430-20
AC ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C, VCC = 5V, ZSOURCE = ZLOAD = 100Ω, unless otherwise noted (Note 3). Measurements are performed using Test Circuit A, measuring from 50Ω SMA to 50Ω SMA without de-embedding (Note 4). SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS Frequency = 300MHz
S21 Differential Power Gain De-Embedded to Package 20.8 dB OIP3 Output Third-Order Intercept Point POUT = 2dBm/Tone, Δf = 1MHz, ZO = 100Ω A-Grade 50.1 dBm B-Grade 47.1 dBm IM3 Third-Order Intermodulation POUT = 2dBm/Tone, Δf = 1MHz, ZO = 100Ω A-Grade –96.2 dBc B-Grade –90.2 dBc HD2 Second Harmonic Distortion POUT = 8dBm –75.5 dBc HD3 Third Harmonic Distortion POUT = 8dBm –77.2 dBc P1dB Output 1dB Compression Point 24.7 dBm NF Noise Figure De-Embedded to Package for Balun Input Loss 3.0 dB
Frequency = 380MHz
S21 Differential Power Gain De-Embedded to Package l 19.6 20.8 22.1 dB OIP3 Output Third-Order Intercept Point POUT = 3dBm/Tone, Δf = 8MHz, ZO = 100Ω A-Grade 44.8 48.3 dBm B-Grade 46.3 dBm IM3 Third-Order Intermodulation POUT = 3dBm/Tone, Δf = 8MHz, ZO = 100Ω A-Grade –83.6 –90.6 dBc B-Grade –86.6 dBc HD2 Second Harmonic Distortion POUT = 8dBm –70.3 dBc HD3 Third Harmonic Distortion POUT = 8dBm –74.3 dBc P1dB Output 1dB Compression Point 24.7 dBm NF Noise Figure De-Embedded to Package for Balun Input Loss 3.05 dB
Frequency = 500MHz
S21 Differential Power Gain De-Embedded to Package 20.7 dB OIP3 Output Third-Order Intercept Point POUT = 2dBm/Tone, Δf = 1MHz, ZO = 100Ω A-Grade 48.9 dBm B-Grade 46.9 dBm IM3 Third-Order Intermodulation POUT = 2dBm/Tone, Δf = 1MHz, ZO = 100Ω A-Grade –93.8 dBc B-Grade –89.8 dBc HD2 Second Harmonic Distortion POUT = 8dBm –68.9 dBc HD3 Third Harmonic Distortion POUT = 8dBm –82.8 dBc P1dB Output 1dB Compression Point 24.3 dBm NF Noise Figure De-Embedded to Package for Balun Input Loss 3.30 dB
Frequency = 600MHz
S21 Differential Power Gain De-Embedded to Package 20.7 dB OIP3 Output Third-Order Intercept Point POUT = 2dBm/Tone, Δf = 1MHz, ZO = 100Ω A-Grade 48.7 dBm B-Grade 45.7 dBm IM3 Third-Order Intermodulation POUT = 2dBm/Tone, Δf = 1MHz, ZO = 100Ω A-Grade –93.4 dBc B-Grade –87.4 dBc HD2 Second Harmonic Distortion POUT = 8dBm –65.9 dBc HD3 Third Harmonic Distortion POUT = 8dBm –73.1 dBc P1dB Output 1dB Compression Point 24.0 dBm NF Noise Figure De-Embedded to Package for Balun Input Loss 3.44 dB
Frequency = 700MHz
S21 Differential Power Gain De-Embedded to Package 20.7 dB 643020f 4 For more information www.linear.com/LTC6430-20 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information DC Electrical Characteristics AC Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Test Circuit A Operation Applications Information Differential S Parameters Typical Applications Package Description Typical Application Related Parts
