Datasheet LTC6430-20 (Analog Devices) - 2
| Fabricante | Analog Devices |
| Descripción | High Linearity Differential RF/IF Amplifier/ADC Driver |
| Páginas / Página | 28 / 2 — ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Note 1). ORDER INFORMATION. … |
| Formato / tamaño de archivo | PDF / 2.2 Mb |
| Idioma del documento | Inglés |
ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Note 1). ORDER INFORMATION. LEAD FREE FINISH. TAPE AND REEL. PART MARKING
Línea de modelo para esta hoja de datos
Versión de texto del documento
LTC6430-20
ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)

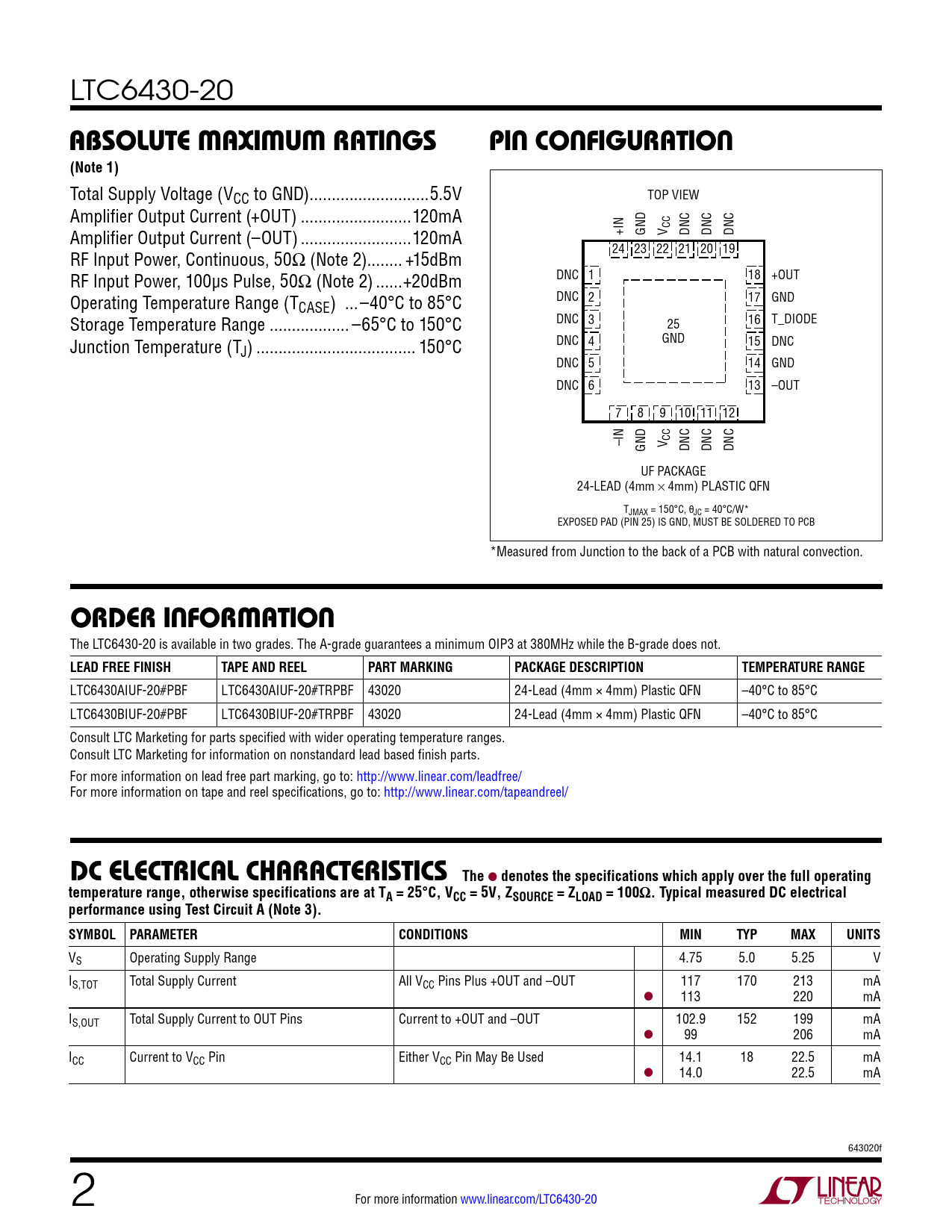

Total Supply Voltage (VCC to GND)...5.5V TOP VIEW Amplifier Output Current (+OUT) ...120mA Amplifier Output Current (–OUT) ...120mA +IN GND V CC DNC DNC DNC RF Input Power, Continuous, 50Ω (Note 2).. +15dBm 24 23 22 21 20 19 RF Input Power, 100µs Pulse, 50Ω (Note 2) ..+20dBm DNC 1 18 +OUT Operating Temperature Range (T DNC 2 17 GND CASE) ...–40°C to 85°C Storage Temperature Range .. –65°C to 150°C DNC 3 25 16 T_DIODE Junction Temperature (T DNC 4 GND 15 DNC J) .. 150°C DNC 5 14 GND DNC 6 13 –OUT 7 8 9 10 11 12 –IN GND V CC DNC DNC DNC UF PACKAGE 24-LEAD (4mm × 4mm) PLASTIC QFN TJMAX = 150°C, θJC = 40°C/W* EXPOSED PAD (PIN 25) IS GND, MUST BE SOLDERED TO PCB *Measured from Junction to the back of a PCB with natural convection.
ORDER INFORMATION
The LTC6430-20 is available in two grades. The A-grade guarantees a minimum OIP3 at 380MHz while the B-grade does not.
LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC6430AIUF-20#PBF LTC6430AIUF-20#TRPBF 43020 24-Lead (4mm × 4mm) Plastic QFN –40°C to 85°C LTC6430BIUF-20#PBF LTC6430BIUF-20#TRPBF 43020 24-Lead (4mm × 4mm) Plastic QFN –40°C to 85°C Consult LTC Marketing for parts specified with wider operating temperature ranges. Consult LTC Marketing for information on nonstandard lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/
DC ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C, VCC = 5V, ZSOURCE = ZLOAD = 100Ω. Typical measured DC electrical performance using Test Circuit A (Note 3). SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VS Operating Supply Range 4.75 5.0 5.25 V IS,TOT Total Supply Current All VCC Pins Plus +OUT and –OUT 117 170 213 mA l 113 220 mA IS,OUT Total Supply Current to OUT Pins Current to +OUT and –OUT 102.9 152 199 mA l 99 206 mA ICC Current to VCC Pin Either VCC Pin May Be Used 14.1 18 22.5 mA l 14.0 22.5 mA 643020f 2 For more information www.linear.com/LTC6430-20 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information DC Electrical Characteristics AC Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Test Circuit A Operation Applications Information Differential S Parameters Typical Applications Package Description Typical Application Related Parts
