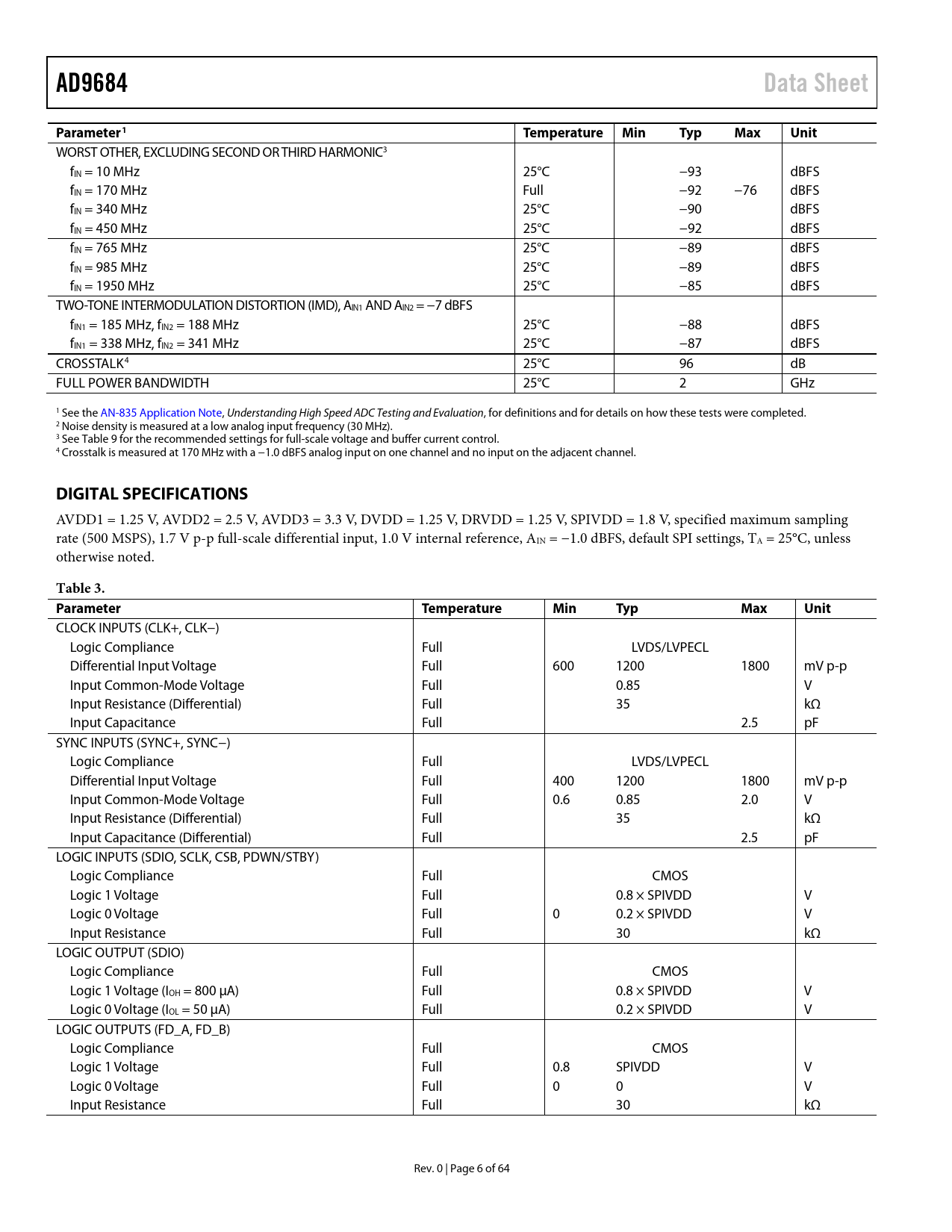

link to page 27 link to page 8 AD9684Data SheetParameter1Temperature MinTypMaxUnit WORST OTHER, EXCLUDING SECOND OR THIRD HARMONIC3 fIN = 10 MHz 25°C −93 dBFS fIN = 170 MHz Full −92 −76 dBFS fIN = 340 MHz 25°C −90 dBFS fIN = 450 MHz 25°C −92 dBFS fIN = 765 MHz 25°C −89 dBFS fIN = 985 MHz 25°C −89 dBFS fIN = 1950 MHz 25°C −85 dBFS TWO-TONE INTERMODULATION DISTORTION (IMD), AIN1 AND AIN2 = −7 dBFS fIN1 = 185 MHz, fIN2 = 188 MHz 25°C −88 dBFS fIN1 = 338 MHz, fIN2 = 341 MHz 25°C −87 dBFS CROSSTALK4 25°C 96 dB FULL POWER BANDWIDTH 25°C 2 GHz 1 See the AN-835 Application Note, Understanding High Speed ADC Testing and Evaluation, for definitions and for details on how these tests were completed. 2 Noise density is measured at a low analog input frequency (30 MHz). 3 See Table 9 for the recommended settings for full-scale voltage and buffer current control. 4 Crosstalk is measured at 170 MHz with a −1.0 dBFS analog input on one channel and no input on the adjacent channel. DIGITAL SPECIFICATIONS AVDD1 = 1.25 V, AVDD2 = 2.5 V, AVDD3 = 3.3 V, DVDD = 1.25 V, DRVDD = 1.25 V, SPIVDD = 1.8 V, specified maximum sampling rate (500 MSPS), 1.7 V p-p full-scale differential input, 1.0 V internal reference, AIN = −1.0 dBFS, default SPI settings, TA = 25°C, unless otherwise noted. Table 3. ParameterTemperatureMinTypMaxUnit CLOCK INPUTS (CLK+, CLK−) Logic Compliance Full LVDS/LVPECL Differential Input Voltage Full 600 1200 1800 mV p-p Input Common-Mode Voltage Full 0.85 V Input Resistance (Differential) Full 35 kΩ Input Capacitance Full 2.5 pF SYNC INPUTS (SYNC+, SYNC−) Logic Compliance Full LVDS/LVPECL Differential Input Voltage Full 400 1200 1800 mV p-p Input Common-Mode Voltage Full 0.6 0.85 2.0 V Input Resistance (Differential) Full 35 kΩ Input Capacitance (Differential) Full 2.5 pF LOGIC INPUTS (SDIO, SCLK, CSB, PDWN/STBY) Logic Compliance Full CMOS Logic 1 Voltage Full 0.8 × SPIVDD V Logic 0 Voltage Full 0 0.2 × SPIVDD V Input Resistance Full 30 kΩ LOGIC OUTPUT (SDIO) Logic Compliance Full CMOS Logic 1 Voltage (IOH = 800 µA) Full 0.8 × SPIVDD V Logic 0 Voltage (IOL = 50 µA) Full 0.2 × SPIVDD V LOGIC OUTPUTS (FD_A, FD_B) Logic Compliance Full CMOS Logic 1 Voltage Full 0.8 SPIVDD V Logic 0 Voltage Full 0 0 V Input Resistance Full 30 kΩ Rev. 0 | Page 6 of 64 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY PRODUCT HIGHLIGHTS SPECIFICATIONS DC SPECIFICATIONS AC SPECIFICATIONS DIGITAL SPECIFICATIONS SWITCHING SPECIFICATIONS TIMING SPECIFICATIONS Timing Diagrams ABSOLUTE MAXIMUM RATINGS THERMAL CHARACTERISTICS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS EQUIVALENT CIRCUITS THEORY OF OPERATION ADC ARCHITECTURE ANALOG INPUT CONSIDERATIONS Differential Input Configurations Input Common Mode Analog Input Controls and SFDR Optimization Absolute Maximum Input Swing VOLTAGE REFERENCE CLOCK INPUT CONSIDERATIONS Clock Duty Cycle Considerations Input Clock Divider Input Clock Divider ½ Period Delay Adjustment Clock Fine Delay Adjustment Clock Jitter Considerations POWER-DOWN/STANDBY MODE TEMPERATURE DIODE ADC OVERRANGE AND FAST DETECT ADC OVERRANGE FAST THRESHOLD DETECTION (FD_A AND FD_B) SIGNAL MONITOR DIGITAL DOWNCONVERTERS (DDCs) DDC I/Q INPUT SELECTION DDC I/Q OUTPUT SELECTION DDC GENERAL DESCRIPTION FREQUENCY TRANSLATION GENERAL DESCRIPTION Variable IF Mode 0 Hz IF (ZIF) Mode fS/4 Hz IF Mode Test Mode DDC NCO PLUS MIXER LOSS AND SFDR NUMERICALLY CONTROLLED OSCILLATOR Setting Up the NCO FTW and POW NCO Synchronization Mixer FIR FILTERS GENERAL DESCRIPTION HALF-BAND FILTERS HB4 Filter HB3 Filter HB2 Filter HB1 Filter DDC GAIN STAGE DDC COMPLEX TO REAL CONVERSION BLOCK DDC EXAMPLE CONFIGURATIONS DIGITAL OUTPUTS DIGITAL OUTPUTS Timing Data Clock Output ADC OVERRANGE MULTICHIP SYNCHRONIZATION SYNC± SETUP AND HOLD WINDOW MONITOR TEST MODES ADC TEST MODES SERIAL PORT INTERFACE (SPI) CONFIGURATION USING THE SPI HARDWARE INTERFACE SPI ACCESSIBLE FEATURES MEMORY MAP READING THE MEMORY MAP REGISTER TABLE Unassigned and Reserved Locations Default Values Logic Levels Channel-Specific Registers SPI Soft Reset MEMORY MAP REGISTER TABLE APPLICATIONS INFORMATION POWER SUPPLY RECOMMENDATIONS OUTLINE DIMENSIONS ORDERING GUIDE
