Datasheet PIC10F200, PIC10F202, PIC10F204, PIC10F206 (Microchip) - 9
| Fabricante | Microchip |
| Descripción | 6-Pin, 8-Bit Flash Microcontrollers |
| Páginas / Página | 88 / 9 — PIC10F200/202/204/206. TABLE 3-2: PIC10F200/202/204/206 PINOUT … |
| Formato / tamaño de archivo | PDF / 1.0 Mb |
| Idioma del documento | Inglés |

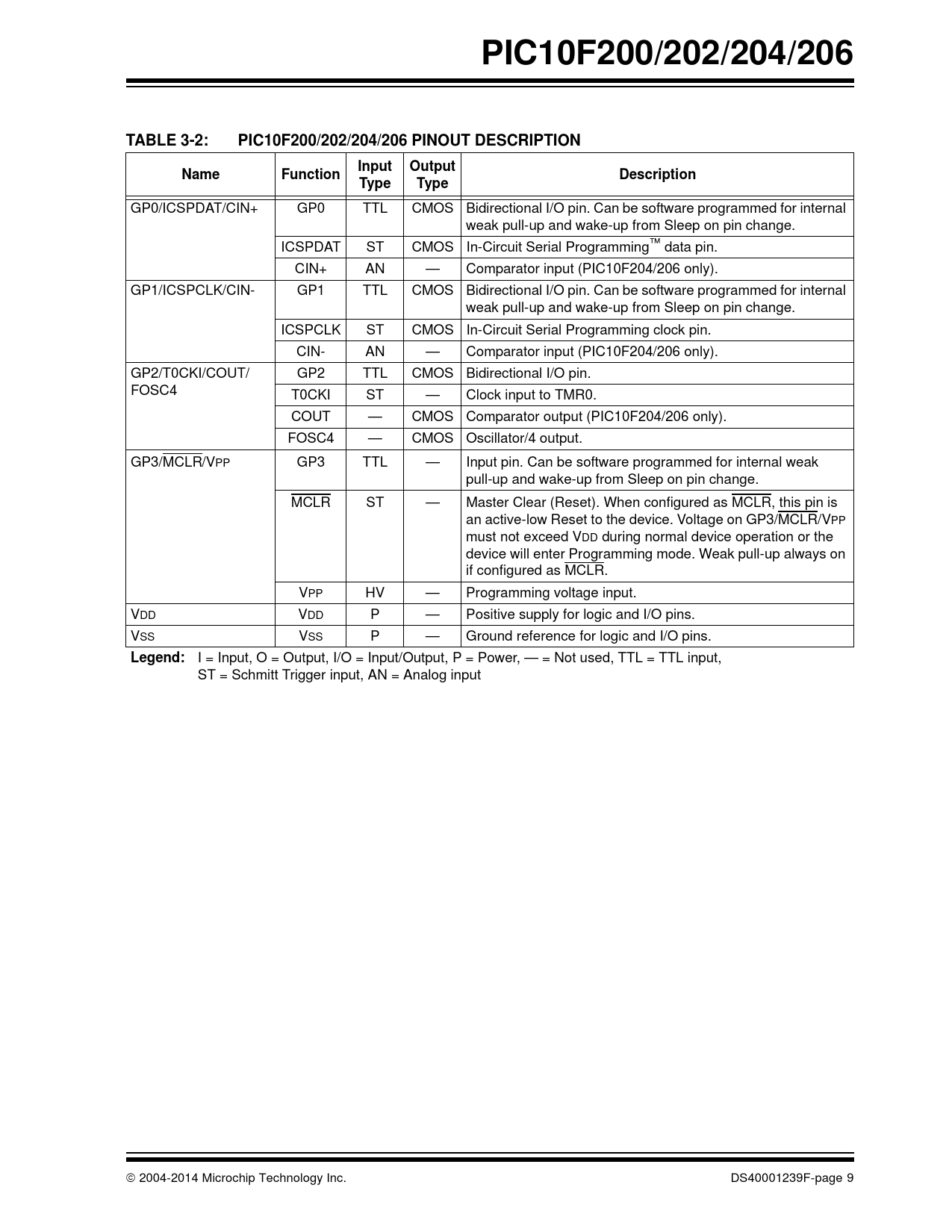

PIC10F200/202/204/206. TABLE 3-2: PIC10F200/202/204/206 PINOUT DESCRIPTION Name
Línea de modelo para esta hoja de datos
- PIC10F200-E/MC PIC10F200-E/OT PIC10F200-E/P PIC10F200-I/MC PIC10F200-I/OT PIC10F200-I/P PIC10F200T-E/OT PIC10F200T-E/OTVAO PIC10F200T-I/MC PIC10F200T-I/OT PIC10F200T-I/OTVAO
- PIC10F202-E/MC PIC10F202-E/OT PIC10F202-E/P PIC10F202-I/MC PIC10F202-I/OT PIC10F202-I/P PIC10F202T-E/OT PIC10F202T-E/OTVAO PIC10F202T-I/MC PIC10F202T-I/OT PIC10F202T-I/OTVAO
Versión de texto del documento
PIC10F200/202/204/206
TABLE 3-2: PIC10F200/202/204/206 PINOUT DESCRIPTION Name
GP0/ICSPDAT/CIN+ GP1/ICSPCLK/CIN-GP2/T0CKI/COUT/
FOSC4 GP3/MCLR/VPP Function Input
Type Output
Type GP0 TTL CMOS Bidirectional I/O pin. Can be software programmed for internal
weak pull-up and wake-up from Sleep on pin change. ICSPDAT ST CMOS In-Circuit Serial Programming™ data pin.
— Description CIN+ AN GP1 TTL CMOS Bidirectional I/O pin. Can be software programmed for internal
weak pull-up and wake-up from Sleep on pin change. ICSPCLK ST CMOS In-Circuit Serial Programming clock pin.
— Comparator input (PIC10F204/206 only). CIN-AN GP2 TTL Comparator input (PIC10F204/206 only). T0CKI ST COUT — CMOS Comparator output (PIC10F204/206 only). FOSC4 — CMOS Oscillator/4 output. GP3 TTL — Input pin. Can be software programmed for internal weak
pull-up and wake-up from Sleep on pin change. MCLR ST — Master Clear (Reset). When configured as MCLR, this pin is
an active-low Reset to the device. Voltage on GP3/MCLR/VPP
must not exceed VDD during normal device operation or the
device will enter Programming mode. Weak pull-up always on
if configured as MCLR. CMOS Bidirectional I/O pin.
— Clock input to TMR0. VPP HV — Programming voltage input. VDD VDD P — Positive supply for logic and I/O pins. VSS VSS P — Ground reference for logic and I/O pins. Legend: I = Input, O = Output, I/O = Input/Output, P = Power, — = Not used, TTL = TTL input,
ST = Schmitt Trigger input, AN = Analog input 2004-2014 Microchip Technology Inc. DS40001239F-page 9
TABLE 3-2: PIC10F200/202/204/206 PINOUT DESCRIPTION Name
GP0/ICSPDAT/CIN+ GP1/ICSPCLK/CIN-GP2/T0CKI/COUT/
FOSC4 GP3/MCLR/VPP Function Input
Type Output
Type GP0 TTL CMOS Bidirectional I/O pin. Can be software programmed for internal
weak pull-up and wake-up from Sleep on pin change. ICSPDAT ST CMOS In-Circuit Serial Programming™ data pin.
— Description CIN+ AN GP1 TTL CMOS Bidirectional I/O pin. Can be software programmed for internal
weak pull-up and wake-up from Sleep on pin change. ICSPCLK ST CMOS In-Circuit Serial Programming clock pin.
— Comparator input (PIC10F204/206 only). CIN-AN GP2 TTL Comparator input (PIC10F204/206 only). T0CKI ST COUT — CMOS Comparator output (PIC10F204/206 only). FOSC4 — CMOS Oscillator/4 output. GP3 TTL — Input pin. Can be software programmed for internal weak
pull-up and wake-up from Sleep on pin change. MCLR ST — Master Clear (Reset). When configured as MCLR, this pin is
an active-low Reset to the device. Voltage on GP3/MCLR/VPP
must not exceed VDD during normal device operation or the
device will enter Programming mode. Weak pull-up always on
if configured as MCLR. CMOS Bidirectional I/O pin.
— Clock input to TMR0. VPP HV — Programming voltage input. VDD VDD P — Positive supply for logic and I/O pins. VSS VSS P — Ground reference for logic and I/O pins. Legend: I = Input, O = Output, I/O = Input/Output, P = Power, — = Not used, TTL = TTL input,
ST = Schmitt Trigger input, AN = Analog input 2004-2014 Microchip Technology Inc. DS40001239F-page 9
