Datasheet PIC10F200, PIC10F202, PIC10F204, PIC10F206 (Microchip)
| Fabricante | Microchip |
| Descripción | 6-Pin, 8-Bit Flash Microcontrollers |
| Páginas / Página | 88 / 1 — PIC10F200/202/204/206. 6-Pin, 8-Bit Flash Microcontrollers. Devices … |
| Formato / tamaño de archivo | PDF / 1.0 Mb |
| Idioma del documento | Inglés |
PIC10F200/202/204/206. 6-Pin, 8-Bit Flash Microcontrollers. Devices Included In This Data Sheet:
Línea de modelo para esta hoja de datos
- PIC10F200-E/MC PIC10F200-E/OT PIC10F200-E/P PIC10F200-I/MC PIC10F200-I/OT PIC10F200-I/P PIC10F200T-E/OT PIC10F200T-E/OTVAO PIC10F200T-I/MC PIC10F200T-I/OT PIC10F200T-I/OTVAO
- PIC10F202-E/MC PIC10F202-E/OT PIC10F202-E/P PIC10F202-I/MC PIC10F202-I/OT PIC10F202-I/P PIC10F202T-E/OT PIC10F202T-E/OTVAO PIC10F202T-I/MC PIC10F202T-I/OT PIC10F202T-I/OTVAO
Versión de texto del documento

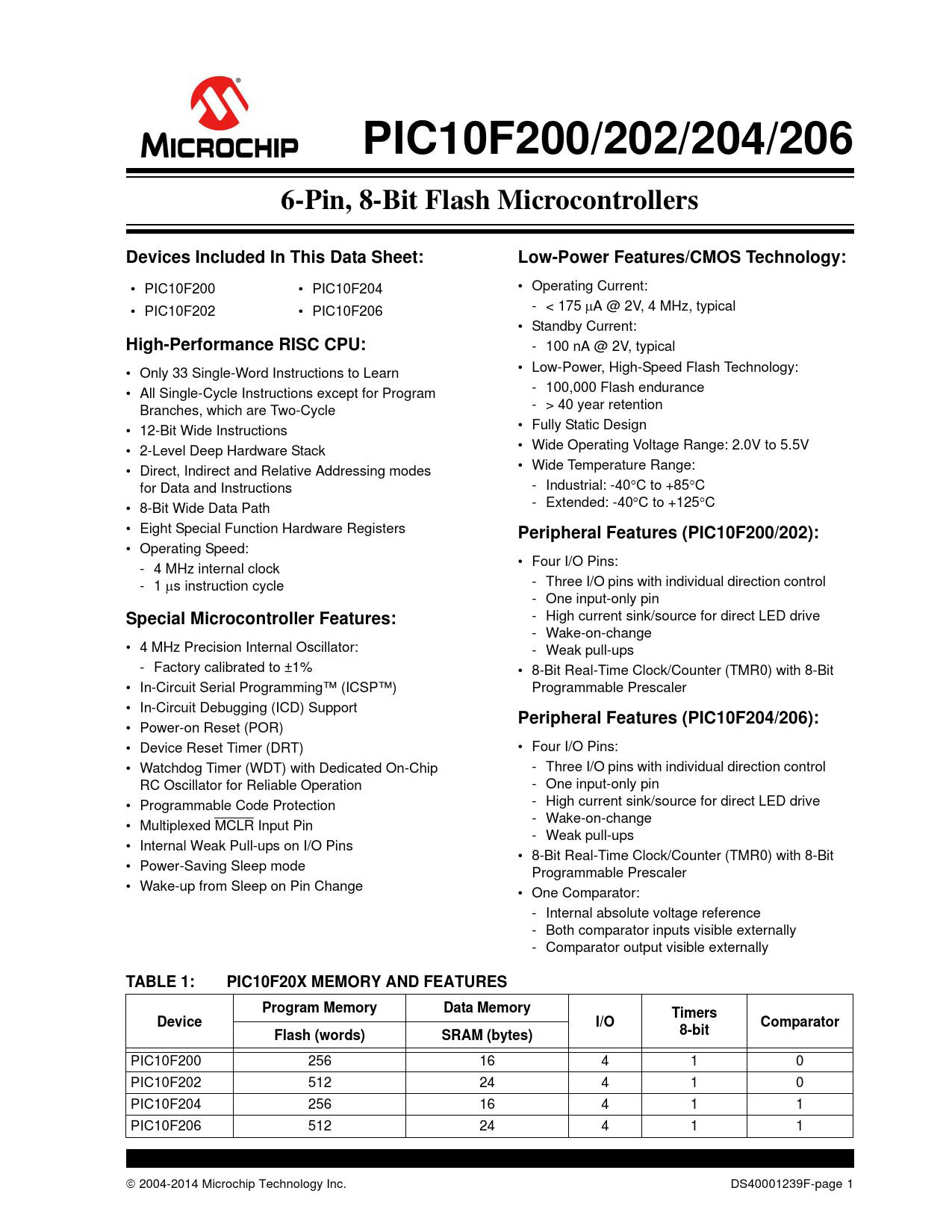

PIC10F200/202/204/206
6-Pin, 8-Bit Flash Microcontrollers
Devices Included In This Data Sheet:
• PIC10F200 • PIC10F204 • PIC10F202 • PIC10F206 Low-Power Features/CMOS Technology:
• Operating Current:
-< 175 A @ 2V, 4 MHz, typical
• Standby Current:
-100 nA @ 2V, typical
• Low-Power, High-Speed Flash Technology:
-100,000 Flash endurance
-> 40 year retention
• Fully Static Design
• Wide Operating Voltage Range: 2.0V to 5.5V
• Wide Temperature Range:
-Industrial: -40C to +85C
-Extended: -40C to +125C High-Performance RISC CPU:
• Only 33 Single-Word Instructions to Learn
• All Single-Cycle Instructions except for Program
Branches, which are Two-Cycle
• 12-Bit Wide Instructions
• 2-Level Deep Hardware Stack
• Direct, Indirect and Relative Addressing modes
for Data and Instructions
• 8-Bit Wide Data Path
• Eight Special Function Hardware Registers
• Operating Speed:
-4 MHz internal clock
-1 s instruction cycle Peripheral Features (PIC10F200/202):
• Four I/O Pins:
-Three I/O pins with individual direction control
-One input-only pin
-High current sink/source for direct LED drive
-Wake-on-change
-Weak pull-ups
• 8-Bit Real-Time Clock/Counter (TMR0) with 8-Bit
Programmable Prescaler Special Microcontroller Features:
• 4 MHz Precision Internal Oscillator:
-Factory calibrated to ±1%
• In-Circuit Serial Programming™ (ICSP™)
• In-Circuit Debugging (ICD) Support
• Power-on Reset (POR)
• Device Reset Timer (DRT)
• Watchdog Timer (WDT) with Dedicated On-Chip
RC Oscillator for Reliable Operation
• Programmable Code Protection
• Multiplexed MCLR Input Pin
• Internal Weak Pull-ups on I/O Pins
• Power-Saving Sleep mode
• Wake-up from Sleep on Pin Change TABLE 1: Peripheral Features (PIC10F204/206):
• Four I/O Pins:
-Three I/O pins with individual direction control
-One input-only pin
-High current sink/source for direct LED drive
-Wake-on-change
-Weak pull-ups
• 8-Bit Real-Time Clock/Counter (TMR0) with 8-Bit
Programmable Prescaler
• One Comparator:
-Internal absolute voltage reference
-Both comparator inputs visible externally
-Comparator output visible externally PIC10F20X MEMORY AND FEATURES
Program Memory Data Memory Device I/O Timers
8-bit Comparator Flash (words) SRAM (bytes) PIC10F200 256 16 4 1 0 PIC10F202 512 24 4 1 0 PIC10F204 256 16 4 1 1 PIC10F206 512 24 4 1 1 2004-2014 Microchip Technology Inc. DS40001239F-page 1
