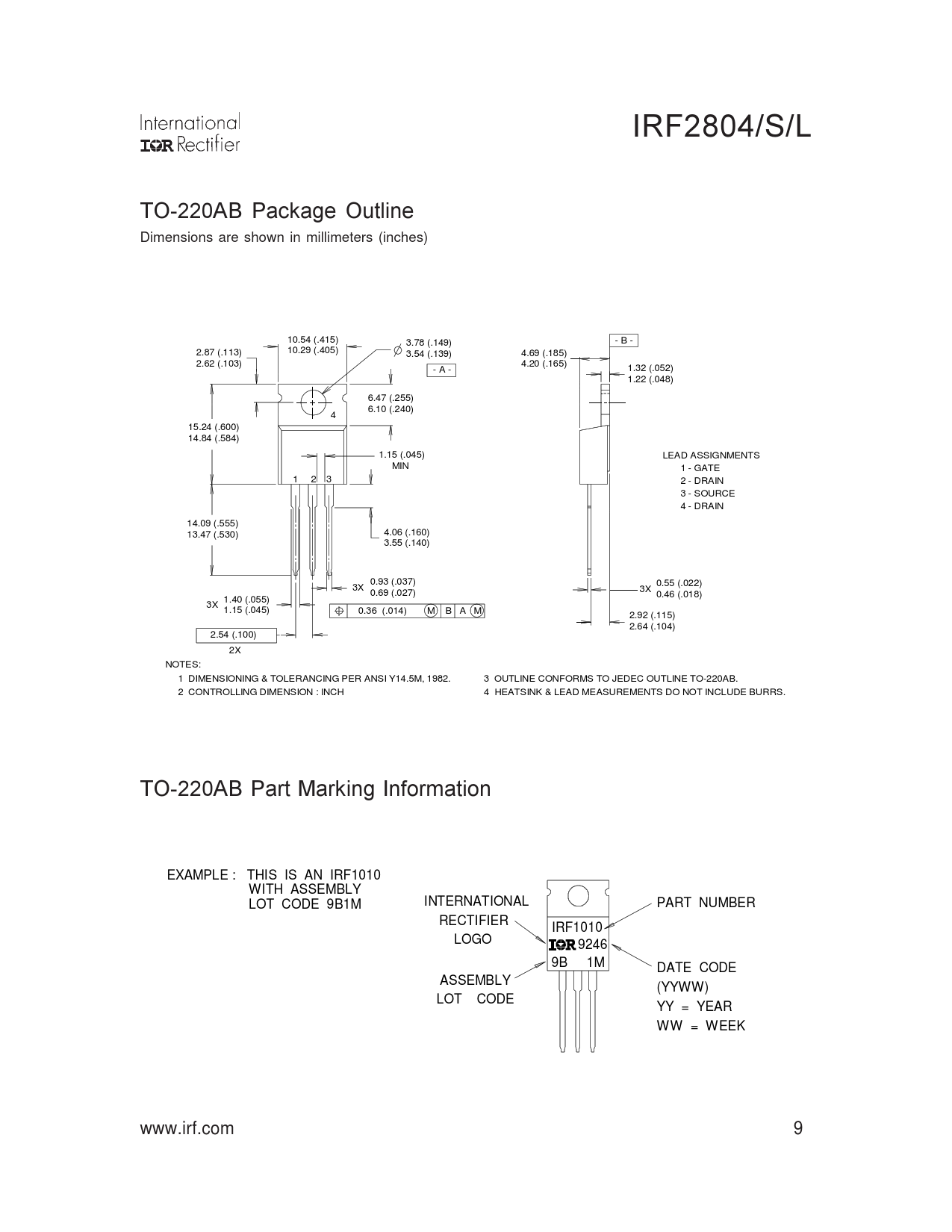

IRF2804/S/L. TO-220AB. Package. Outline. Dimensions. are. shown. in. millimeters. (inches). 10.54. (.415). -. B. -. 3.78. (.149). 10.29. (.405). 2.87. (.113)

IRF2804/S/L TO-220AB Package Outline Dimensions are shown in millimeters (inches) 10.54 (.415) - B - 3.78 (.149) 10.29 (.405) 2.87 (.113)

Línea de modelo para esta hoja de datos

Versión de texto del documento

IRF2804/S/L TO-220AB Package Outline Dimensions are shown in millimeters (inches) 10.54 (.415) - B - 3.78 (.149) 10.29 (.405) 2.87 (.113) 3.54 (.139) 4.69 (.185) 2.62 (.103) 4.20 (.165) - A - 1.32 (.052) 1.22 (.048) 6.47 (.255) 6.10 (.240) 4 15.24 (.600) 14.84 (.584) 1.15 (.045) LEAD ASSIGNMENTS MIN 1 - GATE 1 2 3 2 - DRAIN 3 - SOURCE 4 - DRAIN 14.09 (.555) 4.06 (.160) 13.47 (.530) 3.55 (.140) 0.93 (.037) 0.55 (.022) 3X 3X 0.69 (.027) 0.46 (.018) 1.40 (.055) 3X 1.15 (.045) 0.36 (.014) M B A M 2.92 (.115) 2.64 (.104) 2.54 (.100) 2X NOTES: 1 DIMENSIONING & TOLERANCING PER ANSI Y14.5M, 1982. 3 OUTLINE CONFORMS TO JEDEC OUTLINE TO-220AB. 2 CONTROLLING DIMENSION : INCH 4 HEATSINK & LEAD MEASUREMENTS DO NOT INCLUDE BURRS. TO-220AB Part Marking Information EXAMPLE : THIS IS AN IRF1010 WITH ASSEMBLY A INTERNATIONAL LOT CODE 9B1M PART NUMBER RECTIFIER IRF1010 LOGO 9246 9B 1M DATE CODE ASSEMBLY (YYWW) LOT CODE YY = YEAR WW = WEEK www.irf.com 9
