Datasheet IRF2804, IRF2804S, IRF2804L (International Rectifier) - 8

FabricanteInternational Rectifier
DescripciónHEXFET Power MOSFET
Páginas / Página12 / 8 — D.U.T. Fig 17. Fig 18a. Fig 18b
Formato / tamaño de archivoPDF / 292 Kb
Idioma del documentoInglés

D.U.T. Fig 17. Fig 18a. Fig 18b

D.U.T Fig 17 Fig 18a Fig 18b

Línea de modelo para esta hoja de datos

Versión de texto del documento

IRF2804/S/L Driver Gate Drive P.W.
D.U.T
Period D = P.W. Period + V * ƒ Circuit Layout Considerations GS=10V • Low Stray Inductance • Ground Plane - • Low Leakage Inductance Current Transformer D.U.T. ISD Waveform + Reverse ‚ Recovery Body Diode Forward „ Current Current - + - di/dt D.U.T. VDS Waveform Diode Recovery dv/dt  VDD • dv/dt controlled by R V G DD Re-Applied RG + Voltage • Driver same type as D.U.T. Body Diode Forward Drop • ISD controlled by Duty Factor "D" - Inductor Curent • D.U.T. - Device Under Test Ripple ≤ 5% ISD * VGS = 5V for Logic Level Devices

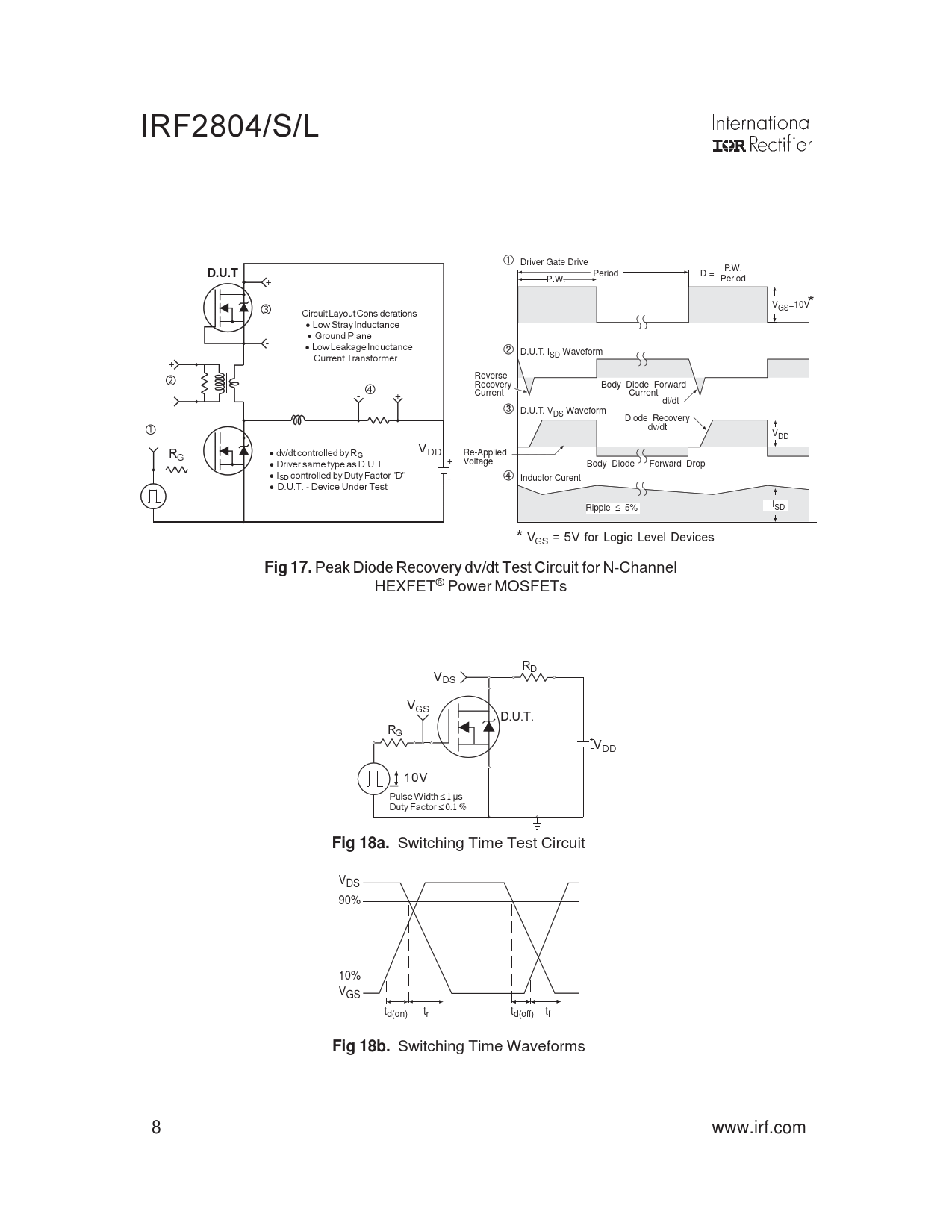

Fig 17.
Peak Diode Recovery dv/dt Test Circuit for N-Channel HEXFET® Power MOSFETs RD VDS VGS D.U.T. RG +-VDD 10V Pulse Width ≤ 1 µs Duty Factor ≤ 0.1 %
Fig 18a.
Switching Time Test Circuit VDS 90% 10% VGS td(on) tr td(off) tf
Fig 18b.
Switching Time Waveforms 8 www.irf.com
