Datasheet BC807 (Nexperia) - 9
| Fabricante | Nexperia |
| Descripción | 45 V, 500 mA PNP General-Purpose Transistors |
| Páginas / Página | 13 / 9 — Nexperia. BC807 series. 45 V, 500 mA PNP general-purpose transistors. 11. … |
| Revisión | 30062022 |
| Formato / tamaño de archivo | PDF / 313 Kb |
| Idioma del documento | Inglés |
Nexperia. BC807 series. 45 V, 500 mA PNP general-purpose transistors. 11. Package outline
Línea de modelo para esta hoja de datos
Versión de texto del documento

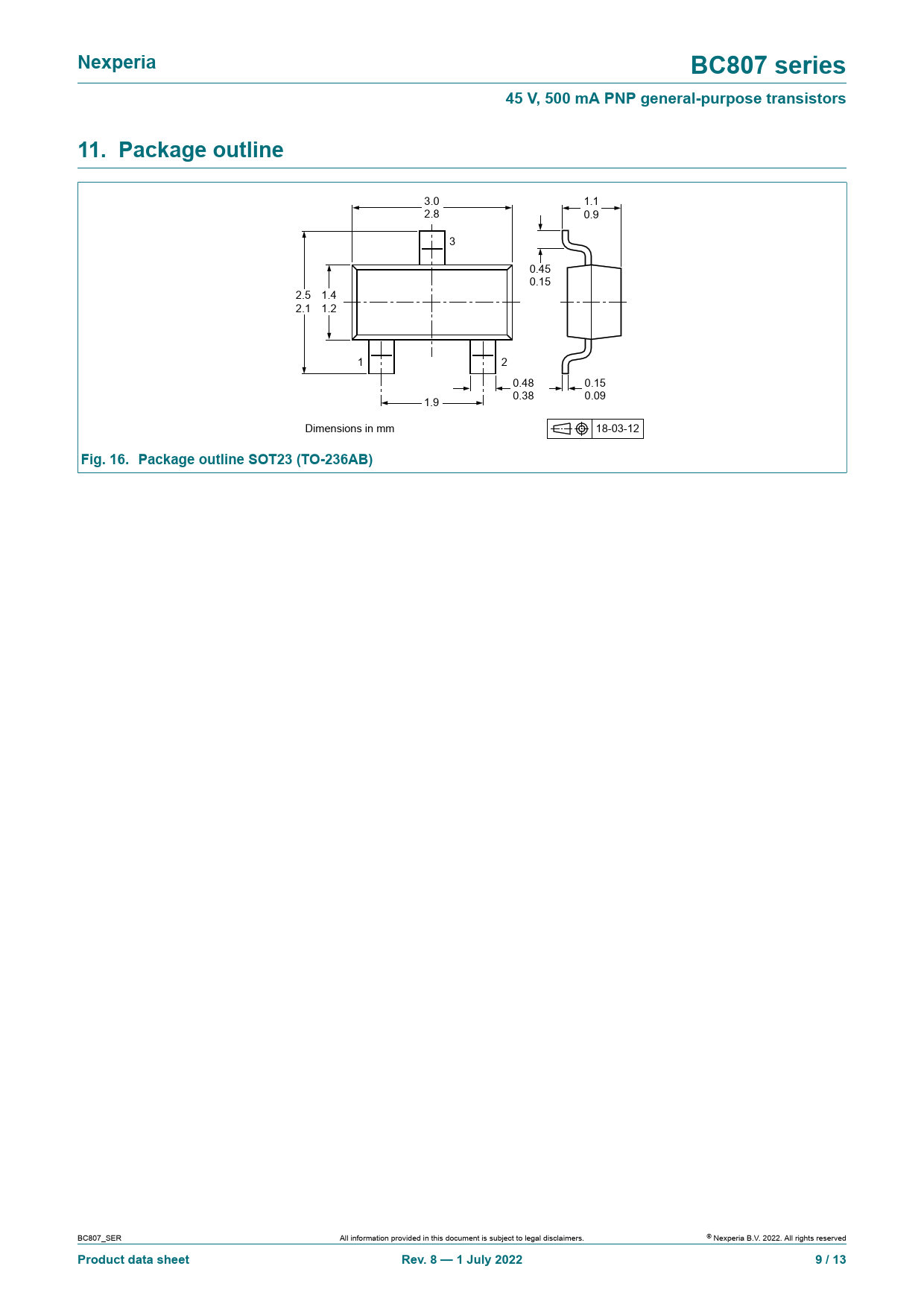

Nexperia BC807 series 45 V, 500 mA PNP general-purpose transistors 11. Package outline
3.0 1.1 2.8 0.9 3 0.45 0.15 2.5 1.4 2.1 1.2 1 2 0.48 0.15 1.9 0.38 0.09 Dimensions in mm 18-03-12
Fig. 16. Package outline SOT23 (TO-236AB)
