Datasheet BC807 (Nexperia) - 10
| Fabricante | Nexperia |
| Descripción | 45 V, 500 mA PNP General-Purpose Transistors |
| Páginas / Página | 13 / 10 — Nexperia. BC807 series. 45 V, 500 mA PNP general-purpose transistors. 12. … |
| Revisión | 30062022 |
| Formato / tamaño de archivo | PDF / 313 Kb |
| Idioma del documento | Inglés |

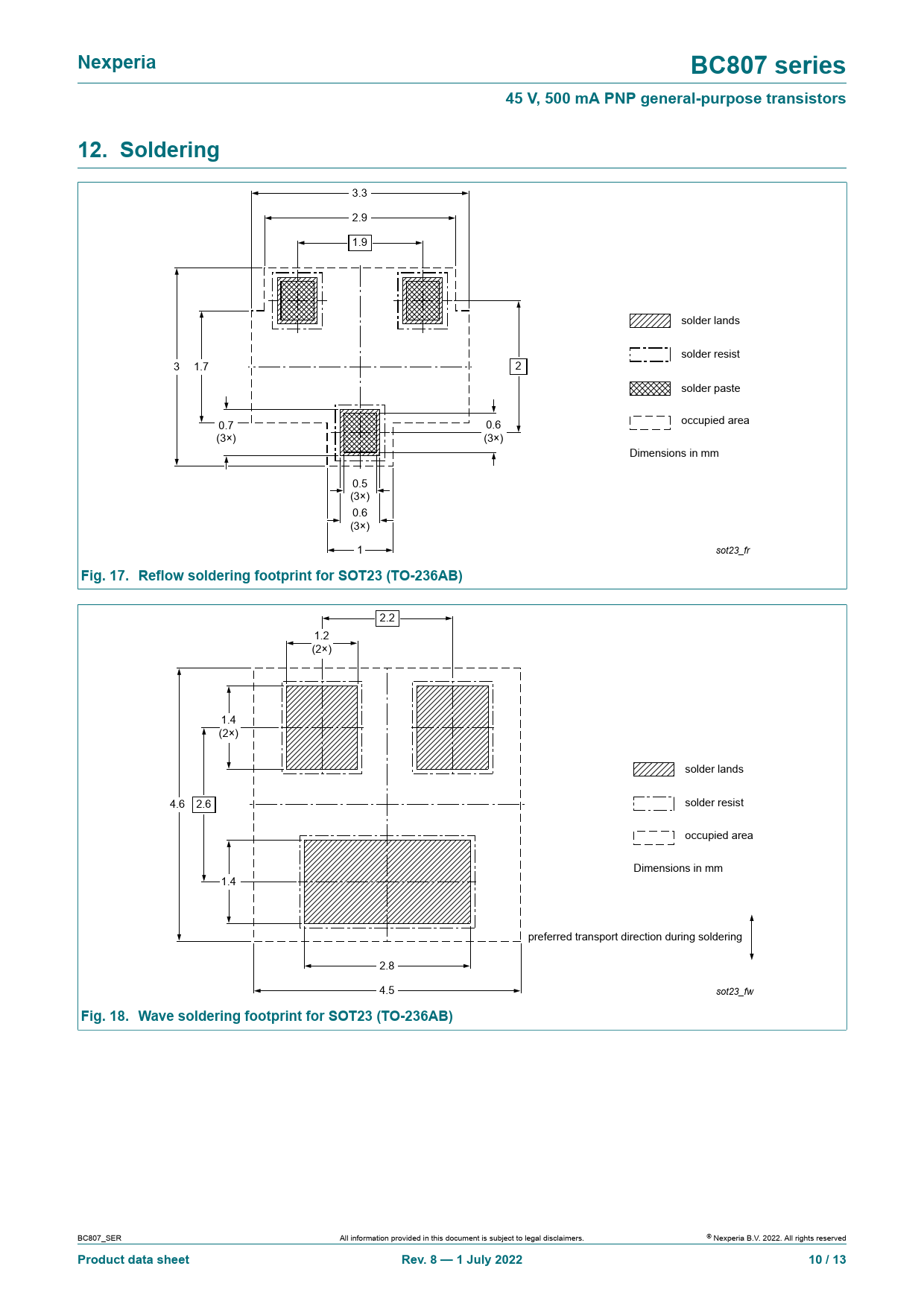

Nexperia. BC807 series. 45 V, 500 mA PNP general-purpose transistors. 12. Soldering
Línea de modelo para esta hoja de datos
Versión de texto del documento
Nexperia BC807 series 45 V, 500 mA PNP general-purpose transistors 12. Soldering
3.3 2.9 1.9 solder lands solder resist 3 1.7 2 solder paste occupied area 0.7 0.6 (3×) (3×) Dimensions in mm 0.5 (3×) 0.6 (3×) 1 sot23_fr
Fig. 17. Reflow soldering footprint for SOT23 (TO-236AB)
2.2 1.2 (2×) 1.4 (2×) solder lands 4.6 2.6 solder resist occupied area Dimensions in mm 1.4 preferred transport direction during soldering 2.8 4.5 sot23_fw
Fig. 18. Wave soldering footprint for SOT23 (TO-236AB)
BC807_SER All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2022. Al rights reserved
Product data sheet Rev. 8 — 1 July 2022 10 / 13
Document Outline 1. General description 2. Features and benefits 3. Applications 4. Quick reference data 5. Pinning information 6. Ordering information 7. Marking 8. Limiting values 9. Thermal characteristics 10. Characteristics 11. Package outline 12. Soldering 13. Revision history 14. Legal information Contents
3.3 2.9 1.9 solder lands solder resist 3 1.7 2 solder paste occupied area 0.7 0.6 (3×) (3×) Dimensions in mm 0.5 (3×) 0.6 (3×) 1 sot23_fr
Fig. 17. Reflow soldering footprint for SOT23 (TO-236AB)
2.2 1.2 (2×) 1.4 (2×) solder lands 4.6 2.6 solder resist occupied area Dimensions in mm 1.4 preferred transport direction during soldering 2.8 4.5 sot23_fw
Fig. 18. Wave soldering footprint for SOT23 (TO-236AB)
BC807_SER All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2022. Al rights reserved
Product data sheet Rev. 8 — 1 July 2022 10 / 13
Document Outline 1. General description 2. Features and benefits 3. Applications 4. Quick reference data 5. Pinning information 6. Ordering information 7. Marking 8. Limiting values 9. Thermal characteristics 10. Characteristics 11. Package outline 12. Soldering 13. Revision history 14. Legal information Contents
