Datasheet BC807 (Nexperia) - 3
| Fabricante | Nexperia |
| Descripción | 45 V, 500 mA PNP General-Purpose Transistors |
| Páginas / Página | 13 / 3 — Nexperia. BC807 series. 45 V, 500 mA PNP general-purpose transistors. 8. … |
| Revisión | 30062022 |
| Formato / tamaño de archivo | PDF / 313 Kb |
| Idioma del documento | Inglés |
Nexperia. BC807 series. 45 V, 500 mA PNP general-purpose transistors. 8. Limiting values Table 6. Limiting values. Symbol
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 3 link to page 3 link to page 3 link to page 3

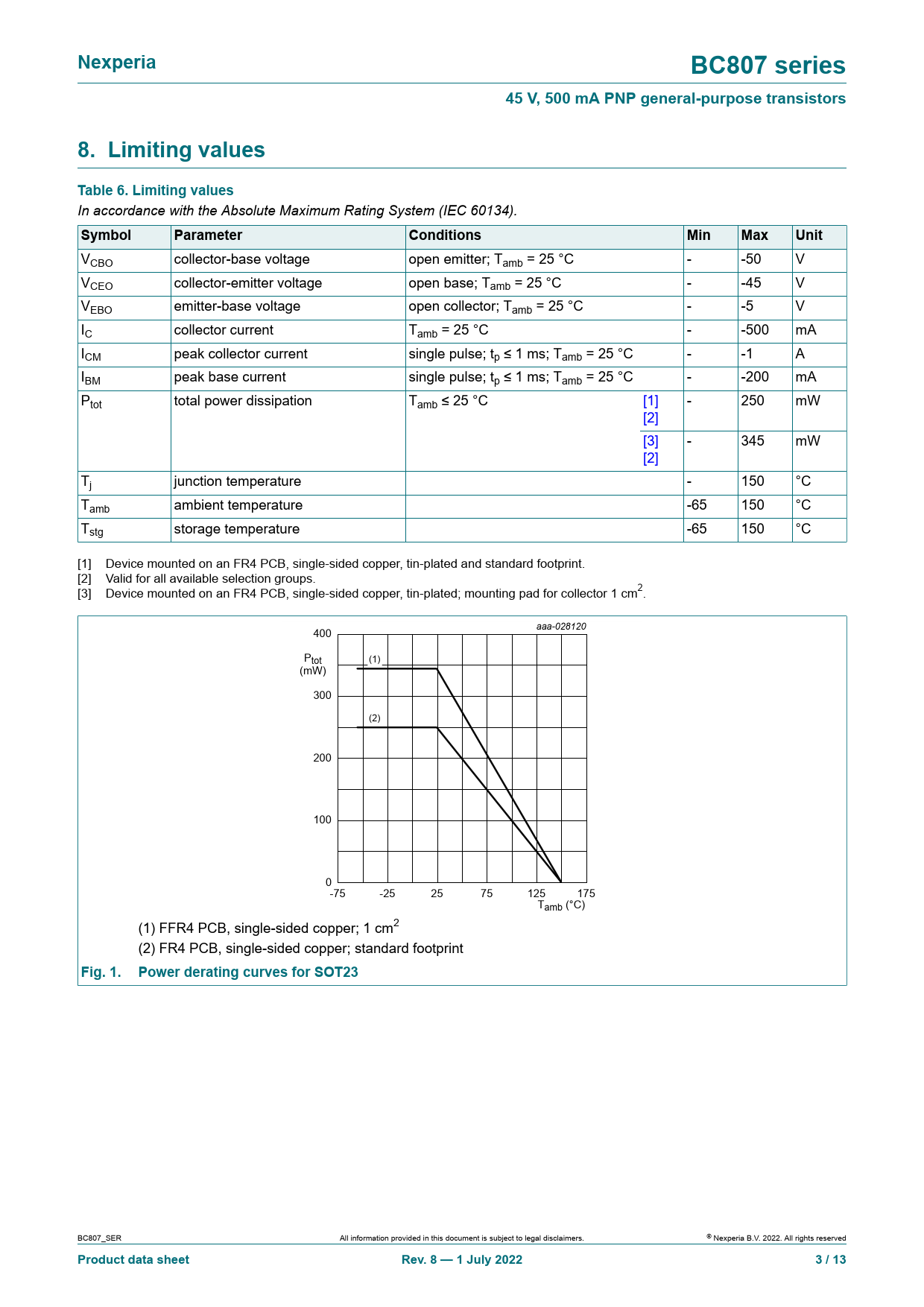

Nexperia BC807 series 45 V, 500 mA PNP general-purpose transistors 8. Limiting values Table 6. Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter Conditions Min Max Unit
VCBO collector-base voltage open emitter; Tamb = 25 °C - -50 V VCEO collector-emitter voltage open base; Tamb = 25 °C - -45 V VEBO emitter-base voltage open collector; Tamb = 25 °C - -5 V IC collector current Tamb = 25 °C - -500 mA ICM peak collector current single pulse; tp ≤ 1 ms; Tamb = 25 °C - -1 A IBM peak base current single pulse; tp ≤ 1 ms; Tamb = 25 °C - -200 mA Ptot total power dissipation Tamb ≤ 25 °C [1] - 250 mW [2] [3] - 345 mW [2] Tj junction temperature - 150 °C Tamb ambient temperature -65 150 °C Tstg storage temperature -65 150 °C [1] Device mounted on an FR4 PCB, single-sided copper, tin-plated and standard footprint. [2] Valid for al available selection groups. [3] Device mounted on an FR4 PCB, single-sided copper, tin-plated; mounting pad for col ector 1 cm2. aaa-028120 400 Ptot (1) (mW) 300 (2) 200 100 0-75 -25 25 75 125 175 Tamb (°C) (1) FFR4 PCB, single-sided copper; 1 cm2 (2) FR4 PCB, single-sided copper; standard footprint
Fig. 1. Power derating curves for SOT23
BC807_SER All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2022. Al rights reserved
Product data sheet Rev. 8 — 1 July 2022 3 / 13
