Mechanical Dimensions. Batwing. Lambertian
Línea de modelo para esta hoja de datos
Versión de texto del documento

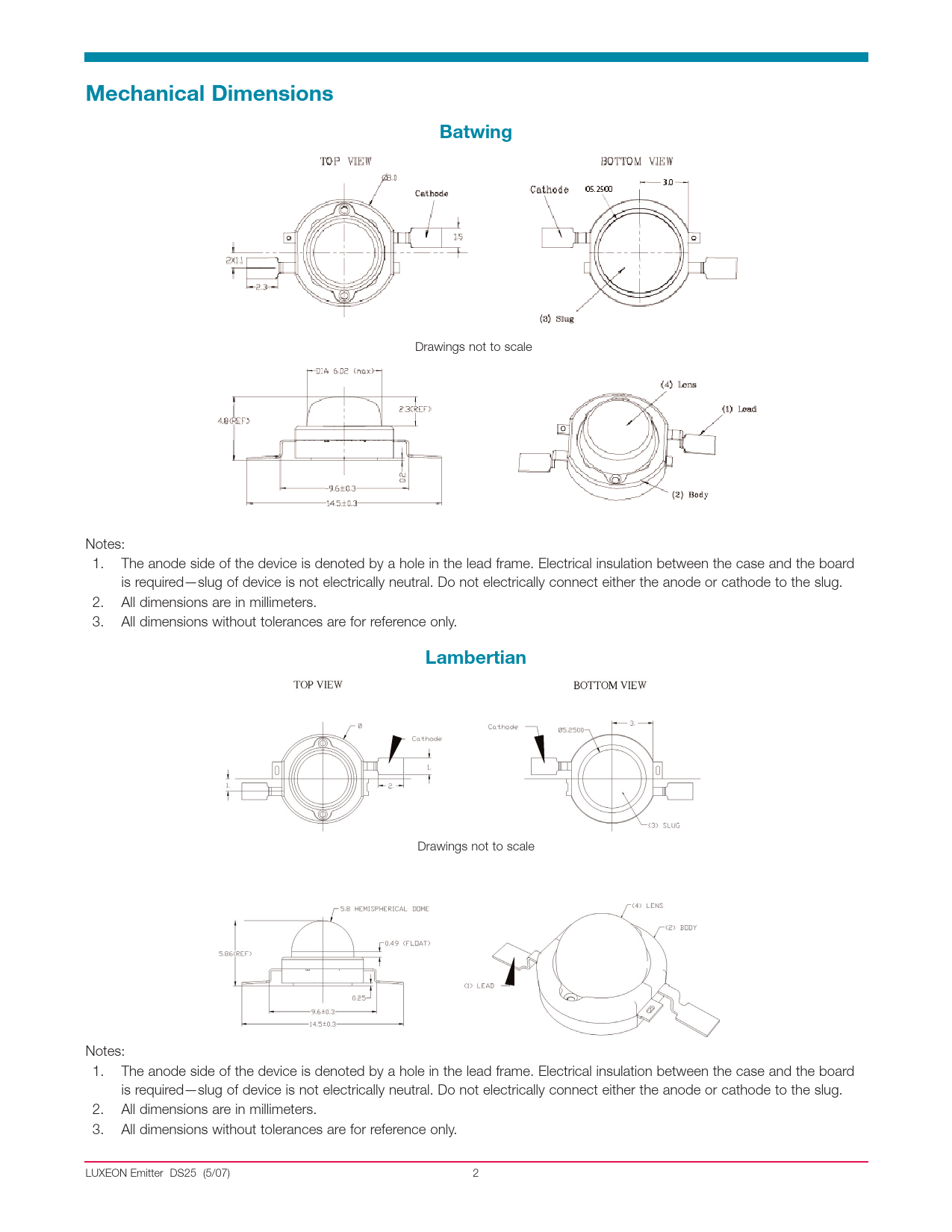

Mechanical Dimensions Batwing
Drawings not to scale Notes: 1. The anode side of the device is denoted by a hole in the lead frame. Electrical insulation between the case and the board is required—slug of device is not electrically neutral. Do not electrically connect either the anode or cathode to the slug. 2. All dimensions are in millimeters. 3. All dimensions without tolerances are for reference only.
Lambertian
Drawings not to scale Notes: 1. The anode side of the device is denoted by a hole in the lead frame. Electrical insulation between the case and the board is required—slug of device is not electrically neutral. Do not electrically connect either the anode or cathode to the slug. 2. All dimensions are in millimeters. 3. All dimensions without tolerances are for reference only. LUXEON Emitter DS25 (5/07) 2
Drawings not to scale Notes: 1. The anode side of the device is denoted by a hole in the lead frame. Electrical insulation between the case and the board is required—slug of device is not electrically neutral. Do not electrically connect either the anode or cathode to the slug. 2. All dimensions are in millimeters. 3. All dimensions without tolerances are for reference only.
Lambertian
Drawings not to scale Notes: 1. The anode side of the device is denoted by a hole in the lead frame. Electrical insulation between the case and the board is required—slug of device is not electrically neutral. Do not electrically connect either the anode or cathode to the slug. 2. All dimensions are in millimeters. 3. All dimensions without tolerances are for reference only. LUXEON Emitter DS25 (5/07) 2
