Datasheet LXHL (Lumileds) - 4

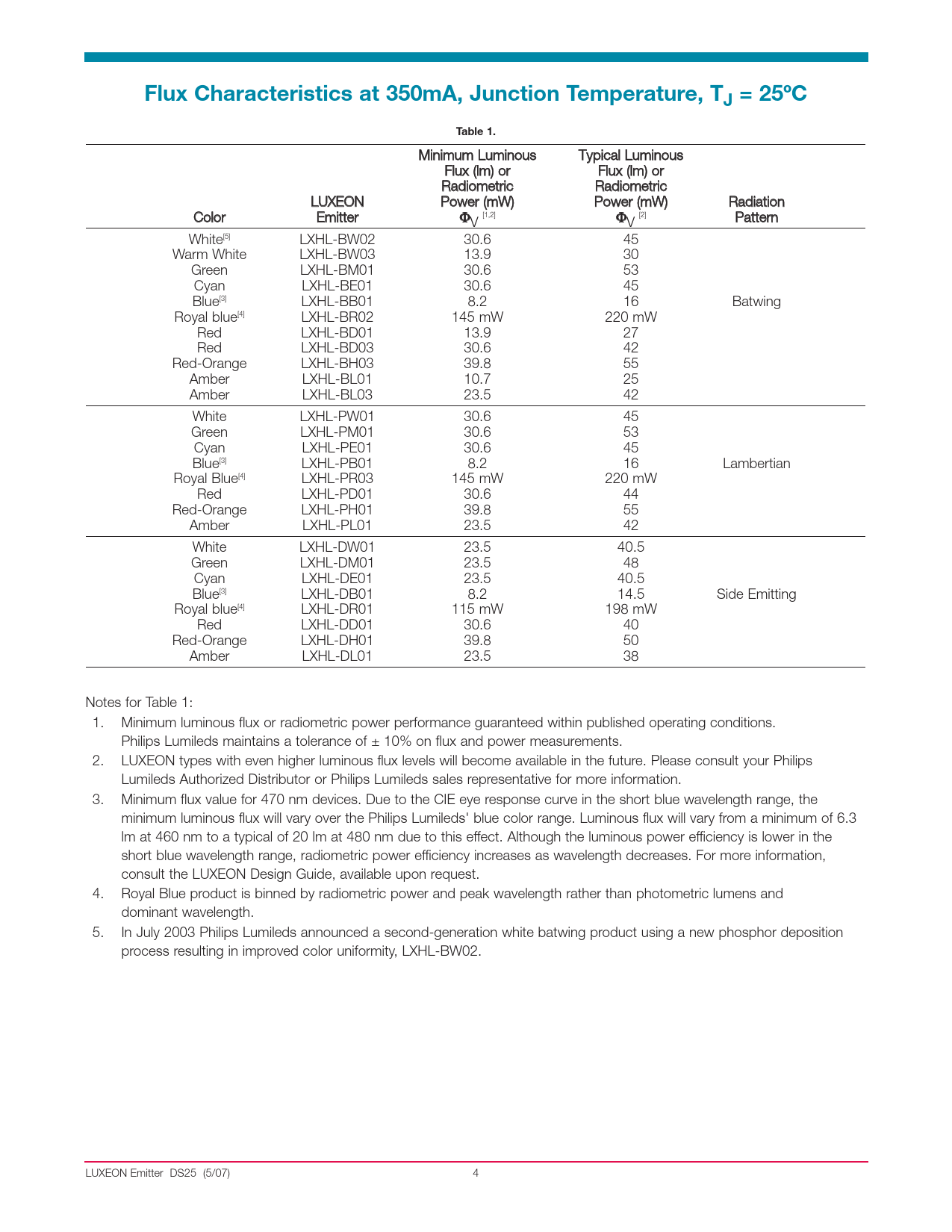

Flux Characteristics at 350mA, Junction Temperature, TJ = 25ºC Table 1.
Minimum Luminous Typical Luminous Flux (lm) or Flux (lm) or Radiometric Radiometric LUXEON Power (mW) Power (mW) Radiation Color Emitter Φ [1,2] [2] V ΦV Pattern White[5] LXHLBW02 30.6 45 Warm White LXHLBW03 13.9 30 Green LXHLBM01 30.6 53 Cyan LXHLBE01 30.6 45 Blue[3] LXHLBB01 8.2 16 Batwing Royal blue[4] LXHLBR02 145 mW 220 mW Red LXHLBD01 13.9 27 Red LXHLBD03 30.6 42 RedOrange LXHLBH03 39.8 55 Amber LXHLBL01 10.7 25 Amber LXHLBL03 23.5 42 White LXHLPW01 30.6 45 Green LXHLPM01 30.6 53 Cyan LXHLPE01 30.6 45 Blue[3] LXHLPB01 8.2 16 Lambertian Royal Blue[4] LXHLPR03 145 mW 220 mW Red LXHLPD01 30.6 44 RedOrange LXHLPH01 39.8 55 Amber LXHLPL01 23.5 42 White LXHLDW01 23.5 40.5 Green LXHLDM01 23.5 48 Cyan LXHLDE01 23.5 40.5 Blue[3] LXHLDB01 8.2 14.5 Side Emitting Royal blue[4] LXHLDR01 115 mW 198 mW Red LXHLDD01 30.6 40 RedOrange LXHLDH01 39.8 50 Amber LXHLDL01 23.5 38 Notes for Table 1: 1. Minimum luminous flux or radiometric power performance guaranteed within published operating conditions. Philips Lumileds maintains a tolerance of ± 10% on flux and power measurements. 2. LUXEON types with even higher luminous flux levels will become available in the future. Please consult your Philips Lumileds Authorized Distributor or Philips Lumileds sales representative for more information. 3. Minimum flux value for 470 nm devices. Due to the CIE eye response curve in the short blue wavelength range, the minimum luminous flux will vary over the Philips Lumileds' blue color range. Luminous flux will vary from a minimum of 6.3 lm at 460 nm to a typical of 20 lm at 480 nm due to this effect. Although the luminous power efficiency is lower in the short blue wavelength range, radiometric power efficiency increases as wavelength decreases. For more information, consult the LUXEON Design Guide, available upon request. 4. Royal Blue product is binned by radiometric power and peak wavelength rather than photometric lumens and dominant wavelength. 5. In July 2003 Philips Lumileds announced a secondgeneration white batwing product using a new phosphor deposition process resulting in improved color uniformity, LXHLBW02. LUXEON Emitter DS25 (5/07) 4
