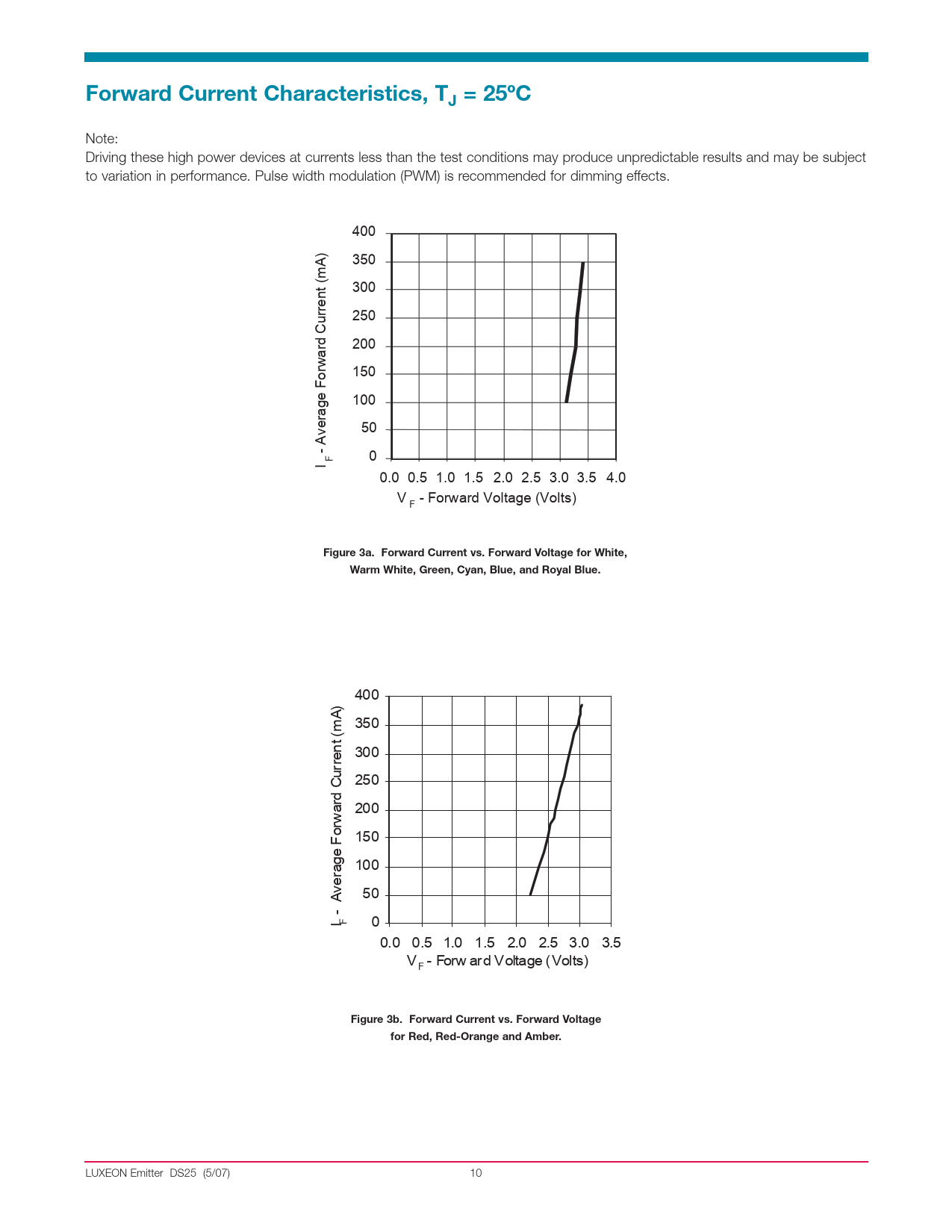

Forward Current Characteristics, TJ = 25ºC. Figure 3a. Forward Current vs. Forward Voltage for White,
Línea de modelo para esta hoja de datos
Versión de texto del documento
Forward Current Characteristics, TJ = 25ºC
Note: Driving these high power devices at currents less than the test conditions may produce unpredictable results and may be subject to variation in performance. Pulse width modulation (PWM) is recommended for dimming effects. 400 ) A 350 m 300 nt ( rre u 250 d C 200 ar rw 150 o 100 age F ver 50 A - 0 I F 0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 V F - Forward Voltage (Volts)
Figure 3a. Forward Current vs. Forward Voltage for White, Warm White, Green, Cyan, Blue, and Royal Blue.
400 ) A 350 m t ( 300 urren 250 C d ar 200 orw 150 e F 100 rag ve 50 A - I F 0 0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 V - Forw ard Voltage (Volts) F
Figure 3b. Forward Current vs. Forward Voltage for Red, RedOrange and Amber.
LUXEON Emitter DS25 (5/07) 10
