Datasheet ADG701L, ADG702L (Analog Devices) - 5
| Fabricante | Analog Devices |
| Descripción | CMOS Low Voltage, 2 Ω SPST Switches |
| Páginas / Página | 12 / 5 — Data Sheet. ADG701L/ADG702L. ABSOLUTE MAXIMUM RATINGS. Table 3. … |
| Revisión | A |
| Formato / tamaño de archivo | PDF / 300 Kb |
| Idioma del documento | Inglés |

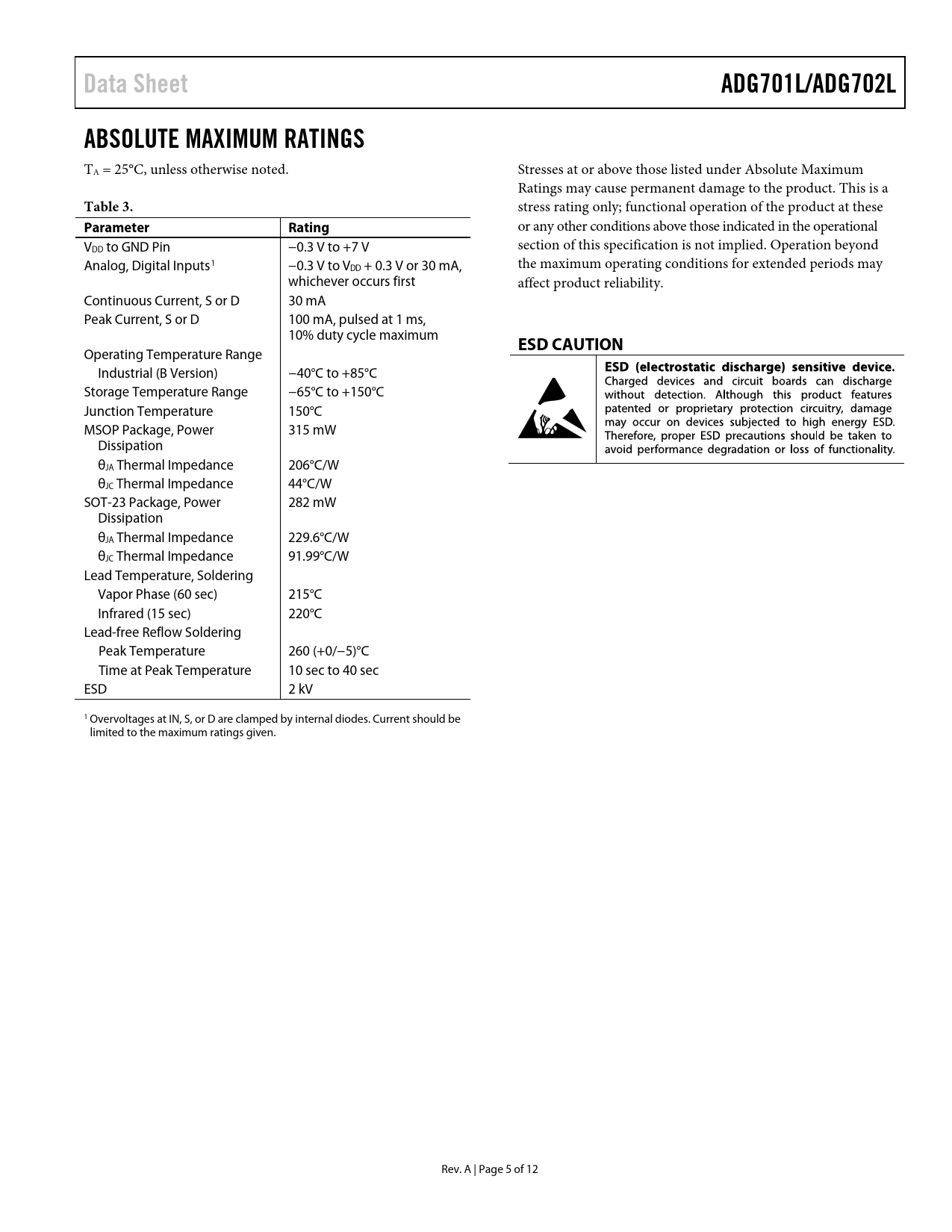

Data Sheet. ADG701L/ADG702L. ABSOLUTE MAXIMUM RATINGS. Table 3. Parameter. Rating. ESD CAUTION
Línea de modelo para esta hoja de datos
Versión de texto del documento
Data Sheet ADG701L/ADG702L ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted. Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a
Table 3.
stress rating only; functional operation of the product at these
Parameter Rating
or any other conditions above those indicated in the operational VDD to GND Pin −0.3 V to +7 V section of this specification is not implied. Operation beyond Analog, Digital Inputs1 −0.3 V to VDD + 0.3 V or 30 mA, the maximum operating conditions for extended periods may whichever occurs first affect product reliability. Continuous Current, S or D 30 mA Peak Current, S or D 100 mA, pulsed at 1 ms, 10% duty cycle maximum
ESD CAUTION
Operating Temperature Range Industrial (B Version) −40°C to +85°C Storage Temperature Range −65°C to +150°C Junction Temperature 150°C MSOP Package, Power 315 mW Dissipation θJA Thermal Impedance 206°C/W θ JC Thermal Impedance 44°C/W SOT-23 Package, Power 282 mW Dissipation θJA Thermal Impedance 229.6°C/W θJC Thermal Impedance 91.99°C/W Lead Temperature, Soldering Vapor Phase (60 sec) 215°C Infrared (15 sec) 220°C Lead-free Reflow Soldering Peak Temperature 260 (+0/−5)°C Time at Peak Temperature 10 sec to 40 sec ESD 2 kV 1 Overvoltages at IN, S, or D are clamped by internal diodes. Current should be limited to the maximum ratings given. Rev. A | Page 5 of 12 Document Outline Features Applications General Description Functional Block Diagrams Product Highlights Revision History Specifications Absolute Maximum Ratings ESD Caution Pin Configurations and Function Descriptions Typical Performance Characteristics Test Circuits Terminology Applications Information Supply Voltages Bandwidth Off Isolation Outline Dimensions Ordering Guide
