Datasheet ADG701L, ADG702L (Analog Devices) - 6
| Fabricante | Analog Devices |
| Descripción | CMOS Low Voltage, 2 Ω SPST Switches |
| Páginas / Página | 12 / 6 — ADG701L/ADG702L. Data Sheet. PIN CONFIGURATIONS AND FUNCTION … |
| Revisión | A |
| Formato / tamaño de archivo | PDF / 300 Kb |
| Idioma del documento | Inglés |

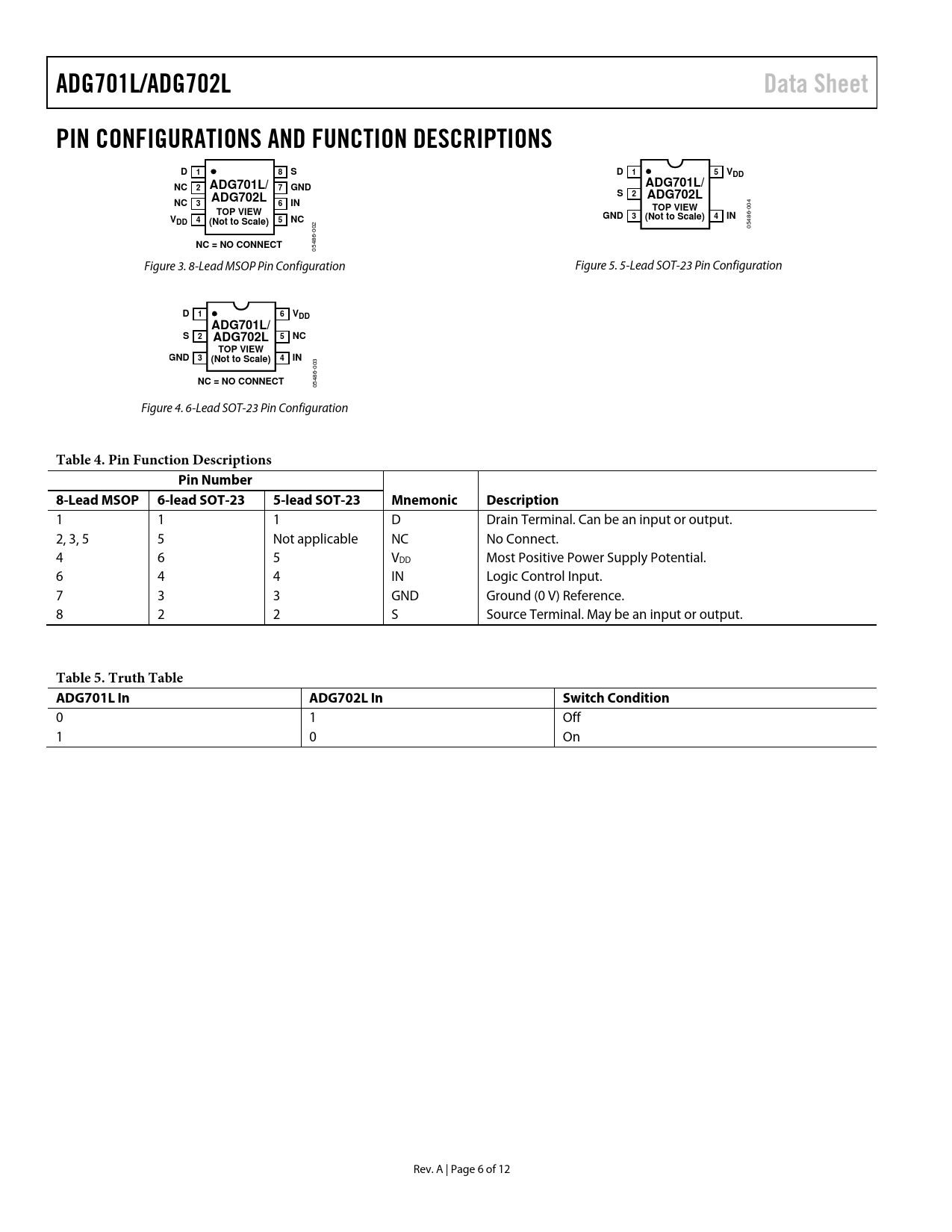

ADG701L/ADG702L. Data Sheet. PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS. VDD. ADG701L/. ADG701L/ 7 GND. ADG702L. TOP VIEW. GND
Línea de modelo para esta hoja de datos
Versión de texto del documento
ADG701L/ADG702L Data Sheet PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS D 1 8 S D 1 5 VDD ADG701L/ NC 2 ADG701L/ 7 GND ADG702L S 2 ADG702L NC 3 6 IN TOP VIEW TOP VIEW V GND 3 (Not to Scale) 4 IN DD 4 (Not to Scale) 5 NC
05486-004
NC = NO CONNECT
05486-002 Figure 3. 8-Lead MSOP Pin Configuration Figure 5. 5-Lead SOT-23 Pin Configuration
D 1 6 VDD ADG701L/ S 2 ADG702L 5 NC TOP VIEW GND 3 (Not to Scale) 4 IN NC = NO CONNECT
05486-003 Figure 4. 6-Lead SOT-23 Pin Configuration
Table 4. Pin Function Descriptions Pin Number 8-Lead MSOP 6-lead SOT-23 5-lead SOT-23 Mnemonic Description
1 1 1 D Drain Terminal. Can be an input or output. 2, 3, 5 5 Not applicable NC No Connect. 4 6 5 VDD Most Positive Power Supply Potential. 6 4 4 IN Logic Control Input. 7 3 3 GND Ground (0 V) Reference. 8 2 2 S Source Terminal. May be an input or output.
Table 5. Truth Table ADG701L In ADG702L In Switch Condition
0 1 Off 1 0 On Rev. A | Page 6 of 12 Document Outline Features Applications General Description Functional Block Diagrams Product Highlights Revision History Specifications Absolute Maximum Ratings ESD Caution Pin Configurations and Function Descriptions Typical Performance Characteristics Test Circuits Terminology Applications Information Supply Voltages Bandwidth Off Isolation Outline Dimensions Ordering Guide
