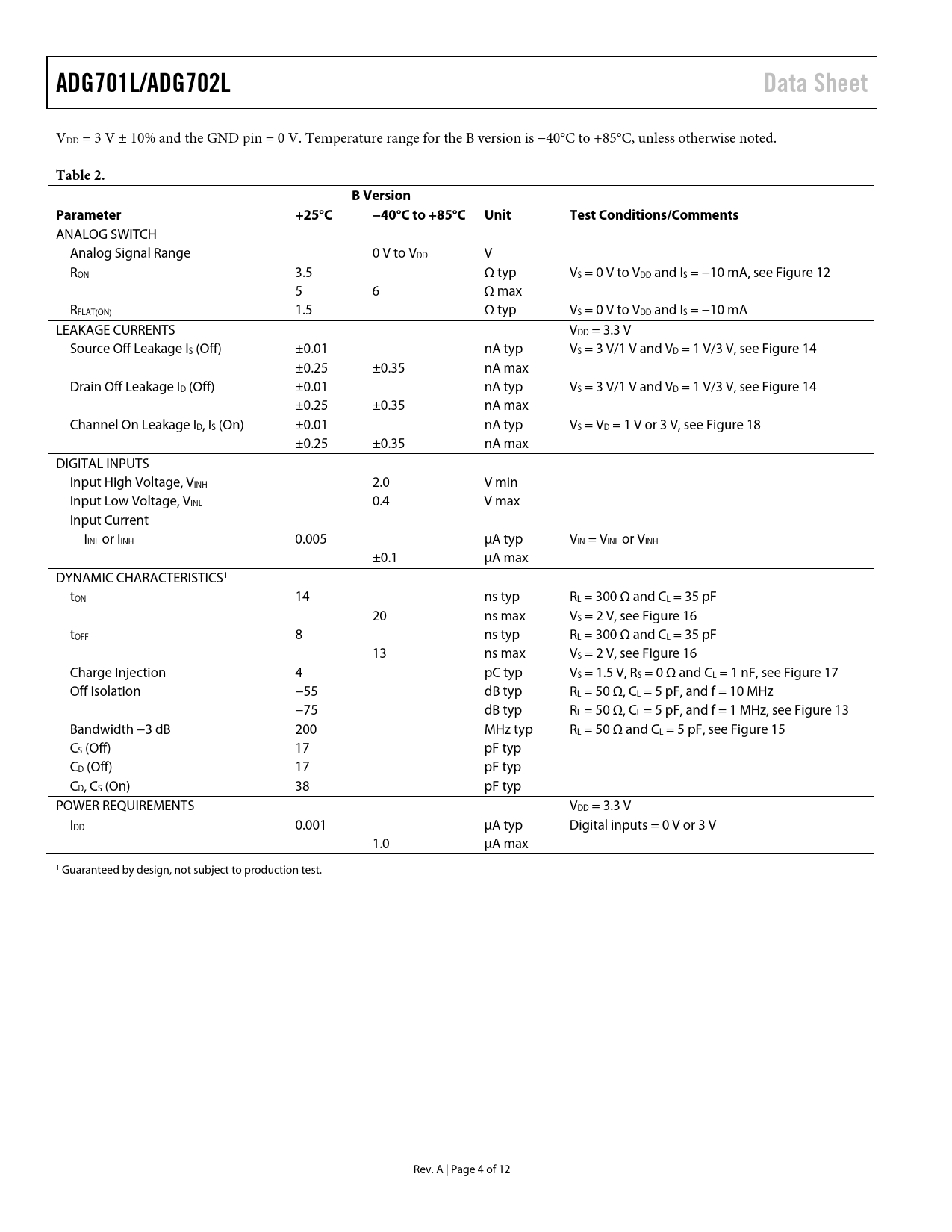

ADG701L/ADG702L. Data Sheet. Table 2. B. Version. Parameter. +25°C. −40°C to +85°C. Unit. Test Conditions/Comments
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 8 link to page 8 link to page 8 link to page 8 link to page 8 link to page 8 link to page 8 link to page 8 link to page 8
ADG701L/ADG702L Data Sheet
VDD = 3 V ± 10% and the GND pin = 0 V. Temperature range for the B version is −40°C to +85°C, unless otherwise noted.
Table 2. B Version Parameter +25°C −40°C to +85°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 V to VDD V RON 3.5 Ω typ VS = 0 V to VDD and IS = −10 mA, see Figure 12 5 6 Ω max RFLAT(ON) 1.5 Ω typ VS = 0 V to VDD and IS = −10 mA LEAKAGE CURRENTS VDD = 3.3 V Source Off Leakage IS (Off) ±0.01 nA typ VS = 3 V/1 V and VD = 1 V/3 V, see Figure 14 ±0.25 ±0.35 nA max Drain Off Leakage ID (Off) ±0.01 nA typ VS = 3 V/1 V and VD = 1 V/3 V, see Figure 14 ±0.25 ±0.35 nA max Channel On Leakage ID, IS (On) ±0.01 nA typ VS = VD = 1 V or 3 V, see Figure 18 ±0.25 ±0.35 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.4 V max Input Current IINL or IINH 0.005 μA typ VIN = VINL or VINH ±0.1 μA max DYNAMIC CHARACTERISTICS1 tON 14 ns typ RL = 300 Ω and CL = 35 pF 20 ns max VS = 2 V, see Figure 16 tOFF 8 ns typ RL = 300 Ω and CL = 35 pF 13 ns max VS = 2 V, see Figure 16 Charge Injection 4 pC typ VS = 1.5 V, RS = 0 Ω and CL = 1 nF, see Figure 17 Off Isolation −55 dB typ RL = 50 Ω, CL = 5 pF, and f = 10 MHz −75 dB typ RL = 50 Ω, CL = 5 pF, and f = 1 MHz, see Figure 13 Bandwidth −3 dB 200 MHz typ RL = 50 Ω and CL = 5 pF, see Figure 15 CS (Off) 17 pF typ CD (Off) 17 pF typ CD, CS (On) 38 pF typ POWER REQUIREMENTS VDD = 3.3 V IDD 0.001 μA typ Digital inputs = 0 V or 3 V 1.0 μA max 1 Guaranteed by design, not subject to production test. Rev. A | Page 4 of 12 Document Outline Features Applications General Description Functional Block Diagrams Product Highlights Revision History Specifications Absolute Maximum Ratings ESD Caution Pin Configurations and Function Descriptions Typical Performance Characteristics Test Circuits Terminology Applications Information Supply Voltages Bandwidth Off Isolation Outline Dimensions Ordering Guide
