Datasheet ADG701L, ADG702L (Analog Devices) - 3
| Fabricante | Analog Devices |
| Descripción | CMOS Low Voltage, 2 Ω SPST Switches |
| Páginas / Página | 12 / 3 — Data Sheet. ADG701L/ADG702L. SPECIFICATIONS. Table 1. B. Version. … |
| Revisión | A |
| Formato / tamaño de archivo | PDF / 300 Kb |
| Idioma del documento | Inglés |

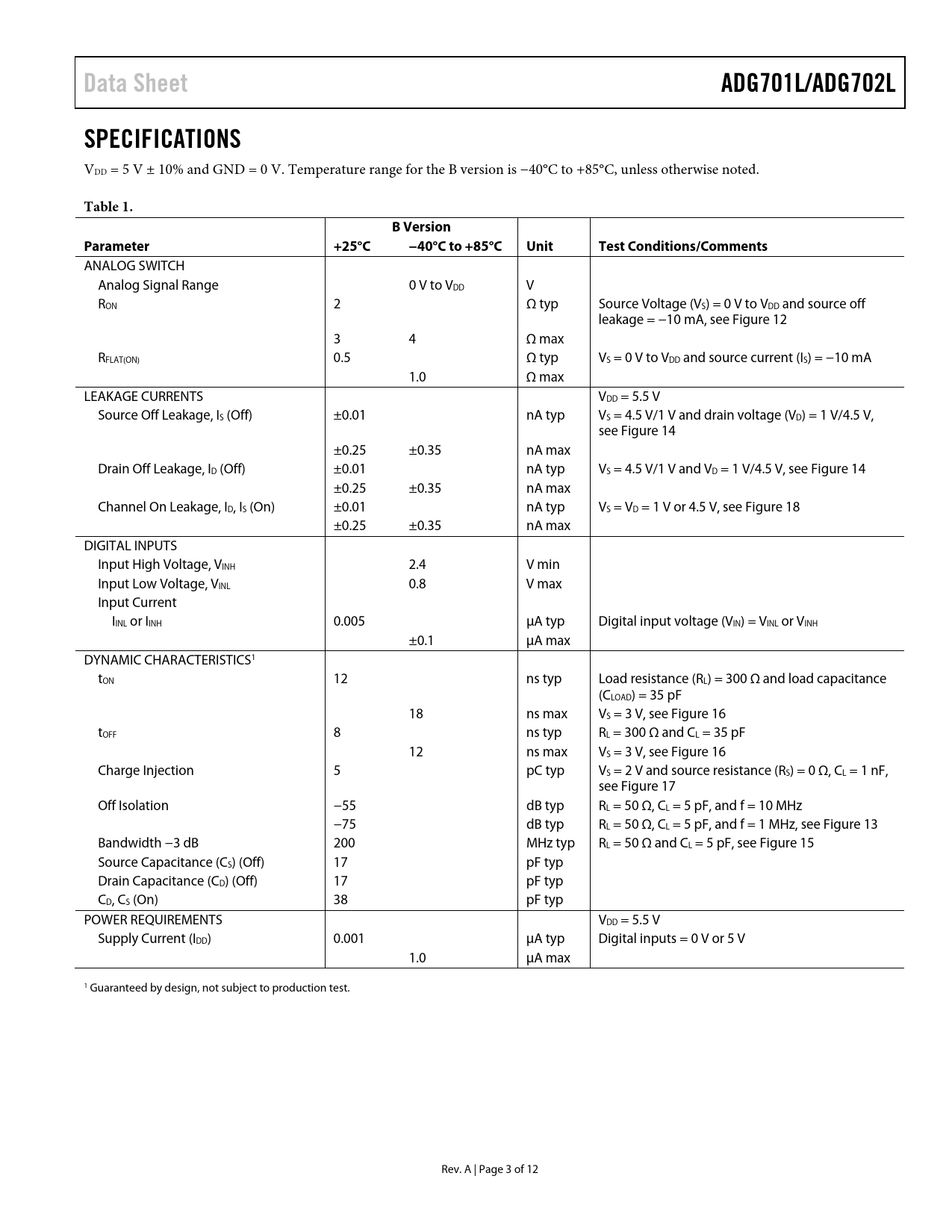

Data Sheet. ADG701L/ADG702L. SPECIFICATIONS. Table 1. B. Version. Parameter. +25°C. −40°C to +85°C. Unit. Test Conditions/Comments
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 8 link to page 8 link to page 8 link to page 8 link to page 8 link to page 8 link to page 8 link to page 8 link to page 8
Data Sheet ADG701L/ADG702L SPECIFICATIONS
VDD = 5 V ± 10% and GND = 0 V. Temperature range for the B version is −40°C to +85°C, unless otherwise noted.
Table 1. B Version Parameter +25°C −40°C to +85°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 V to VDD V RON 2 Ω typ Source Voltage (VS) = 0 V to VDD and source off leakage = −10 mA, see Figure 12 3 4 Ω max RFLAT(ON) 0.5 Ω typ VS = 0 V to VDD and source current (IS) = −10 mA 1.0 Ω max LEAKAGE CURRENTS VDD = 5.5 V Source Off Leakage, IS (Off) ±0.01 nA typ VS = 4.5 V/1 V and drain voltage (VD) = 1 V/4.5 V, see Figure 14 ±0.25 ±0.35 nA max Drain Off Leakage, ID (Off) ±0.01 nA typ VS = 4.5 V/1 V and VD = 1 V/4.5 V, see Figure 14 ±0.25 ±0.35 nA max Channel On Leakage, ID, IS (On) ±0.01 nA typ VS = VD = 1 V or 4.5 V, see Figure 18 ±0.25 ±0.35 nA max DIGITAL INPUTS Input High Voltage, VINH 2.4 V min Input Low Voltage, VINL 0.8 V max Input Current IINL or IINH 0.005 μA typ Digital input voltage (VIN) = VINL or VINH ±0.1 μA max DYNAMIC CHARACTERISTICS1 tON 12 ns typ Load resistance (RL) = 300 Ω and load capacitance (CLOAD) = 35 pF 18 ns max VS = 3 V, see Figure 16 tOFF 8 ns typ RL = 300 Ω and CL = 35 pF 12 ns max VS = 3 V, see Figure 16 Charge Injection 5 pC typ VS = 2 V and source resistance (RS) = 0 Ω, CL = 1 nF, see Figure 17 Off Isolation −55 dB typ RL = 50 Ω, CL = 5 pF, and f = 10 MHz −75 dB typ RL = 50 Ω, CL = 5 pF, and f = 1 MHz, see Figure 13 Bandwidth −3 dB 200 MHz typ RL = 50 Ω and CL = 5 pF, see Figure 15 Source Capacitance (CS) (Off) 17 pF typ Drain Capacitance (CD) (Off) 17 pF typ CD, CS (On) 38 pF typ POWER REQUIREMENTS VDD = 5.5 V Supply Current (IDD) 0.001 μA typ Digital inputs = 0 V or 5 V 1.0 μA max 1 Guaranteed by design, not subject to production test. Rev. A | Page 3 of 12 Document Outline Features Applications General Description Functional Block Diagrams Product Highlights Revision History Specifications Absolute Maximum Ratings ESD Caution Pin Configurations and Function Descriptions Typical Performance Characteristics Test Circuits Terminology Applications Information Supply Voltages Bandwidth Off Isolation Outline Dimensions Ordering Guide
Data Sheet ADG701L/ADG702L SPECIFICATIONS
VDD = 5 V ± 10% and GND = 0 V. Temperature range for the B version is −40°C to +85°C, unless otherwise noted.
Table 1. B Version Parameter +25°C −40°C to +85°C Unit Test Conditions/Comments
